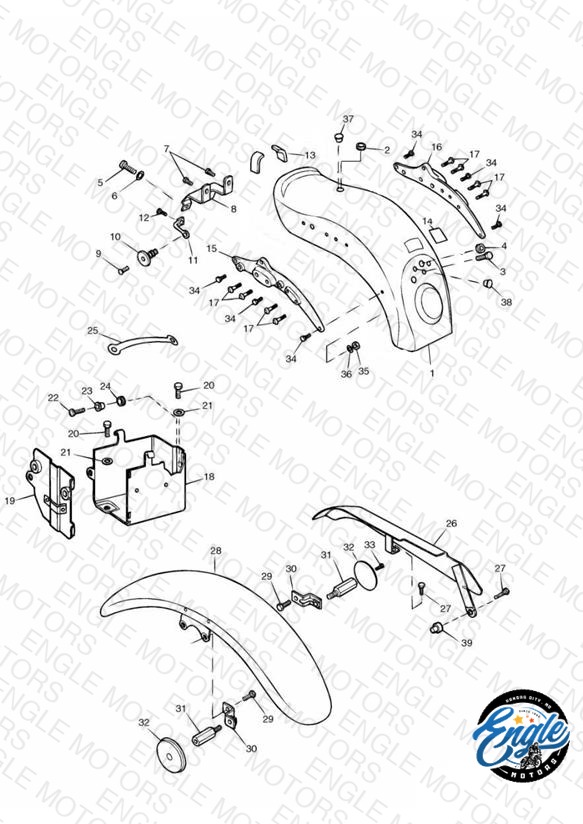

Triumph Adventurer Mudguards/Chainguard/Battery Box — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2303413-PG Rear Mudguard, Black	Rear Mudguard, Black Jet Black	1	$430.45	Obsolete	View Details
2	T3020450 Grommet	Grommet	1	$7.13	Obsolete	View Details
3	T3330550 Screw M6 x 16, S/S, Large HD	Screw M6 x 16, S/S, Large HD M6 x 12mm - * PART NO LONGER AVAILABLE *	1	$3.23	Obsolete	View Details
4	T3020370 Grommet	Grommet	1	$1.06	Obsolete	View Details
5	T3330635 Screw, M5 X 16, Plastic	Screw, M5 X 16, Plastic M5 x 16mm AU,SE,AR,GR,HK,PT,JP	3	$0.38	Backorder — Mid August 2026	3
6	3550055-T0301 Washer, Plastic	Washer, Plastic AU,SE,AR,GR,HK,PT,JP	2	$0.89	Available to order	2 Ships within 3–7 business days
7	T3203222 Bolt, HHF, M6 x 12, Slv	Bolt, HHF, M6 x 12, Slv	2	$1.72	Out of Stock	Notify Me
8	T2300249 Bracket number plate	Bracket number plate All markets except US,CA All vins SG 110500 »	1	$15.09	Obsolete	View Details
8	T2300250 Bracket number plate	Bracket number plate US,CA All vins - SG » 110499	1	$24.36	Obsolete	View Details
10	T2700284 Reflex Reflector	Reflex Reflector US,CA All vins - SG » 110499	2	$3.33	Available to order	2 Ships within 3–7 business days
11	T2300424 Bracket	Bracket Part No Longer Available	2	$10.02	Obsolete	View Details
12	T3330085 Screw, Torx	Screw, Torx M5 x 16mm US,CA All vins - SG » 110499 Black	2	$0.90	Obsolete	View Details
13	T3660109 Foam pad	Foam pad	2	$1.13	Available to order	2 Ships within 3–7 business days
14	T3660124 Pad	Pad	2	$2.96	Obsolete	View Details
15	T2071059 Support	Support RH	1	$209.61	Obsolete	View Details
16	T2071069 Support	Support LH	1	$209.61	Obsolete	View Details
17	T3200601 Bolt, HHF, M8 x 40, Slv	Bolt, HHF, M8 x 40, Slv	8	$3.04	Available to order	8 Ships within 3–7 business days
18	T2500092 Battery box assembly	Battery box assembly	1	$29.51	Obsolete	View Details
19	T2500071 Door	Door	1	$28.96	Available to order	1 Ships within 3–7 business days
20	T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv	Screw, Pan/Hd, Tx, M6 x 16, Slv M6 x 16mm	2	$0.97	Available to order	2 Ships within 3–7 business days
21	T3551283 Washer, M10, 10.5x18x1.6, Slv	Washer, M10, 10.5x18x1.6, Slv	2	$2.00	Available to order	2 Ships within 3–7 business days
22	T3331234 Screw, Torx, P/H, M6 x 20, Slv	Screw, Torx, P/H, M6 x 20, Slv	1	$5.30	Available to order	1 Ships within 3–7 business days
23	T3010702 Flanged Sleeve, 6.4 x 10 x 8.5	Flanged Sleeve, 6.4 x 10 x 8.5	1	$5.78	Available to order	1 Ships within 3–7 business days
24	T3020153 Grommet, 13 x 3 x 10	Grommet, 13 x 3 x 10	1	$1.91	Available to order	1 Ships within 3–7 business days
25	T2501740 Battery Strap	Battery Strap	1	$9.97	Available to order	1 Ships within 3–7 business days
26	T2058018 Chainguard	Chainguard Black	1	$64.08	Obsolete	View Details
27	T3330727 Screw, But/Hd, M6 x 20, Slv	Screw, But/Hd, M6 x 20, Slv	2	$3.39	Available to order	2 Ships within 3–7 business days
28	T2303405-PG Front mudguard	Front mudguard Jet Black	1	$223.10	Obsolete	View Details
29	T3201228 Bolt, HHF, M8 x 14, Slv	Bolt, HHF, M8 x 14, Slv	4	$2.74	Available to order	4 Ships within 3–7 business days
30	T2070854 Bracket, Hose, Front	Bracket, Hose, Front	1	$2.44	Obsolete	View Details
31	T2080538 Extension piece	Extension piece US,CA All vins - SG » 110499	2	$5.45	Obsolete	View Details
32	T2700283 Amber reflector	Amber reflector US,CA All vins - SG » 110499	2	$6.45	Available to order	2 Ships within 3–7 business days
33	T3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv	Screw, Pan/Hd, Tx, M5 x 20, Slv US,CA All vins - SG » 110499	2	$2.63	Available to order	2 Ships within 3–7 business days
34	T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv	Bolt, HHF, Lghtd, M8 x 30, Slv	6	$1.21	Available to order	6 Ships within 3–7 business days
35	T3350004 Locknut, Flanged, M8 x 1.25	Locknut, Flanged, M8 x 1.25 M8	14	$2.45	Available to order	14 Ships within 3–7 business days
36	T3555033 Washer, 8.4 x 24 x 2	Washer, 8.4 x 24 x 2	12	$2.74	Available to order	12 Ships within 3–7 business days
37	T3450201 Plug	Plug 20mm Black	1	$1.32	Obsolete	View Details
38	T3450202 Plug	Plug 10mm Black	2	$1.05	Obsolete	View Details
39	T3350210 Threaded Insert, M6, Open Ended	Threaded Insert, M6, Open Ended M6	3	$1.62	Available to order	3 Ships within 3–7 business days
