Triumph Tiger 900 - Bond Edition Handlebars & Switches — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

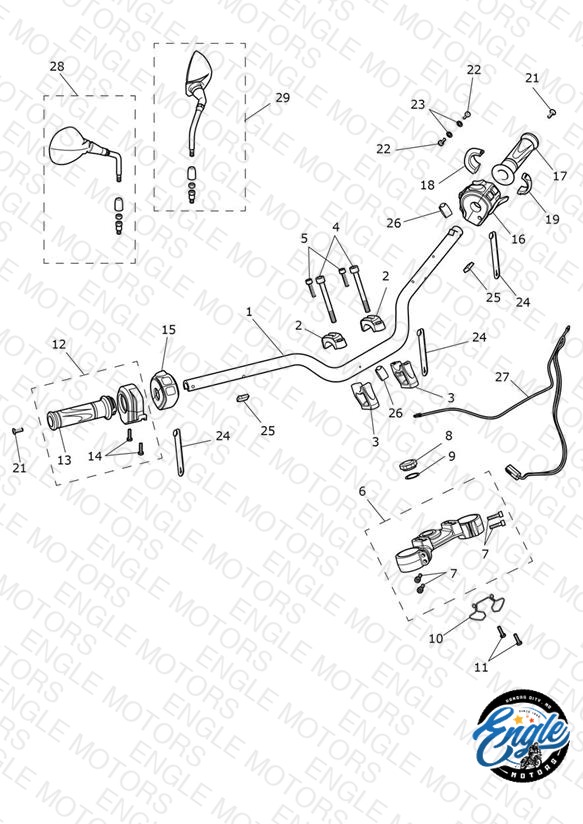

#	Part Number	Description	Qty	Price	Status
1	T2043193 Handlebar, Tapered, Black	Handlebar, Tapered, Black	1	$185.25	Backorder — Mid August 2026	1
2	T2044951 Clamp, Handlebar, Upper	Clamp, Handlebar, Upper	2	$190.11	Out of Stock	Notify Me
3	T2048901 Clamp, Handlebar, Lower	Clamp, Handlebar, Lower	2	$61.48	Available to order	2 Ships within 3–7 business days
4	T3050154 Bolt, Cap/Hd, M10 x 90, Slv	Bolt, Cap/Hd, M10 x 90, Slv	2	$7.42	Available to order	2 Ships within 3–7 business days
5	T3050323 Screw, Cap/Hd, M8 x 30, Slv	Screw, Cap/Hd, M8 x 30, Slv	2	$4.74	Available to order	2 Ships within 3–7 business days
6	T2043048 Upper Yoke Assembly	Upper Yoke Assembly	1	$272.68	Available to order	1 Ships within 3–7 business days
7	T3050183 Screw, Cap/Hd, M8 x 1.25 x 25, SS	Screw, Cap/Hd, M8 x 1.25 x 25, SS	2	$2.31	Available to order	2 Ships within 3–7 business days
8	T2040442 Nut, Upper Yoke	Nut, Upper Yoke	1	$25.08	Available to order	1 Ships within 3–7 business days
9	T3551551 Washer, 27.5 x 35 x 0.5	Washer, 27.5 x 35 x 0.5	2	$1.79	Backorder — Mid August 2026	2
10	T2042949 Wire Guide, Upper Yoke	Wire Guide, Upper Yoke	1	$7.73	Backorder — Early August 2026	1
11	T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc	Screw, Pan/Hd, Tx, M6 x 12, Enc	2	$1.40	Available to order	2 Ships within 3–7 business days
12	T2045224 Sensor, AP, Cruise, Heated	Sensor, AP, Cruise, Heated	1	$224.15	Available to order	1 Ships within 3–7 business days
13	T2042078 Heated Grip, RH	Heated Grip, RH	1	$176.68	Available to order	1 Ships within 3–7 business days
14	T3050314 Bolt, M5 x 20	Bolt, M5 x 20	2	$7.02	Available to order	2 Ships within 3–7 business days
15	T2044829 Switchcube, RH	Switchcube, RH	1	$276.34	Available to order	1 Ships within 3–7 business days
16	T2049716 Switchcube, LH	Switchcube, LH All Except CA, CN, JP or US	1	$366.38	Out of Stock	Notify Me
16	T2044782 Switchcube, LH	Switchcube, LH CA, CN, JP or US Only	1	$366.38	Available to order	1 Ships within 3–7 business days
17	T2046369 Heated Grip, LH	Heated Grip, LH	1	$176.72	Available to order	1 Ships within 3–7 business days
18	T2043692 Heated Grip, Housing, Switch	Heated Grip, Housing, Switch	1	$7.38	Available to order	1 Ships within 3–7 business days
19	T2043694 Heated Grip, Housing, Rear	Heated Grip, Housing, Rear	1	$7.30	Available to order	1 Ships within 3–7 business days
21	T3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk	Screw, S/Tap, TX, 3 x 1.35 x 12, Blk	2	$5.02	Available to order	2 Ships within 3–7 business days
22	T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD	Screw, S/Tap, Pan/Hd, M4 x 10, HD	2	$7.14	Available to order	2 Ships within 3–7 business days
23	T3550500 Washer, 4.3 x 9.0 x 0.8	Washer, 4.3 x 9.0 x 0.8	2	$1.72	Available to order	2 Ships within 3–7 business days
24	T3700212 Band, Rubber	Band, Rubber	2	$3.29	Available to order	2 Ships within 3–7 business days
25	T2049701 Switchcube Mounting Block	Switchcube Mounting Block	2	$5.30	Available to order	2 Ships within 3–7 business days
26	T3700259 Rubber Band, 43mm	Rubber Band, 43mm	2	$3.90	Available to order	2 Ships within 3–7 business days
27	T2502215 Subharness, Heated Grips	Subharness, Heated Grips	1	$37.72	Available to order	1 Ships within 3–7 business days
28	T2060185 Mirror Assy, RH	Mirror Assy, RH	1	$134.99	Available to order	1 Ships within 3–7 business days
29	T2060175 Mirror Assy, LH	Mirror Assy, LH	1	$134.99	Available to order	1 Ships within 3–7 business days
