Triumph Tiger Explorer Handlebars & Switches — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

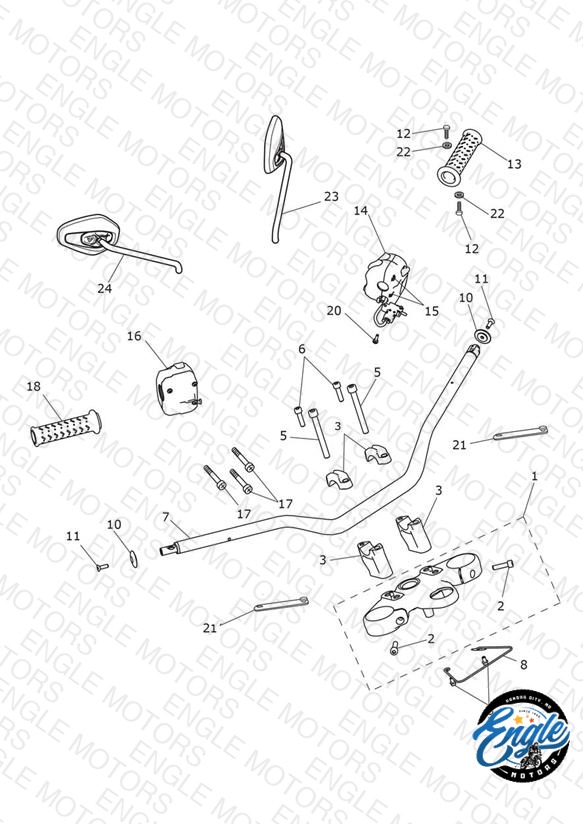

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2041398 Upper Yoke Assembly	Upper Yoke Assembly	1	$297.51	Out of Stock	Notify Me
2	T3050323 Screw, Cap/Hd, M8 x 30, Slv	Screw, Cap/Hd, M8 x 30, Slv	2	$4.74	Available to order	2 Ships within 3–7 business days
3	T2048951 Handlebar Clamp Kit	Handlebar Clamp Kit Kit contains 1 x upper & 1 x lower clamp	2	$104.57	Out of Stock	Notify Me
5	T3050154 Bolt, Cap/Hd, M10 x 90, Slv	Bolt, Cap/Hd, M10 x 90, Slv	2	$7.42	Available to order	2 Ships within 3–7 business days
7	T2042745 Handlebar, Aluminium, Tapered	Handlebar, Aluminium, Tapered	1	$205.34	Out of Stock	Notify Me
8	T2041386 Wire Guide	Wire Guide	1	$6.73	Out of Stock	Notify Me
9	T3205061 Bolt, HHF, Lghtd, M6 X 10, Slv	Bolt, HHF, Lghtd, M6 X 10, Slv	2	$6.73	Available to order	2 Ships within 3–7 business days
10	T2041849 Bar End Weight	Bar End Weight	2	$33.66	Available to order	2 Ships within 3–7 business days
11	T3330931 Screw, Csk, M6 x 20. Slv	Screw, Csk, M6 x 20. Slv	2	$7.22	Available to order	2 Ships within 3–7 business days
12	T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD	Screw, S/Tap, Pan/Hd, M4 x 10, HD	2	$7.14	Available to order	2 Ships within 3–7 business days
13	T2047164 Grip, Handlebar, LH	Grip, Handlebar, LH	1	$18.33	Out of Stock	Notify Me
14	T2042382 Switchcube, LH	Switchcube, LH	1	$311.19	Available to order	1 Ships within 3–7 business days
15	T3331795 Screw, M5 x 35	Screw, M5 x 35	2	$1.62	Available to order	2 Ships within 3–7 business days
16	T2041294 Switchcube, RH, APS	Switchcube, RH, APS	1	$276.34	Available to order	1 Ships within 3–7 business days
17	T3331440 Screw, Pan/Hd, Phil, M5 x 40	Screw, Pan/Hd, Phil, M5 x 40	3	$2.00	Available to order	3 Ships within 3–7 business days
18	T2047165 Grip, Handlebar, RH	Grip, Handlebar, RH	1	$18.33	Available to order	1 Ships within 3–7 business days
20	T3331750 Screw, Tx, M4 x 17.5, Slv	Screw, Tx, M4 x 17.5, Slv	1	$4.30	Available to order	1 Ships within 3–7 business days
21	T3700212 Band, Rubber	Band, Rubber	3	$3.29	Available to order	3 Ships within 3–7 business days
22	T3550500 Washer, 4.3 x 9.0 x 0.8	Washer, 4.3 x 9.0 x 0.8	2	$1.72	Available to order	2 Ships within 3–7 business days
23	T2067777 Mirror, LH	Mirror, LH	1	$132.34	Available to order	1 Ships within 3–7 business days
24	T2069777 Mirror, RH	Mirror, RH	1	$132.34	Available to order	1 Ships within 3–7 business days

Part Number

Price

T2041398

Upper Yoke Assembly

$297.51

Notify Me

T3050323

Screw, Cap/Hd, M8 x 30, Slv

$4.74

Ships within 3–7 business days

T2048951

Handlebar Clamp Kit
