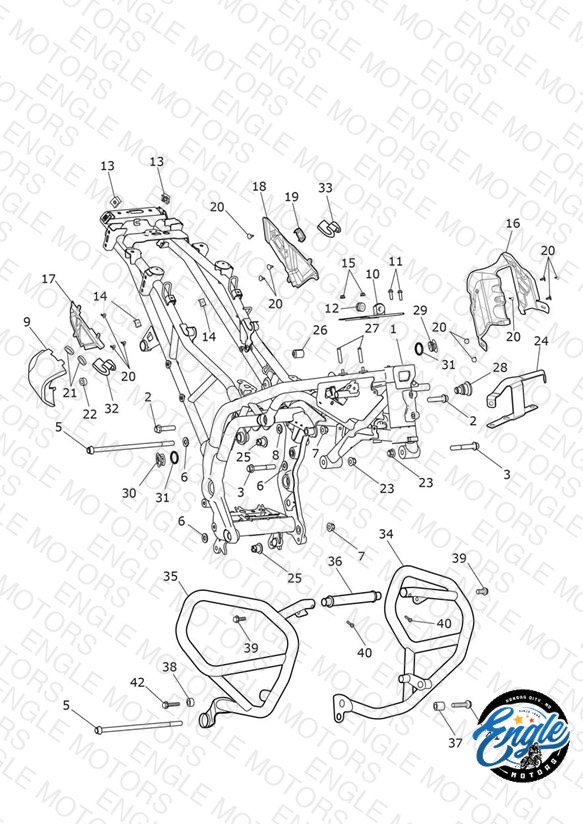

Loading schematic...
Main Frame & Fittings
Parts (43)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2070611 Frame Assembly Spares | Frame Assembly Spares | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2070613 Frame Assembly Spares, Americas | Frame Assembly Spares, Americas US | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2070626 Frame Assembly Spares, Canada | Frame Assembly Spares, Canada CA | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2070897 Frame Assembly Spares, Australia | Frame Assembly Spares, Australia AU | 1 | $2922.21 | Out of Stock | Notify Me |
| 2 | T3334692 Screw, Torx, M12 x 50 | Screw, Torx, M12 x 50 | 2 | $11.41 | Available to order | 2 |
| 3 | T3151120 Bolt, M12 x 75 | Bolt, M12 x 75 | 2 | $7.22 | Available to order | 2 |
| 5 | T3334662 Screw, Torx, M12 x 265 | Screw, Torx, M12 x 265 | 2 | $15.60 | Available to order | 2 |
| 6 | T3550572 Washer, Hardened, 26 x 12.5 x 3 | Washer, Hardened, 26 x 12.5 x 3 | 3 | $10.17 | Available to order | 3 |
| 7 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 2 | $6.07 | Available to order | 2 |
| 8 | T2077820 Spacer, Engine Mount, M12 | Spacer, Engine Mount, M12 | 1 | $6.73 | Available to order | 1 |
| 9 | T2070569 Swingarm Position Sensor Cover | Swingarm Position Sensor Cover | 1 | $6.65 | Available to order | 1 |
| 10 | T2075851 Pressing, Headstock Brace, Top | Pressing, Headstock Brace, Top | 1 | $34.11 | Out of Stock | Notify Me |
| 11 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 2 | $5.30 | Available to order | 2 |
| 12 | T3020300 Grommet, Dia 19.5 x 4 Panel | Grommet, Dia 19.5 x 4 Panel | 1 | $3.39 | Available to order | 1 |
| 13 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $4.92 | Backorder — Early August 2026 | 2 |
| 14 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 2 | $2.48 | Available to order | 2 |
| 15 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 16 | T2303385 Headstock Infill, Moulding | Headstock Infill, Moulding | 1 | $39.18 | Available to order | 1 |
| 17 | T2070214 Frame Infill, RHS | Frame Infill, RHS | 1 | $25.96 | Backorder — Late July 2026 | 1 |
| 18 | T2070146 Frame Infill, LHS | Frame Infill, LHS | 1 | $25.96 | Available to order | 1 |
| 19 | T2307136 Blank Plug, Switch | Blank Plug, Switch | 1 | $1.11 | Available to order | 1 |
| 20 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 12 | $1.21 | Available to order | 12 |
| 21 | T3020330 Grommet, Rectangular | Grommet, Rectangular | 2 | $2.95 | Available to order | 2 |
| 22 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 1 | $2.10 | Available to order | 1 |
| 24 | T2303368 Bracket, Headstock Infill | Bracket, Headstock Infill | 1 | $24.43 | Available to order | 1 |
| 25 | T2071980 Adjuster, Frame, M12 | Adjuster, Frame, M12 | 2 | $9.78 | Out of Stock | Notify Me |
| 26 | T2056500 Bush, Rubber Mount, 10.2 x 27 x 32 | Bush, Rubber Mount, 10.2 x 27 x 32 | 1 | $18.50 | Available to order | 1 |
| 27 | T3100020 Stud, M6 | Stud, M6 | 2 | $2.10 | Available to order | 2 |
| 28 | T2050666 Pivot Pin, M30 | Pivot Pin, M30 | 1 | $9.97 | Backorder — Early August 2026 | 1 |
| 29 | T2076468 Bung, Tube, Upper Cross Beam, LH | Bung, Tube, Upper Cross Beam, LH | 1 | $4.01 | Backorder — Late July 2026 | 1 |
| 30 | T2076469 Bung, Tube, Upper Cross Beam, RH | Bung, Tube, Upper Cross Beam, RH | 1 | $4.01 | Available to order | 1 |
| 31 | T3600267 O Ring, ID 26.65 x Dia 2.62 | O Ring, ID 26.65 x Dia 2.62 | 2 | $1.51 | Available to order | 2 |
| 32 | T2305281 Seat Mtg, RHS | Seat Mtg, RHS | 1 | $10.90 | Available to order | 1 |
| 33 | T2305282 Seat Mtg, LHS | Seat Mtg, LHS | 1 | $10.90 | Available to order | 1 |
| 34 | T2076730 Protector Bar, Engine, LH | Protector Bar, Engine, LH | 1 | $168.00 | Unavailable | View Details |
| 35 | T2079933 Protector Bar, Engine, RH | Protector Bar, Engine, RH | 1 | $228.04 | Available to order | 1 |
| 36 | T2076966 Link Bar | Link Bar | 1 | $55.20 | Available to order | 1 |
| 37 | T2076740 Spacer, 8.4 x 17.8 x 25, Aluminium | Spacer, 8.4 x 17.8 x 25, Aluminium | 1 | $13.61 | Available to order | 1 |
| 38 | T2076745 Spacer, 8.4 x 17.8 x 13, Aluminium | Spacer, 8.4 x 17.8 x 13, Aluminium | 1 | $12.33 | Available to order | 1 |
| 39 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | 2 | $1.62 | Available to order | 2 |
| 40 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 2 | $3.04 | Available to order | 2 |
| 41 | T3205109 Bolt, HHF, Lghtd, M8 x 45, Slv | Bolt, HHF, Lghtd, M8 x 45, Slv | 1 | $5.12 | Available to order | 1 |
| 42 | T3205868 Bolt, HHF, Lghtd, M8 x 33, Slv | Bolt, HHF, Lghtd, M8 x 33, Slv | 1 | $6.65 | Out of Stock | Notify Me |
