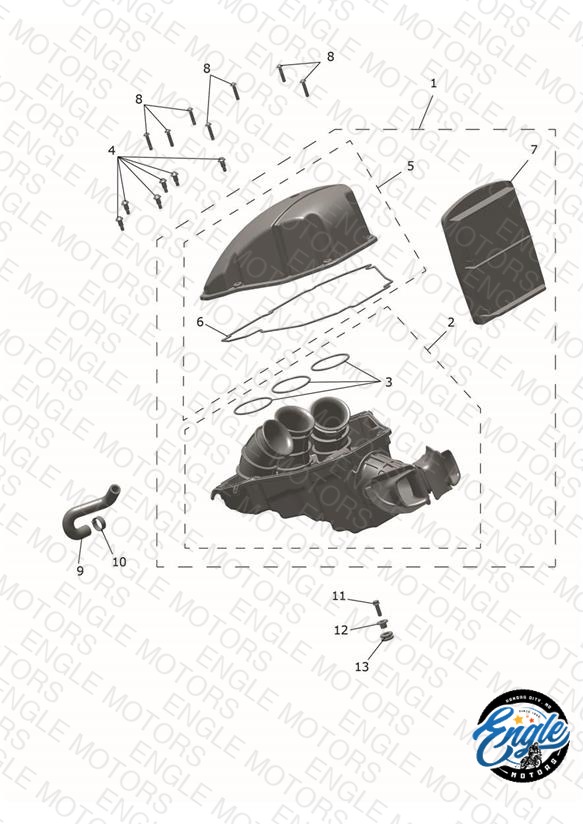

Airbox Assembly
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2207361 Airbox Assembly | Airbox Assembly | 1 | $100.97 | Backorder — Early August 2026 | 1 |
| 2 | T2207362 Airbox, Lower, Assembly | Airbox, Lower, Assembly | 1 | — | Unavailable | View Details |
| 3 | T2208180 Airbox/Throttle Body, O Ring | Airbox/Throttle Body, O Ring | 3 | $4.88 | Available to order | 3 |
| 4 | T3330887 Screw, Pan, Shld, M5 x 0.8 | Screw, Pan, Shld, M5 x 0.8 | 6 | $1.97 | Available to order | 6 |
| 5 | T2207363 Airbox, Upper, Assembly | Airbox, Upper, Assembly | 1 | — | Unavailable | View Details |
| 6 | T2207945 Seal, Airbox | Seal, Airbox | 1 | $4.45 | Backorder — Mid August 2026 | 1 |
| 7 | T2209699 Air Filter | Air Filter | 1 | $47.41 | Backorder — Late July 2026 | 1 |
| 8 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 7 | $2.17 | Available to order | 7 |
| 9 | T2207827 Breather Hose, Crankcase | Breather Hose, Crankcase | 1 | $5.84 | Backorder — Late July 2026 | 1 |
| 10 | T3700051 Hose Clip, Dia 18.1-20 x 8mm | Hose Clip, Dia 18.1-20 x 8mm | 1 | $2.25 | Available to order | 1 |
| 11 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.55 | Available to order | 1 |
| 12 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 1 | $5.78 | Available to order | 1 |
| 13 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 1 | $1.91 | Available to order | 1 |
