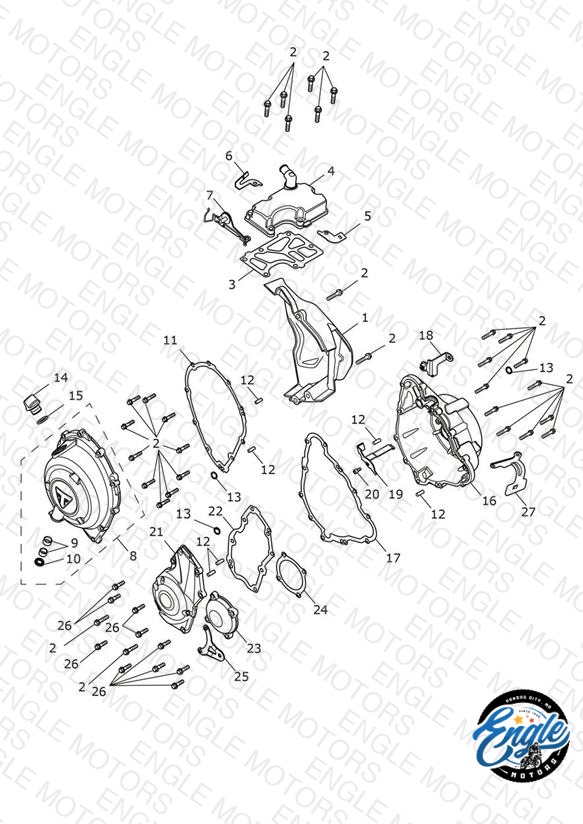

Loading schematic...
Engine Covers
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1261318 Sprocket Cover | Sprocket Cover | 1 | $26.65 | Available to order | 1 |
| 2 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 31 | $2.46 | Available to order | 31 |
| 3 | T1260217 Breather Cover Gasket | Breather Cover Gasket | 1 | $24.51 | Out of Stock | Notify Me |
| 4 | T1267003 Breather Cover Assy | Breather Cover Assy | 1 | $80.35 | Backorder — Early August 2026 | 1 |
| 5 | T2505029 Bracket, Harness, Shifter | Bracket, Harness, Shifter | 1 | $7.19 | Out of Stock | Notify Me |
| 6 | T2505028 Bracket, Engine Subharness | Bracket, Engine Subharness | 1 | $1.91 | Out of Stock | Notify Me |
| 7 | T1267066 Bracket, Manifold, Lower | Bracket, Manifold, Lower | 1 | $16.66 | Out of Stock | Notify Me |
| 8 | T1266016 Clutch Cover Assembly, Grey | Clutch Cover Assembly, Grey | 1 | $298.14 | Out of Stock | Notify Me |
| 9 | T3800110 Roller Bearing, HK 1210 | Roller Bearing, HK 1210 | 2 | $6.65 | Available to order | 2 |
| 10 | T3600095 Dust Seal | Dust Seal | 1 | $2.25 | Available to order | 1 |
| 11 | T1260258 Clutch Cover Gasket | Clutch Cover Gasket | 1 | $22.41 | Available to order | 1 |
| 12 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 6 | $1.13 | Available to order | 6 |
| 13 | T3550146 Washer, 6.4 x 12 x 1, Copper | Washer, 6.4 x 12 x 1, Copper | 3 | $1.40 | Available to order | 3 |
| 14 | T1260249 Oil Filler Cap | Oil Filler Cap | 1 | $21.39 | Available to order | 1 |
| 15 | T3600163 O Ring, ID 19 x 3 | O Ring, ID 19 x 3 | 1 | $12.61 | Available to order | 1 |
| 16 | T1268019 Alternator Cover | Alternator Cover | 1 | $190.23 | Available to order | 1 |
| 17 | T1267900 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $13.63 | Available to order | 1 |
| 18 | T2101476 Bracket, Expansion Tank, Lower | Bracket, Expansion Tank, Lower | 1 | $11.41 | Out of Stock | Notify Me |
| 19 | T1267015 Bracket, Wire Retainer | Bracket, Wire Retainer | 1 | $9.77 | Available to order | 1 |
| 20 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 1 | $3.04 | Available to order | 1 |
| 21 | T1267006 Crank Cover | Crank Cover | 1 | $201.51 | Available to order | 1 |
| 22 | T1260264 Crank Cover Gasket | Crank Cover Gasket | 1 | $16.07 | Available to order | 1 |
| 23 | T1260556 Balancer Cover, Wet Paint | Balancer Cover, Wet Paint | 1 | $201.51 | Available to order | 1 |
| 24 | T1260267 Balancer Cover Gasket | Balancer Cover Gasket | 1 | $9.10 | Available to order | 1 |
| 25 | T1170113 Bracket, Clutch Cable | Bracket, Clutch Cable > Eng No AU3671 All Expt BR/IN & > BD3078 BR/ID Only | 1 | $17.56 | Available to order | 1 |
| 26 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 10 | $4.55 | Available to order | 10 |
| 27 | T2504125 Bracket, Hose Retaining | Bracket, Hose Retaining | 1 | $9.16 | Available to order | 1 |
