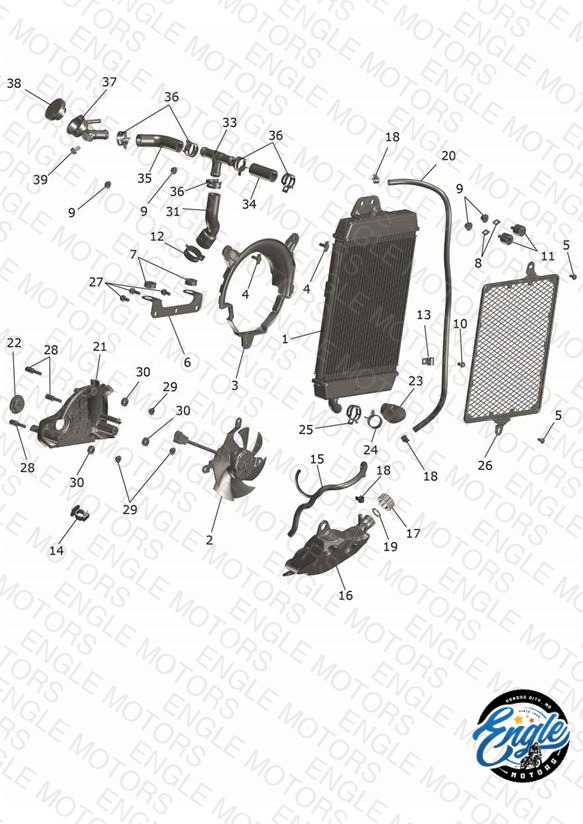

Loading schematic...
Cooling System
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA601245 Radiator | Radiator All except BR | 1 | $210.89 | Out of Stock | Notify Me |
| 1 | TA601206 Radiator | Radiator BR only | 1 | $237.91 | Available to order | 1 |
| 2 | TA601209 Fan | Fan | 1 | $227.55 | Backorder — Early August 2026 | 1 |
| 3 | YTA04019 Radiator Shroud | Radiator Shroud | 1 | $12.29 | Out of Stock | Notify Me |
| 4 | YTA04021 Shroud Bolt M6 | Shroud Bolt M6 | 2 | $2.13 | Available to order | 2 |
| 5 | YTA02019 Bolt, M5 | Bolt, M5 | 2 | $0.66 | Available to order | 2 |
| 6 | YTA04022 Mounting Bracket | Mounting Bracket | 1 | $6.02 | Out of Stock | Notify Me |
| 7 | TA601234 Grommet | Grommet | 2 | $0.60 | Out of Stock | Notify Me |
| 8 | LDB00072 Washer Plain, 16 x 6.5 x 1, blk | Washer Plain, 16 x 6.5 x 1, blk | 2 | $0.17 | Out of Stock | Notify Me |
| 9 | LCG00029 Nut Hex Flanged M6X1 | Nut Hex Flanged M6X1 | 4 | $0.60 | Out of Stock | Notify Me |
| 10 | KAED0608 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 1 | $0.22 | Out of Stock | Notify Me |
| 11 | JP601217 Rubber Damper Radiator Mounting | Rubber Damper Radiator Mounting | 2 | $1.80 | Out of Stock | Notify Me |
| 12 | JL601221 Clamp | Clamp | 1 | $2.37 | Out of Stock | Notify Me |
| 13 | BA201006 Clamp | Clamp | 1 | $0.34 | Out of Stock | Notify Me |
| 14 | 60111417 Clip | Clip | 1 | $0.60 | Backorder — Early August 2026 | 1 |
| 15 | JY171096 Drain Pipe | Drain Pipe | 1 | $3.90 | Backorder — Early August 2026 | 1 |
| 16 | TA601202 Expansion Tank | Expansion Tank | 1 | $21.74 | Available to order | 1 |
| 17 | TA601227 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $2.49 | Out of Stock | Notify Me |
| 18 | JG171029 Clamp | Clamp | 3 | $1.13 | Available to order | 3 |
| 19 | JG601230 Expansion Tank O Ring | Expansion Tank O Ring | 1 | $0.56 | Available to order | 1 |
| 20 | TA601213 Pipe, Radiator - Expansion Tank | Pipe, Radiator - Expansion Tank | 1 | $5.15 | Available to order | 1 |
| 21 | TA601218 Deflector Assembly | Deflector Assembly | 1 | $114.77 | Available to order | 1 |
| 22 | TA601222 Grommet | Grommet | 1 | $1.79 | Available to order | 1 |
| 23 | TA601205 Pipe, Radiator, Inlet | Pipe, Radiator, Inlet | 1 | $9.22 | Available to order | 1 |
| 24 | JG601234 Clamp, Dia 23 | Clamp, Dia 23 | 1 | $1.93 | Available to order | 1 |
| 25 | JG601016 Clamp, Radiator Pipe, Dia 26 | Clamp, Radiator Pipe, Dia 26 | 1 | $2.37 | Available to order | 1 |
| 26 | 36TA0208 Guard, Radiator | Guard, Radiator | 1 | $84.34 | Available to order | 1 |
| 27 | YTA05019 Flange Bolt, M6 x 12 | Flange Bolt, M6 x 12 | 3 | $0.60 | Out of Stock | Notify Me |
| 28 | LAC00186 Bolt, Socket, M6 x 1 | Bolt, Socket, M6 x 1 | 3 | $0.66 | Available to order | 3 |
| 29 | DD181186 Collar | Collar | 3 | $0.46 | Available to order | 3 |
| 30 | DU151061 Grommet | Grommet | 3 | $0.34 | Available to order | 3 |
| 31 | TA601204 Pipe, Thermostat - Radiator | Pipe, Thermostat - Radiator | 1 | $10.55 | Available to order | 1 |
| 33 | TA601216 Joint T | Joint T | 1 | $4.54 | Available to order | 1 |
| 34 | TA601215 Pipe, Connector Radiator | Pipe, Connector Radiator | 1 | $6.48 | Available to order | 1 |
| 35 | TA601214 Pipe, Cap Radiator Connector | Pipe, Cap Radiator Connector | 1 | $8.47 | Available to order | 1 |
| 36 | JG601209 Clamp, Radiator Pipe, Dia 24 | Clamp, Radiator Pipe, Dia 24 | 5 | $2.03 | Available to order | 5 |
| 37 | TA601224 Cap Assembly Radiator | Cap Assembly Radiator | 1 | $35.13 | Available to order | 1 |
| 38 | JG601235 Pressure Cap Radiator | Pressure Cap Radiator | 1 | $19.00 | Available to order | 1 |
| 39 | KADD0612 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 1 | $0.34 | Available to order | 1 |
| 40 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Pink Coolant - For Use, please refer to Handbook | 1 | $187.12 | Available to order | 1 |
