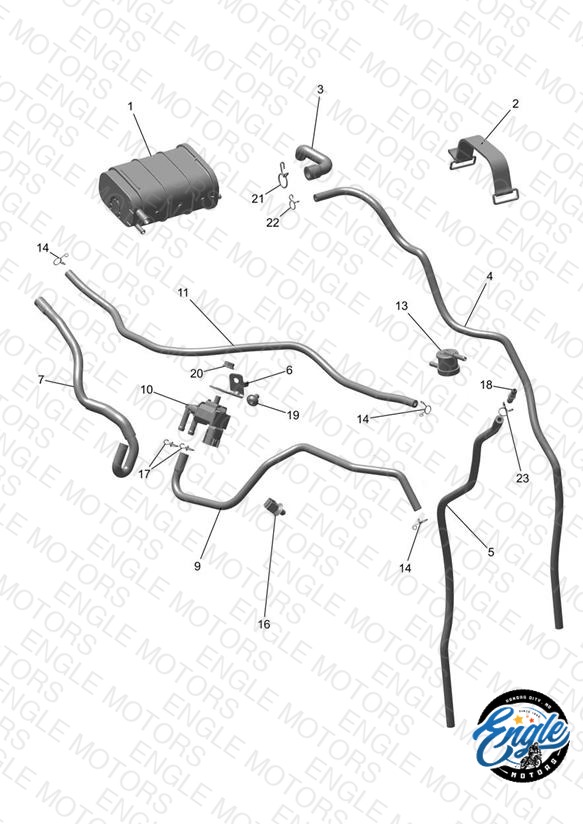

Evap System - All Except US
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | JR171620 Evap Cannister | Evap Cannister | 1 | $30.11 | Out of Stock | Notify Me |
| 2 | DH161429 Strap, Canister | Strap, Canister | 1 | $2.73 | Available to order | 1 |
| 3 | TA171652 Fuel Pipe | Fuel Pipe | 1 | $14.46 | Out of Stock | Notify Me |
| 4 | TA171653 Fuel Pipe | Fuel Pipe | 1 | $6.02 | Out of Stock | Notify Me |
| 5 | TA171613 Pipe, Drain | Pipe, Drain | 1 | $4.58 | Backorder — Mid August 2026 | 1 |
| 6 | TA113835 Bracket, Purge Valve | Bracket, Purge Valve | 1 | $2.25 | Out of Stock | Notify Me |
| 7 | TA171606 Pipe Connector - Purge Valve | Pipe Connector - Purge Valve | 1 | $4.40 | Out of Stock | Notify Me |
| 9 | TA171605 Pipe Valve Purge - Throttle Body | Pipe Valve Purge - Throttle Body | 1 | $4.86 | Out of Stock | Notify Me |
| 10 | JU171606 Purge Valve | Purge Valve | 1 | $56.79 | Available to order | 1 |
| 11 | TA171654 Fuel Pipe | Fuel Pipe | 1 | $4.21 | Out of Stock | Notify Me |
| 13 | GL171031 Valve, One Way | Valve, One Way | 1 | — | Unavailable | View Details |
| 14 | 33141008 Clamp | Clamp | 3 | $0.22 | Available to order | 3 |
| 16 | 24101879 Clip Cable | Clip Cable | 1 | $1.58 | Out of Stock | Notify Me |
| 17 | DJ141002 Clamp, Drain Pipe | Clamp, Drain Pipe | 2 | $0.22 | Available to order | 2 |
| 18 | GL171073 Connector | Connector | 1 | $2.37 | Available to order | 1 |
| 19 | LBU00118 Screw, Btn Hd | Screw, Btn Hd | 1 | $0.56 | Out of Stock | Notify Me |
| 20 | KCGA0606 Nut, Hex, Flanged | Nut, Hex, Flanged | 1 | $0.10 | Available to order | 1 |
| 21 | JK511002 Clamp, Breather Hose | Clamp, Breather Hose | 1 | $0.34 | Available to order | 1 |
| 22 | BA122003 Pipe Clip | Pipe Clip | 1 | $0.17 | Available to order | 1 |
| 23 | JG171030 Clamp | Clamp | 1 | $0.34 | Available to order | 1 |
