Triumph Trident 660cc Front Brake Caliper & Discs — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

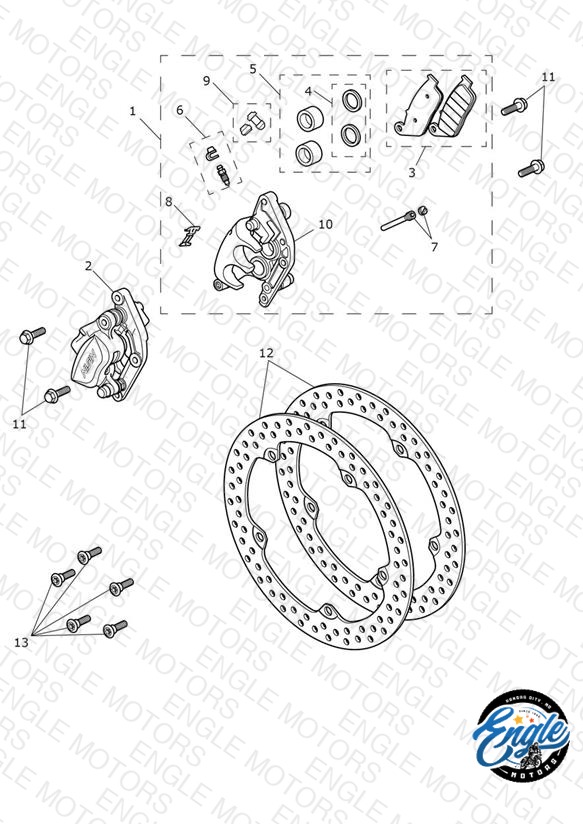

#	Part Number	Description	Qty	Price	Status
1	T2021395 Caliper Assy, LH	Caliper Assy, LH	1	$391.72	Available to order	1 Ships within 3–7 business days
2	T2021394 Caliper Assy, RH	Caliper Assy, RH	1	$391.72	Out of Stock	Notify Me
3	T2020377 Brake Pad Set, x 2 Pads	Brake Pad Set, x 2 Pads	2	$68.90	Available to order	2 Ships within 3–7 business days
4	T2020505 Seal Kit, 2 Piston Caliper	Seal Kit, 2 Piston Caliper	2	$57.03	Available to order	2 Ships within 3–7 business days
5	T2020356 Piston Set	Piston Set	2	$114.08	Available to order	2 Ships within 3–7 business days
6	T2020014 Bleed Screw	Bleed Screw	2	$15.27	Available to order	2 Ships within 3–7 business days
7	T2021151 Pin Set, Hanger	Pin Set, Hanger	2	$9.28	Available to order	2 Ships within 3–7 business days
8	T2020086 Pad, Spring, D Spec	Pad, Spring, D Spec	2	$10.34	Available to order	2 Ships within 3–7 business days
9	T2021707 Set, Sliding Seals	Set, Sliding Seals	2	$44.27	Backorder — Mid August 2026	2
10	T2020378 Bracket, Comp, LH	Bracket, Comp, LH	1	$72.26	Available to order	1 Ships within 3–7 business days
10	T2020379 Bracket, Comp, RH	Bracket, Comp, RH	1	$72.26	Available to order	1 Ships within 3–7 business days
11	T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv	Bolt, HHF, Lghtd, M8 x 30, Slv	4	$1.21	Available to order	4 Ships within 3–7 business days
12	T2022211 Front Disc	Front Disc	2	$259.51	Available to order	2 Ships within 3–7 business days
13	T2024801 Bolt, Disc, M8 x 30, Slv, Enc	Bolt, Disc, M8 x 30, Slv, Enc	10	$1.90	Available to order	10 Ships within 3–7 business days

What Our Customers Say

What Our Customers Say

Front Brake Caliper & Discs

Parts (14)
