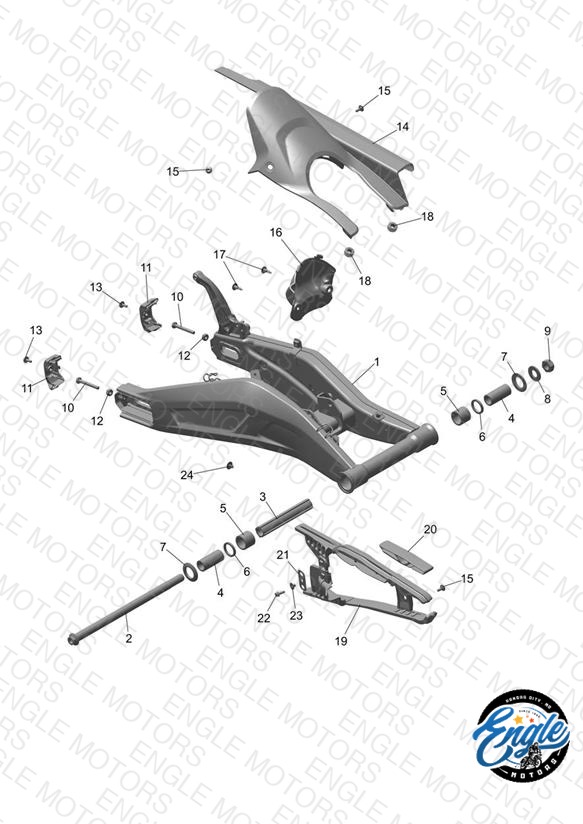

Swingarm Assembly
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2051147 Swingarm Assembly, Spares | Swingarm Assembly, Spares Includes items 3, 4, 5, 6, 7 & 26 | 1 | $997.56 | Out of Stock | Notify Me |
| 2 | T2054050 Spindle | Spindle | 1 | $75.11 | Available to order | 1 |
| 3 | T2051781 Spacer, Internal | Spacer, Internal | 1 | $53.08 | Available to order | 1 |
| 4 | T2052235 Sleeve, Ground | Sleeve, Ground | 2 | $22.98 | Available to order | 2 |
| 5 | T3800014 Roller bearing | Roller bearing | 2 | $14.32 | Available to order | 2 |
| 6 | T3600162 Oil Seal, 32 25 4 | Oil Seal, 32 25 4 | 2 | $8.53 | Available to order | 2 |
| 7 | T2054562 Bush, Moulded | Bush, Moulded | 2 | $8.01 | Available to order | 2 |
| 8 | T3551240 Washer, M16 x 34 x 3 | Washer, M16 x 34 x 3 | 1 | $2.63 | Available to order | 1 |
| 9 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 10 | T3203204 Screw, H/Hd, M8 x 55, Slv | Screw, H/Hd, M8 x 55, Slv | 2 | $2.34 | Available to order | 2 |
| 11 | T2051916 End Cap Moulding | End Cap Moulding | 2 | $7.11 | Out of Stock | Notify Me |
| 12 | T3350303 Nut, M8, Silver | Nut, M8, Silver | 2 | $0.81 | Available to order | 2 |
| 13 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 2 | $8.46 | Available to order | 2 |
| 14 | T2053300 Chainguard Hugger, Moulding | Chainguard Hugger, Moulding | 1 | $82.73 | Available to order | 1 |
| 15 | T3331078 Bolt, But/Hd, M5 x 14, Shld, Slv | Bolt, But/Hd, M5 x 14, Shld, Slv | 3 | $8.65 | Available to order | 3 |
| 16 | T2051061 Guard, RSU, Linkage | Guard, RSU, Linkage | 1 | $12.33 | Out of Stock | Notify Me |
| 17 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 2 | $0.97 | Available to order | 2 |
| 18 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $1.91 | Available to order | 2 |
| 19 | T2055258 Chain Rubbing Strip | Chain Rubbing Strip | 1 | $48.21 | Available to order | 1 |
| 20 | T2055259 Rubber, Chain Rubbing Strip | Rubber, Chain Rubbing Strip | 1 | $6.91 | Available to order | 1 |
| 21 | T2050637 Plate, Rubbing Strip | Plate, Rubbing Strip | 1 | $7.38 | Available to order | 1 |
| 22 | T3330892 Bolt, RHHF, M5 x 15, S5041 | Bolt, RHHF, M5 x 15, S5041 | 1 | $1.13 | Available to order | 1 |
| 23 | T3010706 Flanged Sleeve, 5.2 x 7 x 6.3 | Flanged Sleeve, 5.2 x 7 x 6.3 | 1 | $5.30 | Available to order | 1 |
| 24 | T3450101 Button, Firtree, M6 x 11 | Button, Firtree, M6 x 11 | 1 | $1.40 | Available to order | 1 |
| 25 | T3700180 Plug, Hole, Plastic | Plug, Hole, Plastic Not Illustrated | 2 | $2.55 | Available to order | 2 |
