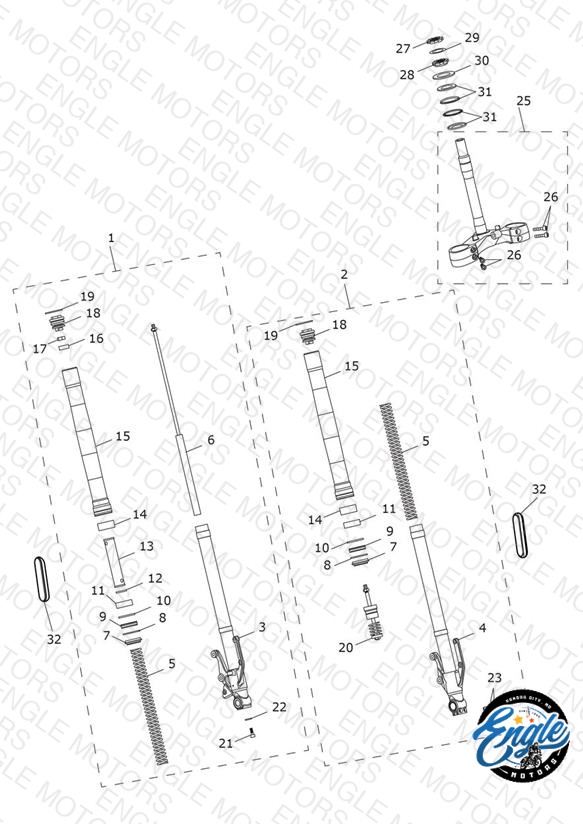

Triumph Trident 660cc Front Forks & Lower Yoke Assy — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2042543 Fork Leg Assembly, RH	Fork Leg Assembly, RH	1	$822.81	Available to order	1 Ships within 3–7 business days
2	T2042542 Fork Leg Assembly, LH	Fork Leg Assembly, LH	1	$822.81	Out of Stock	Notify Me
3	T2043815 RH Slide Pipe, P/Comp	RH Slide Pipe, P/Comp	1	$553.37	Available to order	1 Ships within 3–7 business days
4	T2043811 LH Slide Pipe, P/Comp	LH Slide Pipe, P/Comp	1	$553.37	Available to order	1 Ships within 3–7 business days
5	T2043813 Spring	Spring	2	$97.11	Available to order	2 Ships within 3–7 business days
6	T2043816 Damper Comp	Damper Comp	1	$565.02	Out of Stock	Notify Me
7	T2049866 Dust Seal	Dust Seal	2	$20.99	Available to order	2 Ships within 3–7 business days
8	T2046248 Stop Ring	Stop Ring	2	$6.83	Available to order	2 Ships within 3–7 business days
9	T2049868 Oil Seal	Oil Seal	2	$21.52	Available to order	2 Ships within 3–7 business days
10	T2049869 Seal Spacer	Seal Spacer	2	$5.98	Available to order	2 Ships within 3–7 business days
11	T2049870 Guide Bush	Guide Bush	2	$14.89	Available to order	2 Ships within 3–7 business days
12	T2049884 Spg Joint	Spg Joint	1	$4.01	Available to order	1 Ships within 3–7 business days
13	T2043817 Spg Collar	Spg Collar	1	$36.99	Out of Stock	Notify Me
14	T2049872 Slide Bush	Slide Bush	2	$15.81	Available to order	2 Ships within 3–7 business days
15	T2043812 Outer Tube	Outer Tube	2	$496.05	Backorder — Early August 2026	2
16	T2048139 Spg Seat Stopper	Spg Seat Stopper * Part No Longer Available *	1	$6.35	Obsolete	View Details
17	T2049894 Hexagon Nut	Hexagon Nut	1	$13.45	Out of Stock	Notify Me
18	T2049875 Fork Bolt P/Comp	Fork Bolt P/Comp	2	$57.98	Backorder — Late July 2026	2
19	T2049874 O Ring	O Ring	2	$4.12	Available to order	2 Ships within 3–7 business days
20	T2043814 Joint, Rod Comp	Joint, Rod Comp	1	$90.13	Out of Stock	Notify Me
21	T2046164 Capscrew, Oil Lock	Capscrew, Oil Lock	1	$9.10	Available to order	1 Ships within 3–7 business days
22	T2042907 Sealing washer	Sealing washer	1	$1.13	Available to order	1 Ships within 3–7 business days
23	T2046146 Hex Socket Bolt	Hex Socket Bolt	2	$5.42	Out of Stock	Notify Me
24	T2048754 Label	Label Not Illustrated	2	$2.22	Out of Stock	Notify Me
25	T2046199 Spares Kit, Lower Yoke Assy	Spares Kit, Lower Yoke Assy	1	$312.44	Available to order	1 Ships within 3–7 business days
26	T3050312 Screw, Skt, Cap, M8 x 30, S/S	Screw, Skt, Cap, M8 x 30, S/S	4	$4.12	Available to order	4 Ships within 3–7 business days
27	T2040304 Locknut, M30	Locknut, M30	1	$20.60	Available to order	1 Ships within 3–7 business days
28	T2044183 Washer, Headstock	Washer, Headstock	1	$8.30	Available to order	1 Ships within 3–7 business days
29	T2040301 Adjuster Nut, M30, Lower	Adjuster Nut, M30, Lower	1	$28.50	Available to order	1 Ships within 3–7 business days
30	T2043869 Cover, Headstock Bearing, Black	Cover, Headstock Bearing, Black	1	$10.47	Available to order	1 Ships within 3–7 business days
31	T3600234 Dust Seal, Dia 55	Dust Seal, Dia 55	2	$8.34	Available to order	2 Ships within 3–7 business days
32	T2700332 Reflector, Amber, Oval	Reflector, Amber, Oval	2	$6.39	Available to order	2 Ships within 3–7 business days
