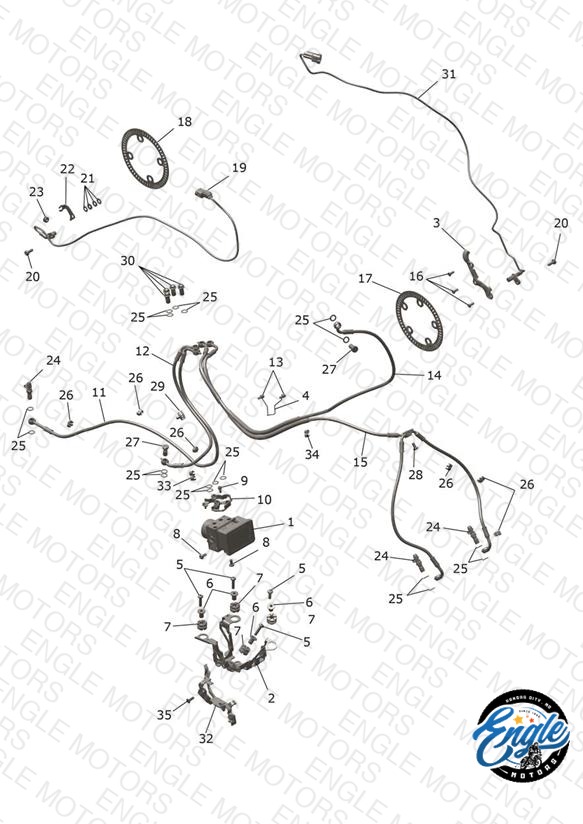

Triumph Trident 800 ABS System — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2022649 ABS Modulator, Wet	ABS Modulator, Wet	1	$997.81	Backorder — Mid August 2026	1
2	T2022656 Bracket, ABS Cradle	Bracket, ABS Cradle	1	$40.63	Out of Stock	Notify Me
3	T2021363 Conduit, ABS Sensor Wire	Conduit, ABS Sensor Wire	1	$9.31	Out of Stock	Notify Me
4	T2022605 Wireguide, Brakeline Routing	Wireguide, Brakeline Routing	1	$14.61	Out of Stock	Notify Me
5	T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc	Screw, Pan/Hd, Tx, M6 x 25, Enc	4	$1.06	Available to order	4 Ships within 3–7 business days
6	T3010701 Flanged Sleeve, 6.4 x 10 x 14.5	Flanged Sleeve, 6.4 x 10 x 14.5	4	$5.30	Available to order	4 Ships within 3–7 business days
7	T3020621 Grommet, Castellated, SH30, White	Grommet, Castellated, SH30, White	4	$4.01	Out of Stock	Notify Me
8	T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc	Screw, Pan/Hd, Tx, M6 x 12, Enc	2	$1.40	Available to order	2 Ships within 3–7 business days
9	T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc	Screw, Cap/Hd, M5 x 10, Slv, Enc	1	$3.04	Available to order	1 Ships within 3–7 business days
10	T2023319 Banjo Guide Moulding	Banjo Guide Moulding	1	$3.59	Backorder — Late July 2026	1
11	T2022805 Brake Line, Rear Caliper	Brake Line, Rear Caliper	1	$175.77	Out of Stock	Notify Me
12	T2022529 Brake Line, Rear M/Cyl	Brake Line, Rear M/Cyl	1	$153.28	Out of Stock	Notify Me
13	T3050341 Screw, Cap/Hd, M5 x 10, Slv	Screw, Cap/Hd, M5 x 10, Slv	2	$3.80	Available to order	2 Ships within 3–7 business days
14	T2025160 Brake Line, Front M/Cyl	Brake Line, Front M/Cyl	1	$64.66	Out of Stock	Notify Me
15	T2025158 Brake Line, Front Caliper	Brake Line, Front Caliper	1	$136.50	Out of Stock	Notify Me
16	T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv	Screw, Pan/Hd, Tx, M5 x 12, Slv	3	$5.67	Available to order	3 Ships within 3–7 business days
17	T2022022 Pulser Ring, ABS	Pulser Ring, ABS	1	$216.72	Available to order	1 Ships within 3–7 business days
18	T2021492 Pulser Ring, Rear	Pulser Ring, Rear	1	$216.72	Available to order	1 Ships within 3–7 business days
19	T2029935 Wheel Speed Sensor	Wheel Speed Sensor	1	$206.88	Available to order	1 Ships within 3–7 business days
20	T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv	Screw, Tx, Pan/Hd, M6 x 16, Slv	2	$2.63	Available to order	2 Ships within 3–7 business days
21	T3552001 Washer, M6 x 14 x 0.5	Washer, M6 x 14 x 0.5 Use as required	2	$1.79	Available to order	2 Ships within 3–7 business days
21	T3552002 Washer, M6 x 14 x 1	Washer, M6 x 14 x 1 Use as required	2	$1.69	Available to order	2 Ships within 3–7 business days
21	T3552003 Washer, M6 x 14 x 1.5	Washer, M6 x 14 x 1.5 Use as required	2	$1.79	Available to order	2 Ships within 3–7 business days
21	T3552004 Washer, M6 x 14 x 2	Washer, M6 x 14 x 2 Use as required	2	$1.91	Available to order	2 Ships within 3–7 business days
22	T2027777 Sensor Bracket	Sensor Bracket	1	$12.33	Out of Stock	Notify Me
23	T3020019 Grommet, Split, Rubber	Grommet, Split, Rubber	1	$1.62	Available to order	1 Ships within 3–7 business days
24	T2020383 Bolt, Banjo, M10	Bolt, Banjo, M10	3	$10.79	Backorder — Late July 2026	3
25	T3550229 Washer, 15.2 x 10 x 1, Plated	Washer, 15.2 x 10 x 1, Plated	18	$1.07	Available to order	18 Ships within 3–7 business days
26	T3701103 Clip, Twin, 3.9-7	Clip, Twin, 3.9-7	6	$3.07	Available to order	6 Ships within 3–7 business days
27	T3250125 Bolt, Banjo, M10 x 21	Bolt, Banjo, M10 x 21	2	$7.02	Available to order	2 Ships within 3–7 business days
28	T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv	Screw, Pan/Hd, Tx, M6 x 12, Slv	1	$0.97	Available to order	1 Ships within 3–7 business days
29	T3700197 Clip, Hose, 6.5d, Twin	Clip, Hose, 6.5d, Twin	1	$8.01	Available to order	1 Ships within 3–7 business days
30	T3250032 Banjo Bolt, M10 x 19	Banjo Bolt, M10 x 19	4	$5.58	Available to order	4 Ships within 3–7 business days
31	T2022790 Sensor, Wheel Speed, CHT, 270	Sensor, Wheel Speed, CHT, 270	1	$180.80	Available to order	1 Ships within 3–7 business days
32	T2022553 Brakeline Guide	Brakeline Guide	1	$9.74	Out of Stock	Notify Me
33	T2040811 Twin Clip, Brake Hose	Twin Clip, Brake Hose	1	$2.63	Available to order	1 Ships within 3–7 business days
34	T3700061 Clip, Cable Double	Clip, Cable Double	1	$5.30	Available to order	1 Ships within 3–7 business days
35	T3701098 Firtree, Dia 5 x 18	Firtree, Dia 5 x 18	1	$5.24	Available to order	1 Ships within 3–7 business days
