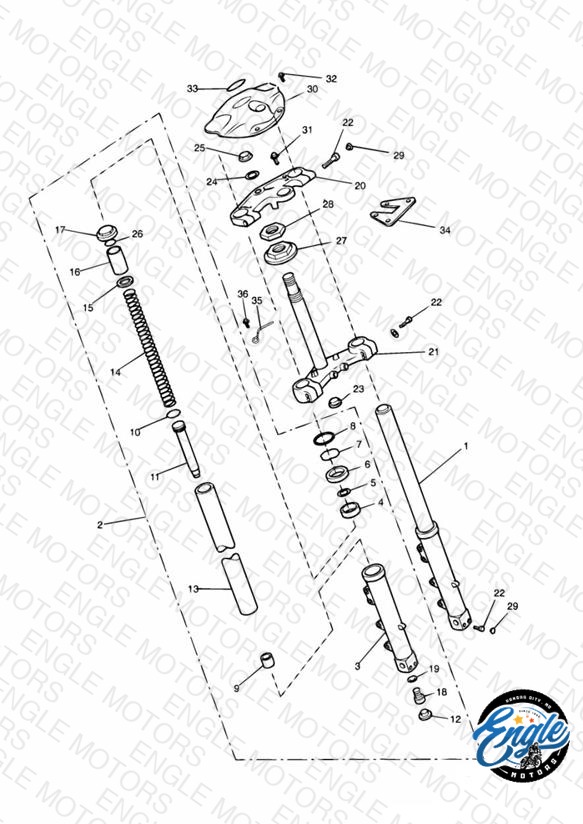

Triumph Trophy Front Forks and Yokes 96152 » » 98479 — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2042801 Stanchion assembly	Stanchion assembly LH	1	$1003.41	Out of Stock	Notify Me
2	T2042802 Stanchion assembly	Stanchion assembly RH	1	$907.35	Obsolete	View Details
3	T2042927 Tube outer	Tube outer LH	1	$499.32	Obsolete	View Details
3	T2042926 Tube outer	Tube outer RH	1	$499.32	Obsolete	View Details
4	T2045862 Guide, Bush	Guide, Bush	2	$12.55	Available to order	2 Ships within 3–7 business days
5	T2046246 Seal, Spacer	Seal, Spacer	2	$5.98	Out of Stock	Notify Me
6	T2042894 Oil seal	Oil seal	2	$21.36	Available to order	2 Ships within 3–7 business days
7	T2046248 Stop Ring	Stop Ring	2	$6.83	Available to order	2 Ships within 3–7 business days
8	T2042897 Dust seal	Dust seal	2	$20.03	Out of Stock	Notify Me
9	T2042906 Oil lock	Oil lock	2	$10.28	Available to order	2 Ships within 3–7 business days
10	T2042888 Fork Leg Piston Ring	Fork Leg Piston Ring	2	$10.18	Available to order	2 Ships within 3–7 business days
11	T2042928 Cylinder assembly	Cylinder assembly	2	$274.52	Obsolete	View Details
12	T3450062 Plug, Plastic, Black	Plug, Plastic, Black	2	$1.40	Out of Stock	Notify Me
13	T2042915 Tube inner	Tube inner	2	$475.29	Available to order	2 Ships within 3–7 business days
14	T2042901 Spring	Spring	2	$108.34	Available to order	2 Ships within 3–7 business days
15	T2042902 Guide spring	Guide spring	2	$12.70	Available to order	2 Ships within 3–7 business days
16	T2042903 Spacer	Spacer	2	$9.69	Out of Stock	Notify Me
17	T2042904 Cap	Cap	2	$81.75	Available to order	2 Ships within 3–7 business days
18	T2042908 Capscrew	Capscrew	2	$10.90	Out of Stock	Notify Me
19	T2042907 Sealing washer	Sealing washer	2	$1.13	Available to order	2 Ships within 3–7 business days
20	T2042815 Yoke assembly	Yoke assembly Upper	1	$203.45	Obsolete	View Details
21	T2042810 Yoke assembly	Yoke assembly Lower	1	$363.73	Obsolete	View Details
22	T3050073 Capscrew	Capscrew M8 x 40mm	10	$5.88	Available to order	10 Ships within 3–7 business days
23	T3450250 Moss Plug	Moss Plug	1	$1.40	Available to order	1 Ships within 3–7 business days
24	T2040188 Washer	Washer	1	$5.92	Obsolete	View Details
25	T2040060 Nut	Nut	1	$24.83	Out of Stock	Notify Me
26	T2042905 O Ring, Fork Seal	O Ring, Fork Seal	2	$3.39	Available to order	2 Ships within 3–7 business days
27	T2040259 Cover, Headstock Assy	Cover, Headstock Assy Lower	1	$24.33	Out of Stock	Notify Me
28	T2140210 Adjuster Nut, Upper	Adjuster Nut, Upper	1	$3.39	Available to order	1 Ships within 3–7 business days
29	T3450200 Plug, Caphead, Chrome	Plug, Caphead, Chrome	4	$4.19	Available to order	4 Ships within 3–7 business days
30	T2040156 Cover	Cover	1	$22.60	Obsolete	View Details
31	T3450270 Retainer	Retainer	2	$0.75	Available to order	2 Ships within 3–7 business days
32	T3450265 Firtree plug	Firtree plug PART NO LONGER AVAILABLE	2	$1.18	Obsolete	View Details
33	T3900450 Badge, Oval, Plastic	Badge, Oval, Plastic	1	$8.53	Out of Stock	Notify Me
34	T2500028 Bracket	Bracket	1	$3.59	Available to order	1 Ships within 3–7 business days
35	T2040878 Clip cable	Clip cable	1	$1942.50	Obsolete	View Details
36	T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv	Screw, Pan/Hd, Tx, M6 x 12, Slv M6 x 12mm Black	1	$0.97	Available to order	1 Ships within 3–7 business days
