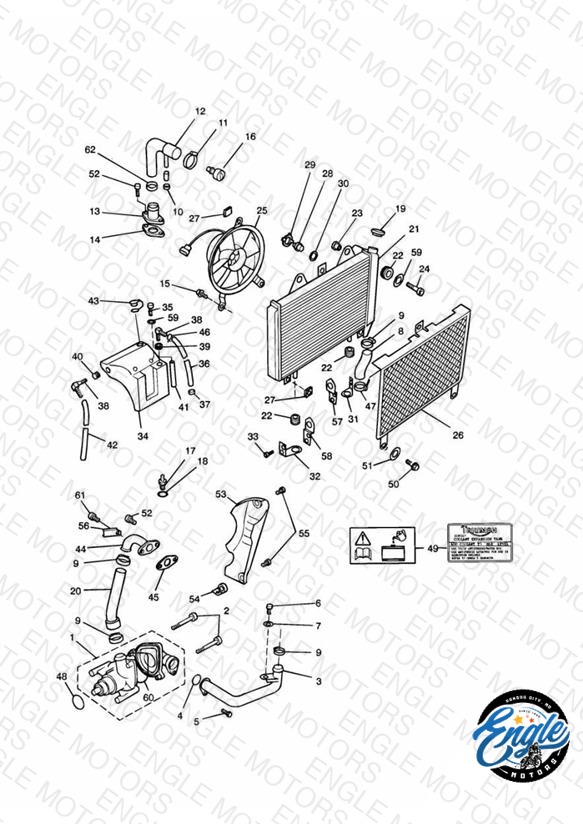

Cooling System 4 Cylinder Engines
Parts (71)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2100006-T0301 Water pump assy | Water pump assy » 4901 Silver | 1 | $292.22 | Out of Stock | Notify Me |
| 1 | 2100013-T0301 Water pump assy | Water pump assy 4902 » Grey | 1 | $279.42 | Obsolete | View Details |
| 2 | 3200027-T0301 Bolt | Bolt » 4901 M6 x 65mm Silver | 2 | $2.76 | Obsolete | View Details |
| 2 | T3205075 Bolt, HHF, Lghtd, M6 x 65, Slv | Bolt, HHF, Lghtd, M6 x 65, Slv 4902 » | 2 | $3.77 | Available to order | 2 |
| 3 | 2100115-T0301 Water pipe | Water pipe » 4901 Black | 1 | $18.48 | Obsolete | View Details |
| 3 | 2100048-T0301 Water pipe | Water pipe 4902 » Grey | 1 | $37.19 | Obsolete | View Details |
| 4 | T3600036 O ring | O ring | 1 | $1.40 | Available to order | 1 |
| 5 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.72 | Out of Stock | Notify Me |
| 6 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 1 | $1.21 | Available to order | 1 |
| 7 | 3550030-T0301 Washer fibre | Washer fibre M8 -**PART NO LONGER AVAILABLE** | 1 | $0.51 | Obsolete | View Details |
| 8 | T2100057 Hose | Hose | 1 | $31.21 | Obsolete | View Details |
| 9 | T2102242 Hose Clip, 23-35, Bright, Ss | Hose Clip, 23-35, Bright, Ss | 4 | $7.73 | Out of Stock | Notify Me |
| 10 | T2102280 Hose Clip, 12 x 25 | Hose Clip, 12 x 25 | 1 | $6.99 | Obsolete | View Details |
| 11 | T2102231 Hose Clip, 32 x 50 | Hose Clip, 32 x 50 | 1 | $2.37 | Obsolete | View Details |
| 12 | 2100010-T0301 Hose | Hose | 1 | $52.93 | Obsolete | View Details |
| 13 | 2100114-T0301 Connection water outlet | Connection water outlet | 1 | $8.97 | Obsolete | View Details |
| 14 | T2100054 Gasket, Cyl Head Outlet | Gasket, Cyl Head Outlet | 1 | $1.50 | Available to order | 1 |
| 15 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 3 | $0.97 | Available to order | 3 |
| 16 | 2102130-T0301 Thermostat | Thermostat | 1 | $32.52 | Unavailable | View Details |
| 17 | 2102150-T0301 Sensor temperature | Sensor temperature | 1 | $40.87 | Available to order | 1 |
| 18 | 3550020-T0301 Sealing Washer, M10 | Sealing Washer, M10 | 1 | $0.90 | Obsolete | View Details |
| 19 | T2100074 Cap Assy | Cap Assy | 1 | $26.62 | Available to order | 1 |
| 20 | T2100008 Hose, Water Pump Outlet | Hose, Water Pump Outlet | 1 | $36.11 | Available to order | 1 |
| 21 | 2101100-T0301 Radiator | Radiator All countries » 2435 then UK,DE & NL » 4901 | 1 | $766.38 | Obsolete | View Details |
| 21 | 2101120-T0301 Radiator | Radiator All countries except UK, DE & NL, 2436 » | 1 | $685.45 | Obsolete | View Details |
| 22 | T3020300 Grommet, Dia 19.5 x 4 Panel | Grommet, Dia 19.5 x 4 Panel | 4 | $3.39 | Available to order | 4 |
| 23 | 3010230-T0301 Flanged sleeve | Flanged sleeve All countries » 2435 then UK,DE & NL » 4901 | 2 | $5.63 | Obsolete | View Details |
| 23 | T3010262 Flanged sleeve | Flanged sleeve All countries except UK, DE & NL, 2436 » | 2 | $4.93 | Obsolete | View Details |
| 24 | 3050034-T0301 Capscrew | Capscrew M8 x 25mm | 2 | $0.57 | Out of Stock | Notify Me |
| 25 | 2101201-T0301 Fan assembly | Fan assembly » 5835 | 1 | $422.46 | Out of Stock | Notify Me |
| 25 | 2101202-T0301 Fan assembly | Fan assembly 5836 » | 1 | $396.11 | Available to order | 1 |
| 26 | T2100129 Grille | Grille All countries » 2435 then UK,DE & NL » 4901 | 1 | $24.91 | Obsolete | View Details |
| 26 | 2100029-T0301 Grille | Grille All countries except UK, DE & NL, 2436 » | 1 | $22.28 | Obsolete | View Details |
| 27 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 5 | $4.92 | Backorder — Early August 2026 | 5 |
| 28 | 2101270-T0301 Switch | Switch Radiator fan | 1 | $53.52 | Obsolete | View Details |
| 29 | 2101274-T0301 Retainer | Retainer | 1 | $1.13 | Available to order | 1 |
| 30 | 2101272-T0301 Seal | Seal **PART NO LONGER AVAILABLE** | 1 | $2.44 | Obsolete | View Details |
| 31 | 2101410-T0301 Mounting bracket | Mounting bracket Lower LH | 1 | $2.17 | Out of Stock | Notify Me |
| 32 | T2101411 Radiator Mounting Bracket, RH | Radiator Mounting Bracket, RH Lower RH | 1 | $3.11 | Obsolete | View Details |
| 34 | 2100117-T0301 Expansion tank | Expansion tank » 20144 | 1 | $67.00 | Obsolete | View Details |
| 34 | T2100400 Expansion tank | Expansion tank 20145 » | 1 | $63.81 | Obsolete | View Details |
| 35 | T3331111 Screw, Pan/Hd, Tx, M6 x 55, Slv | Screw, Pan/Hd, Tx, M6 x 55, Slv » 20144 | 2 | $6.73 | Backorder — Late July 2026 | 2 |
| 35 | T3300062 Pop Rivet | Pop Rivet 20145 » | 2 | $2.25 | Available to order | 2 |
| 36 | T3620305 Pipe | Pipe | 1 | $5.30 | Backorder — Late July 2026 | 1 |
| 37 | 3700075-T0301 Hose clip | Hose clip | 1 | $1.94 | Obsolete | View Details |
| 38 | T2100405 Elbow, ID 8.0 Tube | Elbow, ID 8.0 Tube | 2 | $1.40 | Available to order | 2 |
| 39 | 3450075-T0301 Grommet | Grommet | 1 | $1.12 | Obsolete | View Details |
| 40 | T3450035 Grommet, Dia 8, Dia 12.5, 3 | Grommet, Dia 8, Dia 12.5, 3 | 1 | $2.10 | Available to order | 1 |
| 41 | T3620320 Pipe, Expansion Tank, Internal | Pipe, Expansion Tank, Internal Internal Expansion tank | 1 | $1.40 | Available to order | 1 |
| 43 | T2100997 Cap, Expansion Tank | Cap, Expansion Tank Expansion tank | 1 | $9.52 | Available to order | 1 |
| 44 | 2102138-T0301 Inlet | Inlet » 4901 | 1 | $32.52 | Obsolete | View Details |
| 44 | 2102139-T0301 Inlet elbow | Inlet elbow 4902 » | 1 | $30.36 | Obsolete | View Details |
| 45 | T2102143 Gasket | Gasket | 1 | $1.40 | Available to order | 1 |
| 46 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.42 | Available to order | 1 |
| 47 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
| 48 | 3600160-T0301 O Ring, Water Pump | O Ring, Water Pump | 1 | $9.02 | Available to order | 1 |
| 49 | T3900016 Label | Label **PART NO LONGER AVAILABLE** | 1 | $2.68 | Obsolete | View Details |
| 50 | 3330504-T0301 Screw, M6 x 20 | Screw, M6 x 20 All countries except UK, DE & NL, 2436 » | 5 | $2.22 | Available to order | 5 |
| 50 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc All countries » 2435 then UK,DE & NL » 4901 | 3 | $1.40 | Available to order | 3 |
| 51 | 3550060-T0301 Washer, Plastic, 14.3 x 2.0 | Washer, Plastic, 14.3 x 2.0 All countries except UK, DE & NL, 2436 » | 3 | $0.70 | Obsolete | View Details |
| 52 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 3 | $2.63 | Available to order | 3 |
| 53 | 2100051-T0301 Cover | Cover 4902 » | 1 | $122.75 | Obsolete | View Details |
| 54 | 2100046-T0301 Bracket | Bracket 4902 » | 1 | $7.62 | Out of Stock | Notify Me |
| 56 | T2100049 Bracket | Bracket | 1 | $2.10 | Available to order | 1 |
| 57 | T2101412 Mounting bracket | Mounting bracket LH | 1 | $2.79 | Obsolete | View Details |
| 58 | T2101413 Bracket | Bracket RH | 1 | $2.79 | Obsolete | View Details |
| 59 | T3550135 Washer | Washer | 2 | $0.79 | Obsolete | View Details |
| 60 | T3600230 Seal | Seal | 1 | $5.78 | Available to order | 1 |
| 61 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 1 | $5.30 | Available to order | 1 |
| 62 | T2012144 Stud, Sprocket Carrier | Stud, Sprocket Carrier | 1 | $7.62 | Available to order | 1 |
| 63 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not Illustrated | — | $187.12 | Available to order | 1 |
