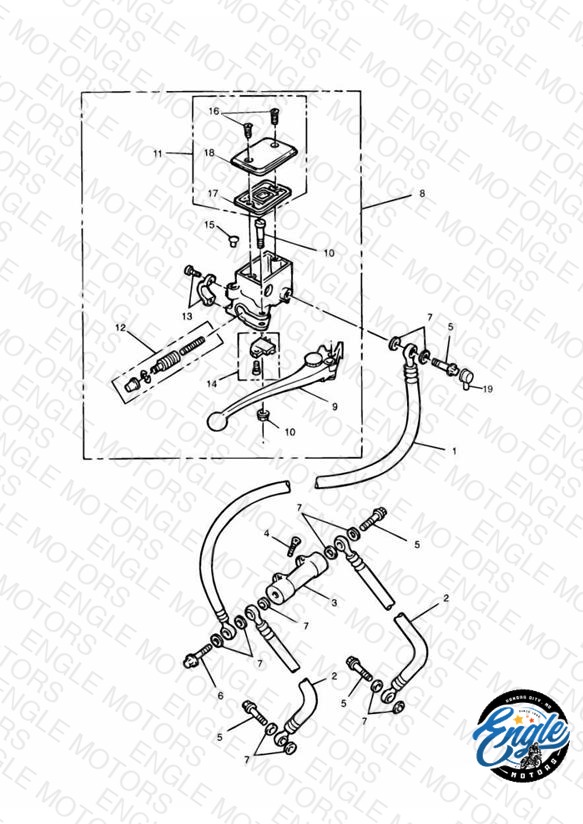

Front Brake Master Cylinder
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2020009-T0301 Brake hose | Brake hose » 4901 Upper | 1 | $55.12 | Out of Stock | Notify Me |
| 1 | 2023060-T0301 Brake hose | Brake hose 4902 » Upper | 1 | $47.12 | Obsolete | View Details |
| 2 | T2020649 Brake hose | Brake hose » 4901 Lower 3 & 4 Cyl | 2 | $68.42 | Out of Stock | Notify Me |
| 2 | 2020030-T0301 Brake hose | Brake hose 4902 » 4 Cyl | 2 | $55.12 | Available to order | 2 |
| 3 | 2020012-T0301 Joint | Joint | 1 | $13.94 | Obsolete | View Details |
| 4 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 2 | $5.30 | Available to order | 2 |
| 5 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 4 | $7.02 | Available to order | 4 |
| 6 | T3250019 Bolt, Banjo, M10 x 31 | Bolt, Banjo, M10 x 31 | 1 | $6.29 | Available to order | 1 |
| 7 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 11 | $1.07 | Available to order | 11 |
| 8 | 2020750-T0301 Master cylinder assembly | Master cylinder assembly » 4901 3 & 4 Cyl | 1 | $401.52 | Obsolete | View Details |
| 8 | 2020751-T0301 Master cylinder assembly | Master cylinder assembly » 4901 FR 3 & 4 Cyl | 1 | $448.88 | Out of Stock | Notify Me |
| 8 | 2020100-T0301 Master cylinder assembly | Master cylinder assembly 4902 » 4 Cyl | 1 | $401.52 | Obsolete | View Details |
| 8 | 2020101-T0301 Master cylinder assembly | Master cylinder assembly 4902 » FR 4 Cyl | 1 | $448.88 | Available to order | 1 |
| 9 | T2020110 Lever Assy, Adj, Front M/Cyl | Lever Assy, Adj, Front M/Cyl | 1 | $87.92 | Backorder — Mid August 2026 | 1 |
| 10 | T2020158 Lever, Bolt, Front M/Cyl | Lever, Bolt, Front M/Cyl | 1 | $13.56 | Available to order | 1 |
| 11 | T2020152 Top Set, Front M/Cyl | Top Set, Front M/Cyl | 1 | $58.92 | Available to order | 1 |
| 11 | 2020188-T0301 Cover set | Cover set FR | 1 | $44.41 | Obsolete | View Details |
| 12 | T2020003 Piston Set, M/Cyl, 14.0 | Piston Set, M/Cyl, 14.0 » 4901 3 & 4 Cyl | 1 | $57.03 | Available to order | 1 |
| 12 | T2020002 Piston Set, M Cylinder | Piston Set, M Cylinder 4902 » 4 Cyl | 1 | $61.79 | Available to order | 1 |
| 13 | T2020156 M/Cyl Holder Set | M/Cyl Holder Set | 1 | $26.56 | Available to order | 1 |
| 14 | T2021217 Switch Set | Switch Set | 1 | $24.43 | Available to order | 1 |
| 15 | T3450015 Plug, M10 | Plug, M10 Blanks mirror mounting | 1 | $1.40 | Available to order | 1 |
| 16 | T2020166 Screw, Reservoir | Screw, Reservoir | 2 | $1.91 | Available to order | 2 |
| 17 | T2020164 Diaphragm, Reservoir | Diaphragm, Reservoir | 1 | $11.41 | Available to order | 1 |
| 18 | 2020004-T0301 Cover | Cover | 1 | $35.12 | Obsolete | View Details |
| 18 | 2020005-T0301 Cover | Cover FR | 1 | $36.88 | Obsolete | View Details |
| 19 | T2020074 Boot cover | Boot cover | 1 | $2.10 | Available to order | 1 |
