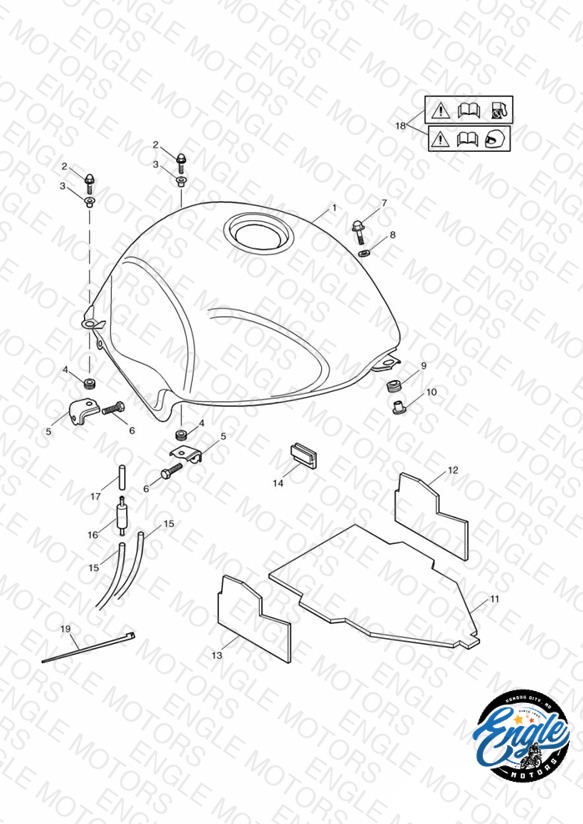

Loading schematic...
Fuel Tank and Fittings
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2400618-CM Fuel tank | Fuel tank » 115673 Tornado Red; Includes items 11, 12 & 13 | 1 | $844.20 | Obsolete | View Details |
| 1 | T2400618-PG Fuel tank | Fuel tank » 115673 Jet Black; Includes items 11, 12 & 13 | 1 | $844.20 | Obsolete | View Details |
| 1 | T2400618-MH Fuel tank | Fuel tank » 115673 Aluminium; Includes items 11, 12 & 13 | 1 | $844.20 | Obsolete | View Details |
| 1 | T2400618-JD Fuel tank | Fuel tank » 115673 Caspian Blue; Includes items 11, 12 & 13 | 1 | $943.90 | Obsolete | View Details |
| 1 | T2400618-HG Fuel tank | Fuel tank » 115673 Roulette Green; Includes items 11, 12 & 13 | 1 | $844.20 | Obsolete | View Details |
| 1 | T2400619-FA Fuel tank | Fuel tank 115674 » » 161317 Racing Yellow | 1 | $884.84 | Obsolete | View Details |
| 1 | T2400619-JD Fuel tank | Fuel tank 115674 » » 161317 Caspian Blue | 1 | $842.70 | Obsolete | View Details |
| 1 | T2400619-MH Fuel tank | Fuel tank 115674 » » 161317 Aluminium Silver | 1 | $842.70 | Obsolete | View Details |
| 1 | T2400619-PG Fuel tank | Fuel tank 136916 » Jet Black | 1 | $842.70 | Obsolete | View Details |
| 1 | T2400619-CM Fuel tank | Fuel tank 161318 » Tornado Red | 1 | $842.70 | Obsolete | View Details |
| 1 | T2400614-MH Fuel Tank | Fuel Tank 161318 » Aluminium Silver | 1 | $863.38 | Obsolete | View Details |
| 2 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 3 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $5.78 | Available to order | 2 |
| 4 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 2 | $2.85 | Available to order | 2 |
| 5 | T2400800 Bracket | Bracket PART NO LONGER AVAILABLE | 2 | $14.92 | Obsolete | View Details |
| 6 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 2 | $1.72 | Out of Stock | Notify Me |
| 7 | T3202030 Bolt, RHHF, Domed, M6 x 20 | Bolt, RHHF, Domed, M6 x 20 M6 x 40mm Stainless | 1 | $1.22 | Obsolete | View Details |
| 8 | T3550108 Washer | Washer Stainless | 1 | $2.00 | Available to order | 1 |
| 9 | T3020601 Grommet, Castellated | Grommet, Castellated | 1 | $4.01 | Available to order | 1 |
| 10 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 1 | $4.12 | Available to order | 1 |
| 11 | T2400530 Insulation | Insulation | 1 | $28.96 | Available to order | 1 |
| 12 | T2400528 Foam pad | Foam pad RH | 1 | $16.83 | Available to order | 1 |
| 13 | T2400529 Foam pad | Foam pad LH | 1 | $16.83 | Available to order | 1 |
| 14 | T2400643 Rubber Pad, Tank To Frame, Small | Rubber Pad, Tank To Frame, Small | 2 | $2.74 | Backorder — Early August 2026 | 2 |
| 15 | T3620221 Pipe, Fuel Tank Overflow | Pipe, Fuel Tank Overflow | 2 | $2.00 | Available to order | 2 |
| 16 | T2400045 Valve, Roll Over | Valve, Roll Over Rollover US & CA, All Vins SG, » 110499 | 1 | $33.95 | Unavailable | View Details |
| 17 | T4000751 Hose, Twin Wall, NBR/CSM 5 x 8 | Hose, Twin Wall, NBR/CSM 5 x 8 US & CA, All Vins SG, » 110499 | — | $5.02 | Available to order | 1 |
| 18 | T3900132 Label, Fuel Tank, Faired, White | Label, Fuel Tank, Faired, White | 1 | $5.69 | Backorder — Mid August 2026 | 1 |
| 19 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
