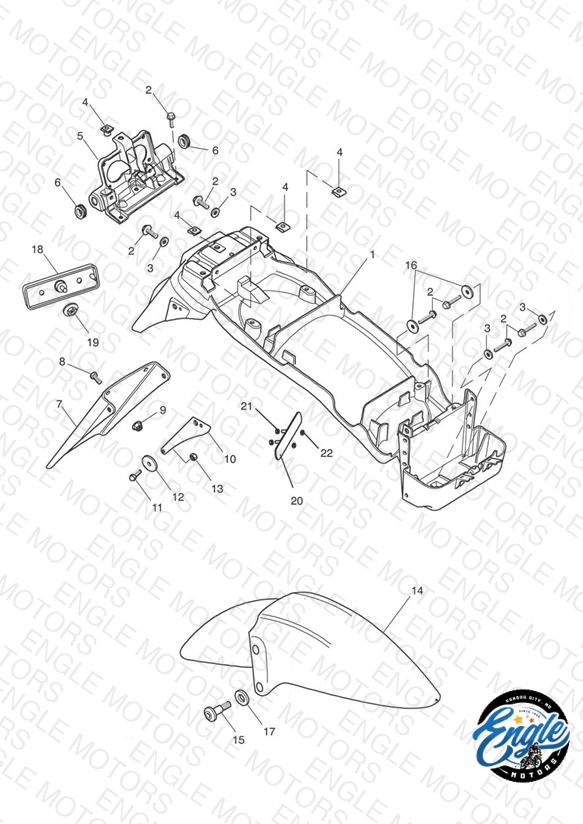

Loading schematic...
Mudguards
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2301189 Rear mudguard | Rear mudguard | 1 | $138.65 | Obsolete | View Details |
| 2 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 9 | $3.50 | Available to order | 9 |
| 3 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 4 | $1.40 | Available to order | 4 |
| 4 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 4 | $4.92 | Backorder — Early August 2026 | 4 |
| 5 | T2303730 Bracket rear lamp | Bracket rear lamp | 1 | $23.92 | Obsolete | View Details |
| 6 | T3020029 Grommet, Side Panel | Grommet, Side Panel | 2 | $2.55 | Available to order | 2 |
| 7 | T2301756 Extension | Extension JP,AR,HK, CH Only | 1 | $84.00 | Obsolete | View Details |
| 8 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv JP,AR,HK, CH Only | 4 | $6.73 | Available to order | 4 |
| 9 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 M5 JP,AR,HK, CH Only | 4 | $2.25 | Available to order | 4 |
| 10 | T2700213 Bracket rear | Bracket rear US & CA, All Vins SG, » 110499 | 2 | $44.77 | Available to order | 2 |
| 11 | T3203115 Bolt, RHHF, M6x1.0x12, S/S | Bolt, RHHF, M6x1.0x12, S/S US & CA, All Vins SG, » 110499 | 2 | $3.17 | Available to order | 2 |
| 12 | T2700284 Reflex Reflector | Reflex Reflector US & CA, All Vins SG, » 110499 | 2 | $3.33 | Available to order | 2 |
| 13 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv US & CA, All Vins SG, » 110499 | 2 | $0.94 | Available to order | 2 |
| 14 | T2304662-PG Kit | Kit » 102879 Front Mudguard Jet Black | 1 | $214.97 | Obsolete | View Details |
| 14 | T2304662-MH Kit | Kit » 102897 Front Mudguard Aluminium | 1 | $192.27 | Obsolete | View Details |
| 14 | T2304662-CM Kit | Kit » 102879 Front Mudguard Tornado Red | 1 | $216.79 | Obsolete | View Details |
| 14 | T2304661-PG Front mudguard | Front mudguard 102880 » » 115673 Jet Black | 1 | $186.31 | Obsolete | View Details |
| 14 | T2304661-MH Front mudguard | Front mudguard 102880 » » 115673 Aluminium | 1 | $186.31 | Obsolete | View Details |
| 14 | T2304661-CM Front mudguard | Front mudguard 102880 » » 115673 Tornado Red | 1 | $186.31 | Obsolete | View Details |
| 14 | T2304661-HG Front mudguard | Front mudguard 115674 » Roulette Green | 1 | $195.63 | Obsolete | View Details |
| 14 | T2304661-JD Front mudguard | Front mudguard » 161317 Caspian Blue | 1 | $195.63 | Obsolete | View Details |
| 14 | T2304661-FA Front mudguard | Front mudguard » 161317 Racing Yellow | 1 | $195.63 | Obsolete | View Details |
| 15 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv » 102797 M6 x 21mm Stainless | 4 | $5.88 | Available to order | 4 |
| 16 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.00 | Available to order | 2 |
| 17 | T3550098 Washer, Nylon, 11.2 x 18 x 1.2 | Washer, Nylon, 11.2 x 18 x 1.2 » 102797 | 4 | $1.27 | Available to order | 4 |
| 18 | T2300593 Spacer | Spacer | 1 | $2.65 | Obsolete | View Details |
| 19 | T2700493 Nut & Washer Assy, M5, Slv | Nut & Washer Assy, M5, Slv | 1 | $1.79 | Available to order | 1 |
| 20 | T2301615 MOUNT, NUMBER PLATE-USA | MOUNT, NUMBER PLATE-USA US & CA 185886> | 1 | $11.36 | Obsolete | View Details |
| 22 | T3350185 WASHER,NYLON,FORM B | WASHER,NYLON,FORM B US & CA 185886> | 1 | $1.06 | Obsolete | View Details |
