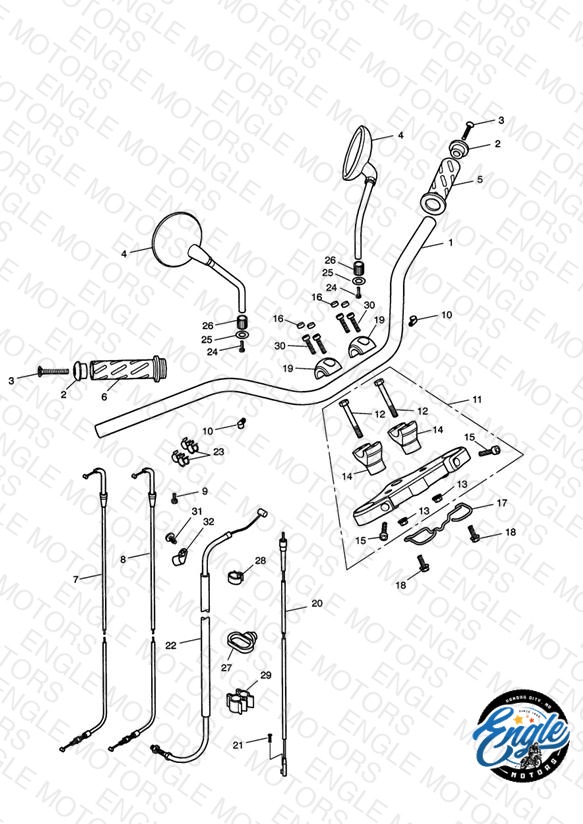

Triumph America Handlebars, Top Yoke, Cables & Mirrors — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2040392 Handlebar Assy, 25.4mm	Handlebar Assy, 25.4mm	1	$197.72	Available to order	1 Ships within 3–7 business days
2	T2043448 Bar End Weight	Bar End Weight	2	$32.60	Available to order	2 Ships within 3–7 business days
3	T3330643 Screw, M5 x 30, CSK SKT, Patch	Screw, M5 x 30, CSK SKT, Patch	2	$2.00	Available to order	2 Ships within 3–7 business days
4	T2066682 Spares Kit, Mirror Assy	Spares Kit, Mirror Assy	2	$129.61	Available to order	2 Ships within 3–7 business days
5	T2043451 Grip, LH	Grip, LH	1	$18.16	Available to order	1 Ships within 3–7 business days
6	T2043452 Grip, RH	Grip, RH	1	$18.16	Available to order	1 Ships within 3–7 business days
7	T2047045 Cable throttle	Cable throttle	1	$47.53	Available to order	1 Ships within 3–7 business days
8	T2047046 Cable throttle	Cable throttle * PART NO LONGER AVAILABLE *	1	$43.72	Obsolete	View Details
9	T3330382 Screw, Phil Pan HD, M5 x 12, Slv	Screw, Phil Pan HD, M5 x 12, Slv	1	$0.44	Available to order	1 Ships within 3–7 business days
10	T2046007 Clip, Cable, Dia 15.9	Clip, Cable, Dia 15.9	2	$4.12	Available to order	2 Ships within 3–7 business days
11	T2047015 Yoke Assy, Upper	Yoke Assy, Upper	1	$292.22	Out of Stock	Notify Me
12	T3202092 Bolt, M10 x 70	Bolt, M10 x 70	2	$7.71	Available to order	2 Ships within 3–7 business days
13	T3350250 Locknut, Flanged, M10	Locknut, Flanged, M10	2	$4.16	Available to order	2 Ships within 3–7 business days
14	T2047008 Clamp, Handlebar, Lower	Clamp, Handlebar, Lower	2	$74.12	Available to order	2 Ships within 3–7 business days
15	T3050175 Kit, 4 x Screw M8 x 1.25 x 30 Slv	Kit, 4 x Screw M8 x 1.25 x 30 Slv	2	$8.46	Available to order	2 Ships within 3–7 business days
16	T3450200 Plug, Caphead, Chrome	Plug, Caphead, Chrome	4	$4.19	Available to order	4 Ships within 3–7 business days
17	T2047026 Cable Guide, Wire	Cable Guide, Wire	1	$12.55	Available to order	1 Ships within 3–7 business days
18	T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv	Bolt, HHF, Lghtd, M8 x 20, Slv	2	$1.62	Backorder — Early August 2026	2
19	T2047009 Clamp, Handlebar, Upper	Clamp, Handlebar, Upper	2	$40.47	Out of Stock	Notify Me
20	T2047047 Cable speedometer	Cable speedometer	1	$40.30	Available to order	1 Ships within 3–7 business days
21	T3331017 Screw. Phil CSK. M5 x 20, Slv	Screw. Phil CSK. M5 x 20, Slv	1	$4.26	Backorder — Early August 2026	1
22	T2047048 Clutch cable	Clutch cable	1	$50.28	Available to order	1 Ships within 3–7 business days
23	T2040811 Twin Clip, Brake Hose	Twin Clip, Brake Hose	2	$2.63	Available to order	2 Ships within 3–7 business days
24	T3330727 Screw, But/Hd, M6 x 20, Slv	Screw, But/Hd, M6 x 20, Slv	2	$3.39	Available to order	2 Ships within 3–7 business days
25	T3550203 Washer, Valve Spring, M10	Washer, Valve Spring, M10	2	$2.17	Available to order	2 Ships within 3–7 business days
26	T3550204 Tolerance Ring, 12x 12	Tolerance Ring, 12x 12	2	$4.74	Available to order	2 Ships within 3–7 business days
27	T2040036 GUIDE, CABLE Replaced by 2040036-T0301 — Cable Guide	GUIDE, CABLE * Part No Longer Available *	1	$10.69	Unavailable	View Details
28	T3700108 Clip, Cable, 14.3 x 10	Clip, Cable, 14.3 x 10	1	$3.24	Available to order	1 Ships within 3–7 business days
29	T2040884 Clip, Twin, Speedo, Brake	Clip, Twin, Speedo, Brake	1	$4.74	Backorder — Late August 2026	1
30	T3051097 Screw, Cap/Hd, M8 x 25, Silver	Screw, Cap/Hd, M8 x 25, Silver	4	$4.12	Available to order	4 Ships within 3–7 business days
31	T3701098 Firtree, Dia 5 x 18	Firtree, Dia 5 x 18	1	$5.24	Available to order	1 Ships within 3–7 business days
32	T3700096 P Clip, Dia 15.9, Plastic, Blk	P Clip, Dia 15.9, Plastic, Blk	1	$4.92	Available to order	1 Ships within 3–7 business days

Part Number

Price

T2040392

Handlebar Assy, 25.4mm

$197.72

Ships within 3–7 business days

T2043448

Bar End Weight

$32.60

Ships within 3–7 business days

T3330643

Screw, M5 x 30, CSK SKT, Patch
