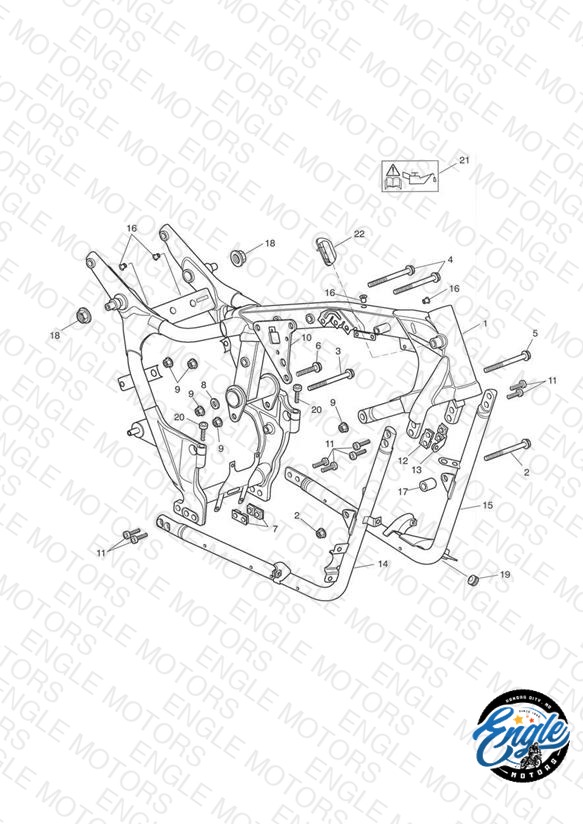

Main Frame & Fittings
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2076032 Frame Assy, World | Frame Assy, World | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2076042 Frame Assy, Americas | Frame Assy, Americas | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2076052 Frame Assy, Canada | Frame Assy, Canada | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2076062 Frame Assy, California | Frame Assy, California | 1 | $2082.04 | Obsolete | View Details |
| 2 | T3334635 Screw, HHF, M12 x 1.25 x 130 | Screw, HHF, M12 x 1.25 x 130 | 1 | $9.22 | Available to order | 1 |
| 4 | T3150304 Bolt, Hex HD, Flgd, M12x85 | Bolt, Hex HD, Flgd, M12x85 | 2 | $3.43 | Obsolete | View Details |
| 5 | T3332526 Bolt, TX, M12 x 1.25 x 150, 10.9, Slv | Bolt, TX, M12 x 1.25 x 150, 10.9, Slv | 1 | $21.41 | Out of Stock | Notify Me |
| 6 | T3151021 Bolt, HHF, M12 x 55, 10.9, Slv | Bolt, HHF, M12 x 55, 10.9, Slv | 1 | $6.14 | Available to order | 1 |
| 7 | T2075055 Bracket, M10 | Bracket, M10 | 2 | $15.12 | Available to order | 2 |
| 8 | T3550614 Washer, 12 x 23 x 2 | Washer, 12 x 23 x 2 | 1 | $0.97 | Available to order | 1 |
| 9 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 6 | $6.07 | Available to order | 6 |
| 10 | T2076410 Bracket, Rear Cyl Hd Mount | Bracket, Rear Cyl Hd Mount | 1 | $33.36 | Out of Stock | Notify Me |
| 11 | T3203206 Screw, Cap/Hd, M10 x 35, Slv | Screw, Cap/Hd, M10 x 35, Slv > 346674 | 1 | $6.67 | Available to order | 1 |
| 12 | T2076440 Bracket | Bracket Oil cooler mounting | 1 | $10.51 | Obsolete | View Details |
| 13 | T2076441 Bracket, Horn | Bracket, Horn | 1 | $12.83 | Available to order | 1 |
| 14 | T2076701 Cradle Assy, RH | Cradle Assy, RH RH | 1 | $186.13 | Obsolete | View Details |
| 15 | T2076750 Cradle assembly | Cradle assembly LH | 1 | $218.13 | Obsolete | View Details |
| 16 | T3350216 Threaded Insert, M6 | Threaded Insert, M6 | 4 | $3.39 | Available to order | 4 |
| 17 | T2076421 Spacer, Aluminium, Blk | Spacer, Aluminium, Blk | 1 | $6.73 | Available to order | 1 |
| 18 | T3350680 Nut, Flgd M24 | Nut, Flgd M24 | 2 | $5.42 | Out of Stock | Notify Me |
| 19 | T3020163 Rubber Foot, Push In | Rubber Foot, Push In | 1 | $11.79 | Available to order | 1 |
| 21 | T3900136 Label, Engine Oil | Label, Engine Oil | 1 | $2.85 | Available to order | 1 |
| 22 | T3020004 Grommet | Grommet | 1 | $7.42 | Available to order | 1 |
