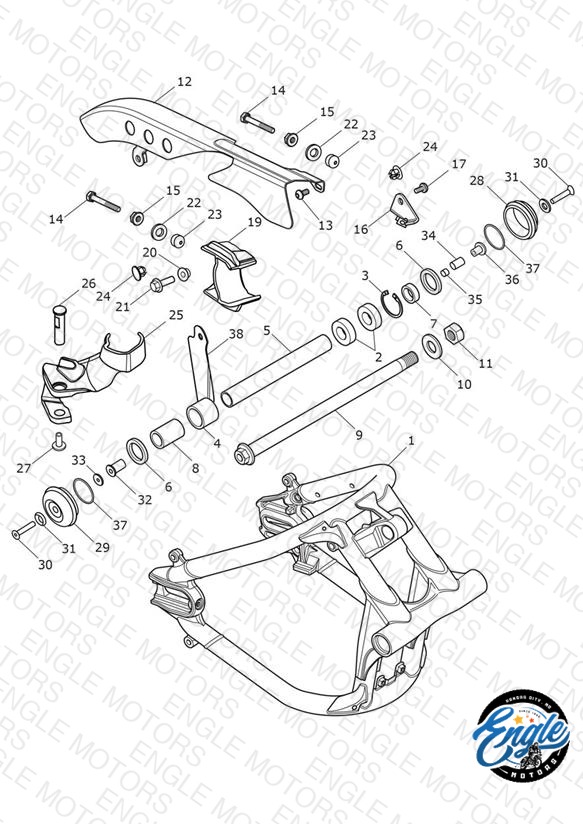

Triumph Bonneville Bobber Swingarm Assembly — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2050426 Swingarm Assembly	Swingarm Assembly Includes items: 2, 3, 4, 5, 6, 7 & 8	1	$2182.86	Available to order	1 Ships within 3–7 business days
2	T3800506 Bearing, Ball, 17 x 35 x 10	Bearing, Ball, 17 x 35 x 10	2	$19.29	Available to order	2 Ships within 3–7 business days
3	T3500204 Circlip, Int, 35 x 1.5	Circlip, Int, 35 x 1.5	1	$0.97	Available to order	1 Ships within 3–7 business days
4	T3800014 Roller bearing	Roller bearing	1	$14.32	Available to order	1 Ships within 3–7 business days
5	T2054096 Spacer, Internal, 22 x 174.5	Spacer, Internal, 22 x 174.5	1	$61.79	Available to order	1 Ships within 3–7 business days
6	T3600044 Oil Seal, 35 25 4	Oil Seal, 35 25 4	2	$10.44	Available to order	2 Ships within 3–7 business days
7	T2054063 Spacer, 25 x 17 x 8.5	Spacer, 25 x 17 x 8.5	1	$8.01	Available to order	1 Ships within 3–7 business days
8	T2054344 Sleeve, Ground, 25 x 17 x 37	Sleeve, Ground, 25 x 17 x 37	1	$13.21	Available to order	1 Ships within 3–7 business days
9	T2012012 Bolt	Bolt	1	$35.64	Available to order	1 Ships within 3–7 business days
10	T3551240 Washer, M16 x 34 x 3	Washer, M16 x 34 x 3	1	$2.63	Available to order	1 Ships within 3–7 business days
11	T3350155 Locknut, Thin, M16	Locknut, Thin, M16	1	$9.41	Available to order	1 Ships within 3–7 business days
12	T2059777 Chainguard, Pressed, Black	Chainguard, Pressed, Black	1	$88.80	Out of Stock	Notify Me
13	T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc	Screw, Pan/Hd, Tx, M6 x 12, Enc	1	$1.40	Available to order	1 Ships within 3–7 business days
14	T3203205 Screw, H/Hd, M8 x 50, Slv	Screw, H/Hd, M8 x 50, Slv	2	$2.05	Available to order	2 Ships within 3–7 business days
15	T3350301 Nut, Flanged, M8, Silver	Nut, Flanged, M8, Silver	2	$0.81	Available to order	2 Ships within 3–7 business days
16	T2025599 Bracket, Brake Hose, Rear	Bracket, Brake Hose, Rear	1	$6.65	Out of Stock	Notify Me
19	T2050378 Chain Rubbing Strip	Chain Rubbing Strip	1	$39.18	Available to order	1 Ships within 3–7 business days
20	T3010061 Flanged Sleeve, M6 x 9 x 3.25	Flanged Sleeve, M6 x 9 x 3.25	1	$7.22	Available to order	1 Ships within 3–7 business days
21	T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc	Bolt, HHF, Lghtd, M6 x 20, Enc	1	$5.60	Available to order	1 Ships within 3–7 business days
22	T2050398 Spacer, 16 x 8.4 x 3	Spacer, 16 x 8.4 x 3	2	$11.56	Available to order	2 Ships within 3–7 business days
23	T3450108 Stand Off Rubber	Stand Off Rubber	2	$2.55	Backorder — Mid August 2026	2
24	T3700180 Plug, Hole, Plastic	Plug, Hole, Plastic	2	$2.55	Available to order	2 Ships within 3–7 business days
25	T2059503 Kit, Chain Rubbing Strip, Rear	Kit, Chain Rubbing Strip, Rear > 846465 All Except BR & IN; > 849000 BR & IN Only(contains: rubbing strip, compression Limiter & screw)	1	$50.37	Backorder — Late July 2026	1
25	T2059371 Chain Rubbing Strip, Rear	Chain Rubbing Strip, Rear 846466 > All Except BR & IN; 849001 > BR & IN Only	1	$36.48	Available to order	1 Ships within 3–7 business days
26	T2050429 Compression Limiter	Compression Limiter > 846465 All Except BR & IN; > 849000 BR & IN Only	1	$5.30	Out of Stock	Notify Me
26	T2059401 Compression Limiter	Compression Limiter 846466 > All Except BR & IN; 849001 > BR & IN Only	1	$5.30	Out of Stock	Notify Me
27	T3330955 Screw, But/Hd, M5 x 14, Slv, Enc	Screw, But/Hd, M5 x 14, Slv, Enc	1	$8.46	Available to order	1 Ships within 3–7 business days
28	T2052662 Cover, Swingarm Pivot, LH	Cover, Swingarm Pivot, LH	1	$19.50	Available to order	1 Ships within 3–7 business days
29	T2052663 Cover, Swingarm Pivot, RH	Cover, Swingarm Pivot, RH	1	$19.50	Available to order	1 Ships within 3–7 business days
30	T3330678 Screw, Csk, M5 x 30, S/S	Screw, Csk, M5 x 30, S/S	2	$3.33	Available to order	2 Ships within 3–7 business days
31	T3550265 Washer, M5, C'sunk	Washer, M5, C'sunk	2	$4.19	Available to order	2 Ships within 3–7 business days
32	T3350050 Wellnut, M5	Wellnut, M5	1	$6.65	Available to order	1 Ships within 3–7 business days
33	T3550286 Washer, 5.3 x 18 x 1.6	Washer, 5.3 x 18 x 1.6	1	$1.62	Backorder — Late August 2026	1
34	T2050376 Tube, ID 5.2, OD 7.5, 14 Long	Tube, ID 5.2, OD 7.5, 14 Long	1	$18.16	Available to order	1 Ships within 3–7 business days
35	T3350199 Nut, M5, Cylindrical	Nut, M5, Cylindrical	1	$4.55	Available to order	1 Ships within 3–7 business days
36	T3010706 Flanged Sleeve, 5.2 x 7 x 6.3	Flanged Sleeve, 5.2 x 7 x 6.3	1	$5.30	Available to order	1 Ships within 3–7 business days
37	T3601470 O Ring, ID 32.5 x 3	O Ring, ID 32.5 x 3	2	$3.39	Available to order	2 Ships within 3–7 business days
38	T2059997 Protector, Swingarm	Protector, Swingarm	1	$41.26	Available to order	1 Ships within 3–7 business days
