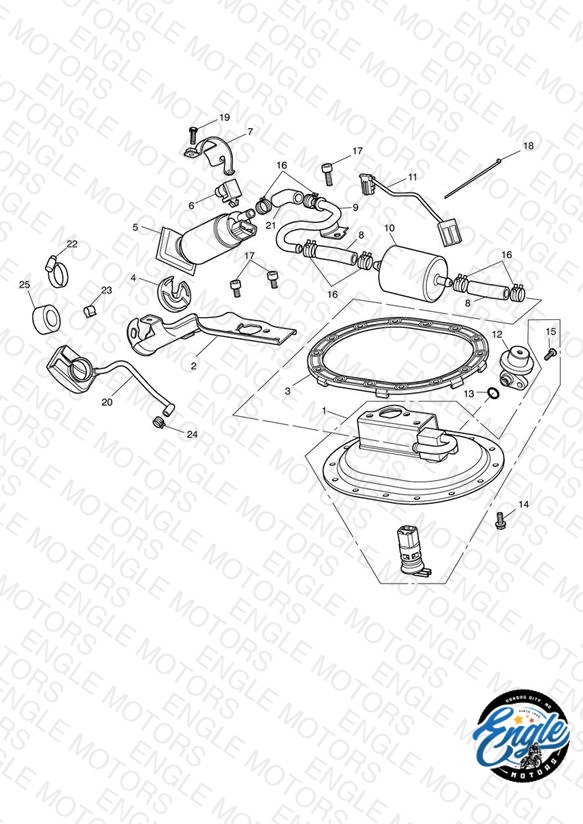

Fuel Pump & Fittings
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2406009 Kit, Pump Plate & O Ring | Kit, Pump Plate & O Ring F4 > 351598 & F2 > 360306 | 1 | $241.45 | Out of Stock | Notify Me |
| 2 | T2403106 Pressing, Fuel Pump | Pressing, Fuel Pump | 1 | $26.08 | Available to order | 1 |
| 3 | T2401151 Seal, Fuel Pump Plate, E25 | Seal, Fuel Pump Plate, E25 | 1 | $35.59 | Available to order | 1 |
| 4 | T1247557 Cushion, Fuel Pump | Cushion, Fuel Pump | 1 | $9.03 | Available to order | 1 |
| 5 | T1247559 Fuel Pump | Fuel Pump | 1 | $264.04 | Available to order | 1 |
| 6 | T2400645 Fuel Sensor, Low Level Warning | Fuel Sensor, Low Level Warning | 1 | $241.45 | Available to order | 1 |
| 7 | T2403107 Bracket, Thermister | Bracket, Thermister | 1 | $14.58 | Available to order | 1 |
| 8 | T3620395 Fuel Hose, 45mm | Fuel Hose, 45mm | 2 | $9.88 | Available to order | 2 |
| 9 | T2403104 Pipe Assy, Fuel Pump | Pipe Assy, Fuel Pump | 1 | $66.17 | Available to order | 1 |
| 10 | T1240850 Fuel Filter | Fuel Filter | 1 | $68.07 | Available to order | 1 |
| 11 | T1240847 Fly Lead, Fuel Pump | Fly Lead, Fuel Pump | 1 | $23.95 | Available to order | 1 |
| 12 | T1241093 Fuel Pressure Regulator | Fuel Pressure Regulator | 1 | $84.58 | Available to order | 1 |
| 13 | T3600098 O Ring, ID 10 x 2.0 | O Ring, ID 10 x 2.0 | 1 | $1.21 | Available to order | 1 |
| 14 | T3330892 Bolt, RHHF, M5 x 15, S5041 | Bolt, RHHF, M5 x 15, S5041 | 14 | $1.13 | Available to order | 14 |
| 15 | T3332130 Bolt, H/HD, M4 x 16, Slv | Bolt, H/HD, M4 x 16, Slv F4 > 351598 & F2 > 360306 | 1 | $0.57 | Available to order | 1 |
| 15 | T3050139 Screw, Cap/Hd, M5 x 16, S/S | Screw, Cap/Hd, M5 x 16, S/S F2 - 360307 > & F4 - 351599 > | 1 | $3.59 | Available to order | 1 |
| 16 | T3700089 Hose Clip, Dia 12.5 | Hose Clip, Dia 12.5 | 7 | $4.01 | Available to order | 7 |
| 17 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 3 | $0.57 | Backorder — Late August 2026 | 3 |
| 18 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 2 | $0.89 | Available to order | 2 |
| 19 | T3050308 Screw, Cap/Hd, M4 x 8 | Screw, Cap/Hd, M4 x 8 | 1 | $5.14 | Available to order | 1 |
| 20 | T2401270 Baffle, Fuel Pump | Baffle, Fuel Pump | 1 | $43.51 | Available to order | 1 |
| 21 | T3620363 Hose, Fuel, 55mm | Hose, Fuel, 55mm | 1 | $9.88 | Available to order | 1 |
| 22 | T2102116 Clip, Hose, 11-12.5 | Clip, Hose, 11-12.5 | 1 | $6.55 | Available to order | 1 |
| 23 | T3700330 Clip Hose, DIA 9.1mm | Clip Hose, DIA 9.1mm > 330524 - F2; > 336809 - F4 | 1 | $8.01 | Available to order | 1 |
| 24 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.42 | Available to order | 1 |
| 25 | T2400224 Filter, Fuel Pump Baffle | Filter, Fuel Pump Baffle | 1 | $17.37 | Available to order | 1 |
