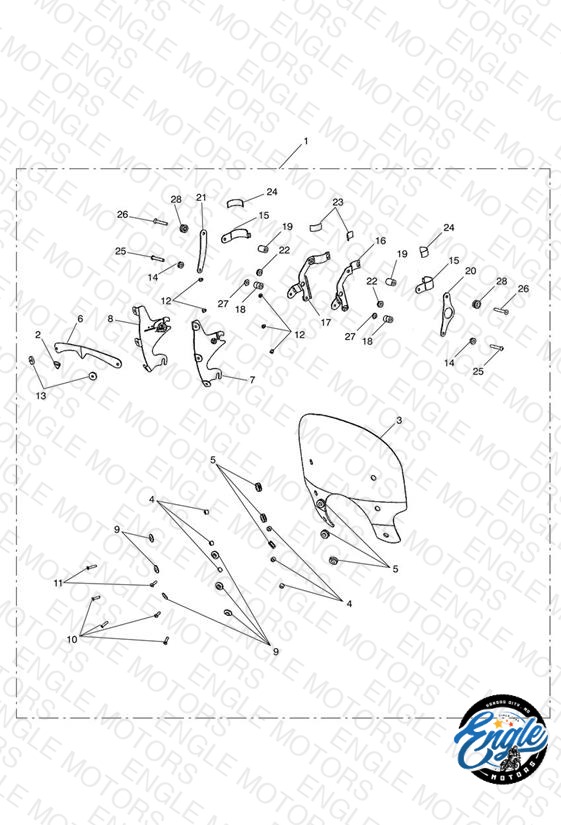

Triumph Bonneville Quick Release, Summer — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	A9708220 Q/R SUMMER SCREEN -	Q/R SUMMER SCREEN - 10.63" from cut out, includes mounting hardware - Not suitable for Steve McQueen Edition	1	$92.00	Obsolete	View Details
2	A9930127 Badge, 30mm, Pressed	Badge, 30mm, Pressed	1	$10.50	Obsolete	View Details
3	A9700753 Windshield, Summer	Windshield, Summer Not structured in kit - Spares condition only	1	$189.00	Obsolete	View Details
4	A9700734 Sleeve, 12.7 x 9.4 x 6.35	Sleeve, 12.7 x 9.4 x 6.35 Not structured in kit - Spares condition only	6	$4.65	Obsolete	View Details
5	A9700735 Bung, Rubber, Windshield	Bung, Rubber, Windshield Not structured in kit - Spares condition only	6	$5.30	Obsolete	View Details
6	A9700755 Brace, Front, Windshield	Brace, Front, Windshield Not structured in kit - Spares condition only	1	$33.00	Obsolete	View Details
7	A9700704 Brkt, Vert, LH	Brkt, Vert, LH Not structured in kit - Spares condition only	1	$40.00	Obsolete	View Details
8	A9700703 Brkt, Vert, RH	Brkt, Vert, RH Not structured in kit - Spares condition only	1	$39.00	Obsolete	View Details
9	A9910075 Washer, Finishing	Washer, Finishing Not structured in kit - Spares condition only	6	$1.08	Obsolete	View Details
10	A9700733 Bolt, C'Sunk, Skt, M6 x 25	Bolt, C'Sunk, Skt, M6 x 25 Not structured in kit - Spares condition only	4	$3.78	Out of Stock	Notify Me
11	A9700758 Bolt, C'Sunk, Skt, M6 x 30	Bolt, C'Sunk, Skt, M6 x 30 Not structured in kit - Spares condition only	2	$2.70	Available to order	2 Ships within 3–7 business days
12	A9741078 Nut, Hex Cap, M6 Replaced by T2303467 — Nut, Hex Cap, M6, SS — Available to Order	Nut, Hex Cap, M6 Not structured in kit - Spares condition only	6	$3.10	Unavailable	View Details
13	A9700760 Spacer, Cross Brace	Spacer, Cross Brace Not structured in kit - Spares condition only	2	$6.48	Obsolete	View Details
14	A9700710 Spool, Lower, 3/4 Od	Spool, Lower, 3/4 Od Not structured in kit - Spares condition only	2	$10.50	Obsolete	View Details
15	A9700708 Clamp, Fork, Rear	Clamp, Fork, Rear Not structured in kit - Spares condition only	2	$15.12	Obsolete	View Details
16	A9700747 Bracket, Mount, LH	Bracket, Mount, LH Not structured in kit - Spares condition only	1	$19.44	Available to order	1 Ships within 3–7 business days
17	A9700746 Bracket, Mount, RH	Bracket, Mount, RH Not structured in kit - Spares condition only	1	$6.75	Obsolete	View Details
18	A9700712 Spacer, Lower	Spacer, Lower Not structured in kit - Spares condition only	2	$11.34	Backorder — Early August 2026	2
19	A9700709 Spacer, Upper	Spacer, Upper Not structured in kit - Spares condition only	2	$11.88	Obsolete	View Details
20	A9700730 Brkt, Outer, LH	Brkt, Outer, LH Not structured in kit - Spares condition only	1	$10.50	Obsolete	View Details
21	A9700731 Brkt, Outer, RH	Brkt, Outer, RH Not structured in kit - Spares condition only	1	$10.50	Obsolete	View Details
22	A9700729 Bung, Rubber, Brkt	Bung, Rubber, Brkt Not structured in kit - Spares condition only	2	$2.85	Obsolete	View Details
23	A9700745 Pad, Rubber, Short	Pad, Rubber, Short Not structured in kit - Spares condition only	2	$3.24	Obsolete	View Details
24	A9700742 Pad, Rubber, Long	Pad, Rubber, Long Not structured in kit - Spares condition only	2	$3.24	Obsolete	View Details
25	A9700715 Screw, Btn HD, Skt, M8 x 50	Screw, Btn HD, Skt, M8 x 50 Not structured in kit - Spares condition only	2	$2.16	Obsolete	View Details
26	A9700707 Screw, C/Sk Skt HD, M8 x 50	Screw, C/Sk Skt HD, M8 x 50 Not structured in kit - Spares condition only	2	$2.35	Obsolete	View Details
27	A9700756 Spacer, Bracket	Spacer, Bracket Not structured in kit - Spares condition only	2	$8.10	Available to order	2 Ships within 3–7 business days
28	A9700763 Bobbin Assembly	Bobbin Assembly	2	$15.75	Obsolete	View Details
