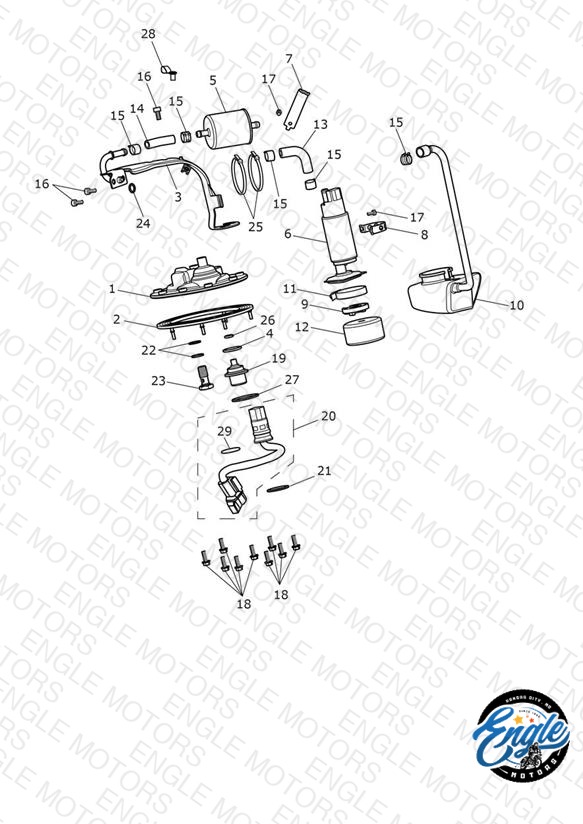

Loading schematic...
Fuel Pump
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2409051 Fuel Pump Plate | Fuel Pump Plate | 1 | $194.99 | Backorder — Early August 2026 | 1 |
| 2 | T2401214 Seal, Fuel Pump Plate | Seal, Fuel Pump Plate | 1 | $43.64 | Available to order | 1 |
| 3 | T2408818 Bracket, Fuel Pump | Bracket, Fuel Pump | 1 | $85.52 | Available to order | 1 |
| 4 | T3601488 O Ring, ID 21.9 x 2.6 | O Ring, ID 21.9 x 2.6 | 1 | $3.39 | Available to order | 1 |
| 5 | T2407046 Fuel Filter, Internal | Fuel Filter, Internal | 1 | $84.59 | Available to order | 1 |
| 6 | T1247556 Fuel Pump, EFI, Square Strainer | Fuel Pump, EFI, Square Strainer | 1 | $264.23 | Available to order | 1 |
| 7 | T2408815 Bracket, Hose | Bracket, Hose | 1 | $6.07 | Out of Stock | Notify Me |
| 8 | T1245555 Strap, Retaining, Fuel Pump | Strap, Retaining, Fuel Pump | 1 | $14.58 | Available to order | 1 |
| 9 | T1247557 Cushion, Fuel Pump | Cushion, Fuel Pump | 1 | $9.03 | Available to order | 1 |
| 10 | T2401411 Baffle, Fuel Pump | Baffle, Fuel Pump | 1 | $52.29 | Available to order | 1 |
| 11 | T2102116 Clip, Hose, 11-12.5 | Clip, Hose, 11-12.5 | 1 | $6.55 | Available to order | 1 |
| 12 | T2400224 Filter, Fuel Pump Baffle | Filter, Fuel Pump Baffle | 1 | $17.37 | Available to order | 1 |
| 13 | T3620397 Formed Fuel Hose, E25 | Formed Fuel Hose, E25 | 1 | $6.14 | Out of Stock | Notify Me |
| 14 | T3620395 Fuel Hose, 45mm | Fuel Hose, 45mm | 1 | $9.88 | Available to order | 1 |
| 15 | T3700089 Hose Clip, Dia 12.5 | Hose Clip, Dia 12.5 | 5 | $4.01 | Available to order | 5 |
| 16 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw | 3 | $1.47 | Available to order | 3 |
| 17 | T3050308 Screw, Cap/Hd, M4 x 8 | Screw, Cap/Hd, M4 x 8 | 2 | $5.14 | Available to order | 2 |
| 18 | T3330892 Bolt, RHHF, M5 x 15, S5041 | Bolt, RHHF, M5 x 15, S5041 | 9 | $1.13 | Available to order | 9 |
| 19 | T1240366 Fuel Pressure Regulator, Ext | Fuel Pressure Regulator, Ext | 1 | $87.73 | Available to order | 1 |
| 20 | T2401554 Subharness, Pump Plate | Subharness, Pump Plate | 1 | $46.00 | Available to order | 1 |
| 21 | T3500078 Circlip, Int Dia 81.4 x 1.2 | Circlip, Int Dia 81.4 x 1.2 | 1 | $1.40 | Available to order | 1 |
| 22 | T3550573 Banjo Washer, M12 | Banjo Washer, M12 | 2 | $2.88 | Available to order | 2 |
| 23 | T1210258 Bolt, Banjo, M12 | Bolt, Banjo, M12 | 1 | $12.46 | Available to order | 1 |
| 24 | T3600213 O Ring, ID 9.8 x 1.9 | O Ring, ID 9.8 x 1.9 | 1 | $2.37 | Available to order | 1 |
| 25 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 2 | $0.95 | Available to order | 2 |
| 26 | T3601469 O Ring, ID 7.6 x 2.6 | O Ring, ID 7.6 x 2.6 | 1 | $3.39 | Available to order | 1 |
| 27 | T3500111 Circlip, Int, 36 x 1.5 | Circlip, Int, 36 x 1.5 | 1 | $16.04 | Available to order | 1 |
| 28 | T3700091 Clip Cable | Clip Cable | 1 | $1.13 | Available to order | 1 |
| 29 | T3600056 O ring | O ring | 1 | $9.02 | Available to order | 1 |
