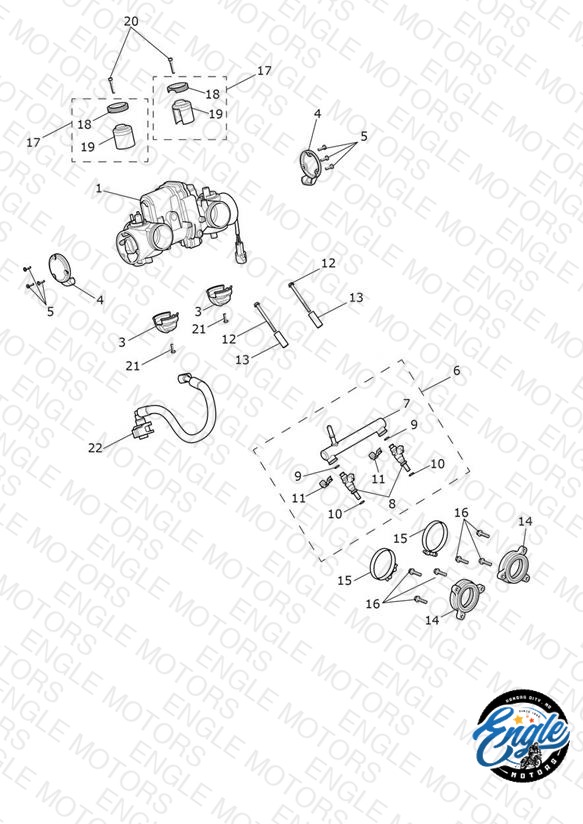

#	Part Number	Description	Qty	Price	Status
1	T1240285 Throttle Body Assy, Twin 44mm	Throttle Body Assy, Twin 44mm	1	$2640.58	Available to order	1 Ships within 3–7 business days
3	T1240341 Bottom, Throttle	Bottom, Throttle	2	$21.57	Available to order	2 Ships within 3–7 business days
4	T1240342 Cover TPS	Cover TPS	2	$24.89	Available to order	2 Ships within 3–7 business days
5	T3330248 Screw, Pan/Hd, M4 x 16	Screw, Pan/Hd, M4 x 16	6	$1.03	Available to order	6 Ships within 3–7 business days
6	T1241970 Fuel Rail Assy, High Flow	Fuel Rail Assy, High Flow	1	$249.05	Out of Stock	Notify Me
7	T1242261 Fuel Rail Assy	Fuel Rail Assy	1	$243.93	Available to order	1 Ships within 3–7 business days
8	T1241960 Injector Assy, High Flow	Injector Assy, High Flow	2	$218.63	Available to order	2 Ships within 3–7 business days
9	T1241965 O Ring, Injector, Upper	O Ring, Injector, Upper	2	$5.42	Available to order	2 Ships within 3–7 business days
10	T1241966 O Ring, Injector, Lower	O Ring, Injector, Lower	2	$5.42	Available to order	2 Ships within 3–7 business days
11	T1241967 Clip, Injector	Clip, Injector	2	$5.78	Available to order	2 Ships within 3–7 business days
12	T3205075 Bolt, HHF, Lghtd, M6 x 65, Slv	Bolt, HHF, Lghtd, M6 x 65, Slv	2	$3.77	Available to order	2 Ships within 3–7 business days
13	T1242786 Spacer, Fuel Rail, Aluminium	Spacer, Fuel Rail, Aluminium	2	$5.60	Available to order	2 Ships within 3–7 business days
14	T1241991 Transition Piece, 1200	Transition Piece, 1200	2	$33.23	Out of Stock	Notify Me
15	T1241705 Clip, Transition Piece	Clip, Transition Piece	2	$33.23	Available to order	2 Ships within 3–7 business days
16	T3200190 Bolt, RHHF, M6 x 25, Slv	Bolt, RHHF, M6 x 25, Slv	6	$2.63	Available to order	6 Ships within 3–7 business days
17	T1240344 Slide Tube Assy	Slide Tube Assy	2	$42.64	Backorder — Mid August 2026	2
18	T1240299 Ring, Throttle	Ring, Throttle	2	$21.13	Available to order	2 Ships within 3–7 business days
19	T1240343 Slide Tube, Single Piece	Slide Tube, Single Piece	2	$24.60	Available to order	2 Ships within 3–7 business days
20	T3050343 Screw, Cap/Hd, M5 x 30, Slv	Screw, Cap/Hd, M5 x 30, Slv	2	$4.45	Available to order	2 Ships within 3–7 business days
21	T3330696 Screw, But/Hd, M5 X 16, Slv	Screw, But/Hd, M5 X 16, Slv	2	$5.69	Available to order	2 Ships within 3–7 business days
22	T1243322 Hose, Fuel Feed, Rubber, Assy	Hose, Fuel Feed, Rubber, Assy	1	$125.46	Out of Stock	Notify Me
