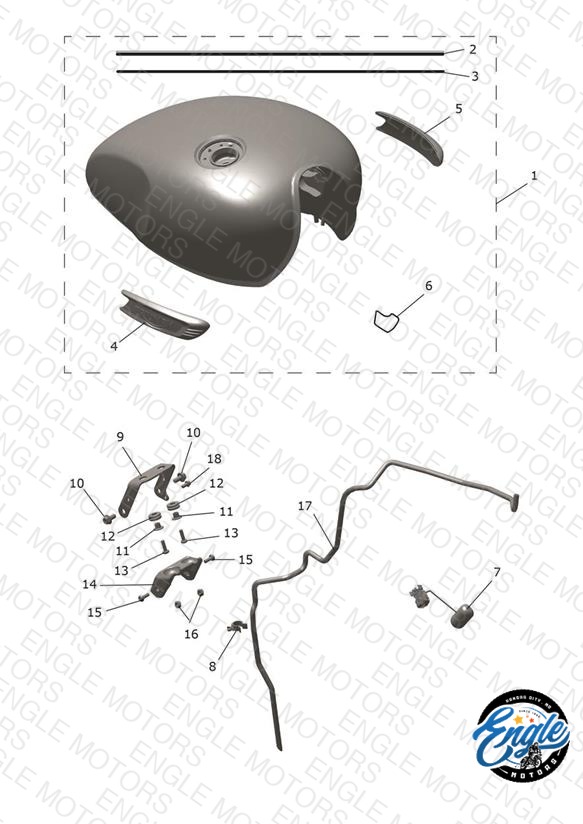

Fuel Tank
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2408167-PM Fuel Tank Assy, Sapphire Black/Crystal White | Fuel Tank Assy, Sapphire Black/Crystal White | 1 | $3326.03 | Available to order | 1 |
| 1 | T2408167-CU Fuel Tank Assy, Carnival Red/Crystal White | Fuel Tank Assy, Carnival Red/Crystal White | 1 | $3326.03 | Available to order | 1 |
| 2 | T2403971 Decal, Tank, Gold/Blk | Decal, Tank, Gold/Blk Fit to Black Tanks | 1 | $28.72 | Out of Stock | Notify Me |
| 2 | T2403973 Decal, Tank, Gold/Red | Decal, Tank, Gold/Red Fit to Red Tanks | 1 | $28.72 | Out of Stock | Notify Me |
| 3 | T2403972 Decal, Tank, Sapphire Black | Decal, Tank, Sapphire Black Fit to Black Tanks | 1 | $35.92 | Out of Stock | Notify Me |
| 3 | T2403974 Decal, Tank, Carnival Red | Decal, Tank, Carnival Red Fit to Red Tanks | 1 | $35.92 | Out of Stock | Notify Me |
| 4 | T2409180 Badge, Fuel Tank, RH | Badge, Fuel Tank, RH | 1 | $71.84 | Backorder — Mid August 2026 | 1 |
| 5 | T2409190 Badge, Fuel Tank, LH | Badge, Fuel Tank, LH | 1 | $71.84 | Backorder — Mid August 2026 | 1 |
| 6 | T2401625 Protective Film | Protective Film | 1 | $5.78 | Available to order | 1 |
| 7 | T2403488 Fuel Level Sender | Fuel Level Sender | 1 | $230.88 | Out of Stock | Notify Me |
| 8 | T3700072 Cable Clip, Dia 15-16mm BK | Cable Clip, Dia 15-16mm BK | 1 | $4.12 | Available to order | 1 |
| 9 | T2409046 Bracket, Rear Mount, Fuel Tank | Bracket, Rear Mount, Fuel Tank | 1 | $5.04 | Out of Stock | Notify Me |
| 10 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv | 2 | $1.62 | Available to order | 2 |
| 11 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $5.78 | Available to order | 2 |
| 12 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 2 | $2.85 | Available to order | 2 |
| 13 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.10 | Available to order | 2 |
| 14 | T2408787 Rubber, Fuel Tank, Rear Mount | Rubber, Fuel Tank, Rear Mount | 1 | $30.54 | Available to order | 1 |
| 15 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 16 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 2 | $0.94 | Available to order | 2 |
| 17 | T2403793 Hose, Tank Drain | Hose, Tank Drain | 1 | $15.08 | Out of Stock | Notify Me |
| 18 | T3205062 Bolt, HHF, Lghtd, M6 x 12, Slv | Bolt, HHF, Lghtd, M6 x 12, Slv | 1 | $4.19 | Available to order | 1 |
