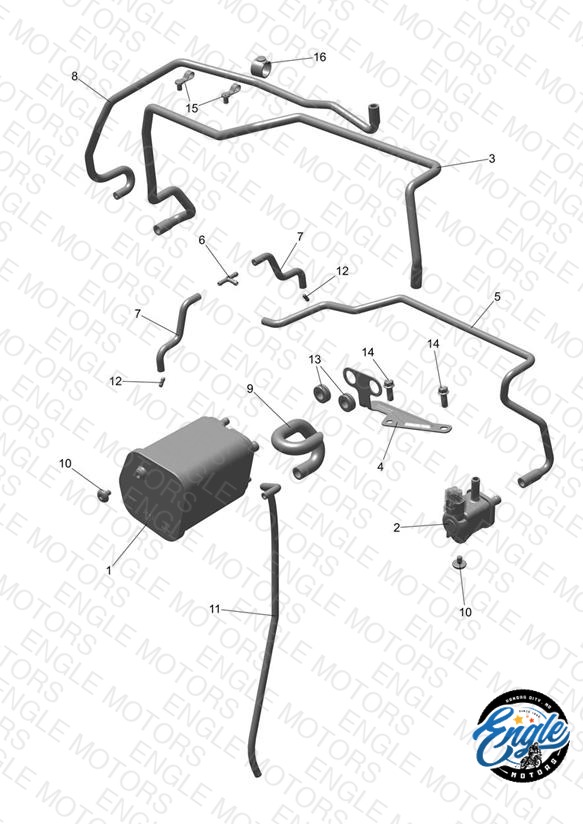

Evap System
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2404183 Evap Cannister | Evap Cannister | 1 | $43.10 | Out of Stock | Notify Me |
| 2 | T1248990 Purge Valve | Purge Valve | 1 | $66.52 | Available to order | 1 |
| 3 | T2403791 Hose, Purge to Canister | Hose, Purge to Canister | 1 | $12.21 | Out of Stock | Notify Me |
| 4 | T2404185 Bracket, Evap, LH | Bracket, Evap, LH | 1 | $6.45 | Out of Stock | Notify Me |
| 5 | T2408800 Hose, Purge to T | Hose, Purge to T | 1 | $7.19 | Out of Stock | Notify Me |
| 6 | T1243154 Connector, T-Piece | Connector, T-Piece | 1 | $2.74 | Available to order | 1 |
| 7 | T1241124 Hose, Formed, Purge | Hose, Formed, Purge | 2 | $25.29 | Out of Stock | Notify Me |
| 8 | T2405259 Hose, Tank, Evap | Hose, Tank, Evap | 1 | $12.21 | Out of Stock | Notify Me |
| 9 | T2405260 Hose, Air, Evap | Hose, Air, Evap | 1 | $7.19 | Out of Stock | Notify Me |
| 10 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 2 | $3.90 | Available to order | 2 |
| 11 | T2405262 Hose, Drain, Evap | Hose, Drain, Evap | 1 | $7.19 | Out of Stock | Notify Me |
| 12 | T1241890 Restrictor, Purge, Evap | Restrictor, Purge, Evap | 2 | $11.32 | Available to order | 2 |
| 13 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 2 | $2.10 | Available to order | 2 |
| 14 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.50 | Available to order | 2 |
| 15 | T3700091 Clip Cable | Clip Cable | 2 | $1.13 | Available to order | 2 |
| 16 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 1 | $3.90 | Available to order | 1 |
