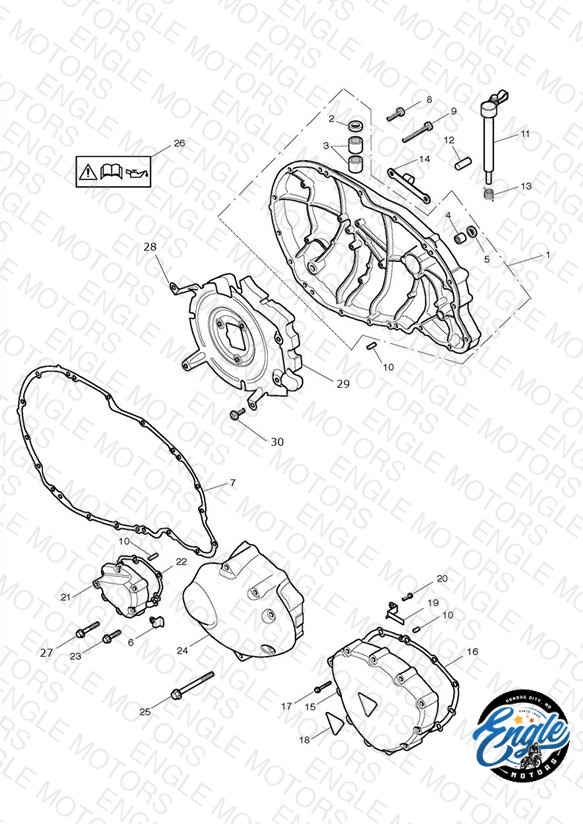

Loading schematic...
Engine Covers
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1260525 Clutch Cover Assembly, Black | Clutch Cover Assembly, Black Bonneville | 1 | $475.29 | Available to order | 1 |
| 1 | T1260544 Clutch Cover Assy, Brushed & Chromate | Clutch Cover Assy, Brushed & Chromate * Part No Longer Available * Bonneville SE | 1 | $401.62 | Obsolete | View Details |
| 2 | T3600095 Dust Seal | Dust Seal | 1 | $2.25 | Available to order | 1 |
| 3 | T3800110 Roller Bearing, HK 1210 | Roller Bearing, HK 1210 | 2 | $6.65 | Available to order | 2 |
| 4 | T3800001 Bearing, Needle, 20 x 14 x 12 | Bearing, Needle, 20 x 14 x 12 | 1 | $8.60 | Backorder — Early August 2026 | 1 |
| 5 | T3600088 Seal, Oil, 14 x 22 x 4.5 | Seal, Oil, 14 x 22 x 4.5 | 1 | $6.39 | Available to order | 1 |
| 6 | T1260965 Bracket, Neut ID Lead, Ret | Bracket, Neut ID Lead, Ret | 1 | $8.33 | Available to order | 1 |
| 7 | T1260967 Gasket, Clutch Cover | Gasket, Clutch Cover | 1 | $11.28 | Available to order | 1 |
| 8 | T3203030 Bolt, RHHF, Domed, M6 x 30 | Bolt, RHHF, Domed, M6 x 30 > Eng No 460556 | 7 | $3.50 | Available to order | 7 |
| 8 | T3205070 Bolt, HHF, Lghtd, M6 x 30, Slv | Bolt, HHF, Lghtd, M6 x 30, Slv Eng No 460557 > | 7 | $2.37 | Available to order | 7 |
| 9 | T3203040 Bolt, RHHF Domed, M6 x 40 | Bolt, RHHF Domed, M6 x 40 > Eng No 460556 | 10 | $1.72 | Available to order | 10 |
| 9 | T3205072 Bolt, HHF, Lghtd, M6 x 40, Slv | Bolt, HHF, Lghtd, M6 x 40, Slv Eng No 460557 > | 10 | $1.72 | Available to order | 10 |
| 10 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 8 | $1.13 | Available to order | 8 |
| 11 | T1171450 Clutch Lifter Arm | Clutch Lifter Arm > Eng No 568625 | 1 | $82.73 | Available to order | 1 |
| 11 | T1171455 Clutch Lifter Arm | Clutch Lifter Arm Eng No 568626 > | 1 | $82.73 | Available to order | 1 |
| 12 | T1171701 Bullet, Clutch Lifter | Bullet, Clutch Lifter | 1 | $37.09 | Available to order | 1 |
| 13 | T1170925 Spring return | Spring return | 1 | $2.55 | Available to order | 1 |
| 14 | T1171410 Clutch Cable Holder / Guide | Clutch Cable Holder / Guide > Eng No 568625 | 1 | $10.81 | Out of Stock | Notify Me |
| 14 | T1171415 Clutch Cable Holder/Guide | Clutch Cable Holder/Guide Eng No 568626 > | 1 | $10.81 | Available to order | 1 |
| 15 | T1261957 Cover, RH, Black | Cover, RH, Black Bonneville | 1 | $207.23 | Available to order | 1 |
| 15 | T1260896 Alternator Cover, Brushed & Chromate | Alternator Cover, Brushed & Chromate Bonneville SE | 1 | $207.23 | Available to order | 1 |
| 16 | T1260968 Gasket, RH Cover | Gasket, RH Cover | 1 | $8.06 | Available to order | 1 |
| 17 | T3203050 Bolt, Domed, S/S, M6 x 50 | Bolt, Domed, S/S, M6 x 50 > Eng No 460586 | 11 | $6.73 | Available to order | 11 |
| 17 | T3205073 Bolt, HHF, Lghtd, M6 x 1.0 x 50, Slv | Bolt, HHF, Lghtd, M6 x 1.0 x 50, Slv Eng No 460587 > | 11 | $6.73 | Available to order | 11 |
| 18 | T3950105 Badge, Triumph, Triangular | Badge, Triumph, Triangular Bonneville | 1 | $13.33 | Available to order | 1 |
| 18 | T3950100 Triumph Badge, Triangular | Triumph Badge, Triangular Bonneville SE | 1 | $13.33 | Available to order | 1 |
| 19 | T1261178 Plate, Wire Retainer | Plate, Wire Retainer | 1 | $6.14 | Available to order | 1 |
| 20 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw | 1 | $1.47 | Available to order | 1 |
| 21 | T1260992 Cover, Gearchange Mech, Black | Cover, Gearchange Mech, Black | 1 | $136.88 | Available to order | 1 |
| 22 | T1260969 Gasket, Gearchange Mech Cover | Gasket, Gearchange Mech Cover | 1 | $8.46 | Backorder — Mid August 2026 | 1 |
| 23 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv > Eng No 398115 | 2 | $3.50 | Available to order | 2 |
| 23 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv Eng No 398116 > Eng No 460576 | 2 | $4.55 | Available to order | 2 |
| 24 | T1262031 Sprocket Cover, Crinkle Black | Sprocket Cover, Crinkle Black Bonneville | 1 | $148.31 | Available to order | 1 |
| 24 | T1260897 Sprocket Cover, Brushed & Chromate | Sprocket Cover, Brushed & Chromate Bonneville SE | 1 | $174.91 | Available to order | 1 |
| 25 | T3203075 Bolt, RHHF, M6 x 75 S/Less | Bolt, RHHF, M6 x 75 S/Less > Eng No 470730 - PART NO LONGER AVAILABLE | 5 | $3.78 | Obsolete | View Details |
| 25 | T3205076 Bolt, HHF, Lghtd, M6 x 1.0 x 75, Slv | Bolt, HHF, Lghtd, M6 x 1.0 x 75, Slv Eng No 470731 > | 5 | $4.45 | Out of Stock | Notify Me |
| 26 | T3900302 Label, Oil & Filter | Label, Oil & Filter | 1 | $5.69 | Out of Stock | Notify Me |
| 28 | T1260928 Plate, Sound Pad, Clutch Cover | Plate, Sound Pad, Clutch Cover | 1 | $14.46 | Available to order | 1 |
| 29 | T1260927 Pad, Sound Suppression | Pad, Sound Suppression | 1 | $43.28 | Available to order | 1 |
| 30 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 8 | $1.40 | Available to order | 8 |
