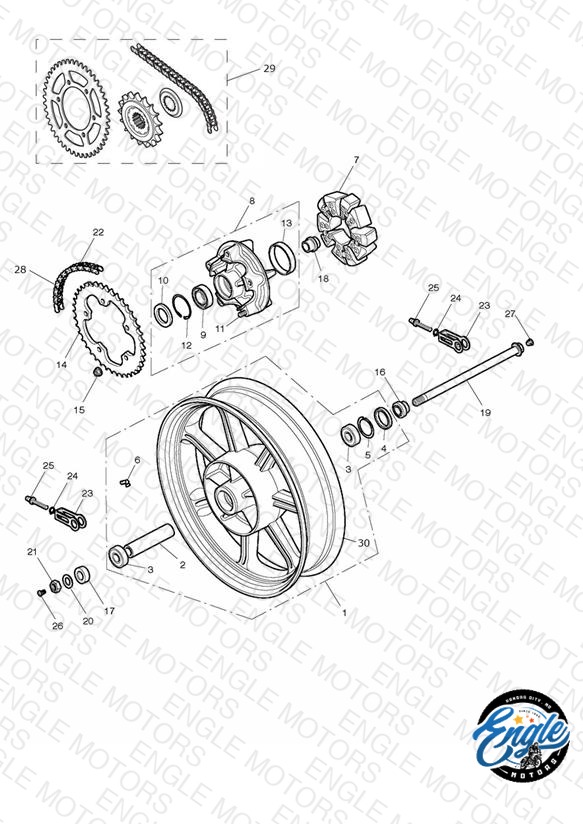

Rear Wheel & Final Drive
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2010485 Rear Wheel Assembly | Rear Wheel Assembly | 1 | $1109.05 | Out of Stock | Notify Me |
| 2 | T2014189 Spacer, Internal | Spacer, Internal | 1 | $54.20 | Available to order | 1 |
| 3 | T3800701 Bearing, Ball, 17 47 14 | Bearing, Ball, 17 47 14 | 2 | $26.16 | Available to order | 2 |
| 4 | T3600705 Oil Seal, 35 47 6 | Oil Seal, 35 47 6 | 1 | $9.10 | Backorder — Mid August 2026 | 1 |
| 5 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 6 | T2006615 Valve Assy, aluminium, 90, Slv | Valve Assy, aluminium, 90, Slv | 1 | $16.04 | Available to order | 1 |
| 7 | T2012223 Rubber Cush Drive | Rubber Cush Drive | 1 | $114.08 | Available to order | 1 |
| 8 | T2010380 Sprocket Carrier Assy, Black | Sprocket Carrier Assy, Black | 1 | $642.54 | Available to order | 1 |
| 9 | T3800029 Bearing Ball, 25 52 15 | Bearing Ball, 25 52 15 | 1 | $16.31 | Available to order | 1 |
| 10 | T3600073 Oil Seal, 35 52 6 | Oil Seal, 35 52 6 | 1 | $21.86 | Available to order | 1 |
| 11 | T2012144 Stud, Sprocket Carrier | Stud, Sprocket Carrier | 5 | $7.62 | Available to order | 5 |
| 12 | T3500203 Circlip, Int, 52 x 2 | Circlip, Int, 52 x 2 | 1 | $16.04 | Available to order | 1 |
| 13 | T2012113 Ring | Ring | 1 | $43.13 | Available to order | 1 |
| 14 | T2012516 Sprocket | Sprocket > 694351 | 1 | $53.84 | Available to order | 1 |
| 14 | T2012522 Sprocket, Rear, 43T | Sprocket, Rear, 43T 694352 > | 1 | $53.84 | Available to order | 1 |
| 15 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 5 | $4.16 | Available to order | 5 |
| 16 | T2004296 Spacer | Spacer | 1 | $11.03 | Available to order | 1 |
| 17 | T2012080 Spacer, 12.5 x 34.9mm | Spacer, 12.5 x 34.9mm | 1 | $8.46 | Available to order | 1 |
| 18 | T2012085 Stepped spacer | Stepped spacer | 1 | $8.25 | Available to order | 1 |
| 19 | T2012012 Bolt | Bolt | 1 | $35.64 | Available to order | 1 |
| 20 | T3555032 Washer, 17 x 30 x 3 | Washer, 17 x 30 x 3 | 1 | $3.17 | Available to order | 1 |
| 21 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 22 | T2010134 Chain | Chain > 694351 | 1 | $235.28 | Available to order | 1 |
| 22 | T2012529 Chain, Final Drive, 104L | Chain, Final Drive, 104L 694352 > | 1 | $195.63 | Backorder — Late July 2026 | 1 |
| 22 | T2017215 525 Chain, 104L, Split, Spares | 525 Chain, 104L, Split, Spares > 694351 | 1 | $195.63 | Backorder — Early August 2026 | 1 |
| 22 | T2017216 520 Chain, 104L, Split, Spares | 520 Chain, 104L, Split, Spares 694352 > | 1 | $195.63 | Available to order | 1 |
| 23 | T2014011 Clevis | Clevis | 2 | $15.12 | Available to order | 2 |
| 24 | T3500042 Circlip, Chain Adjuster | Circlip, Chain Adjuster | 2 | $0.89 | Available to order | 2 |
| 25 | T3330809 Screw, Chain Adjuster | Screw, Chain Adjuster | 2 | $9.57 | Available to order | 2 |
| 26 | T3450183 Bung, Hole, Dia 7.0, Blk | Bung, Hole, Dia 7.0, Blk > 431045 | 1 | $8.25 | Available to order | 1 |
| 27 | T3450499 Bung Hole, Dia 9, Black | Bung Hole, Dia 9, Black > 431045 | 1 | $10.18 | Available to order | 1 |
| 28 | T2010619 Chain Link, 525 | Chain Link, 525 > 694351 | 1 | $16.43 | Available to order | 1 |
| 28 | T2010618 Chain Link, 520 | Chain Link, 520 694352 > | 1 | $16.43 | Available to order | 1 |
| 29 | T2017210 Chain & Sprocket Kit, 104/43/18 | Chain & Sprocket Kit, 104/43/18 > 694351 | 1 | $274.57 | Available to order | 1 |
| 29 | T2017213 Chain & Sprocket Kit, 104/43/18 | Chain & Sprocket Kit, 104/43/18 694352 > | 1 | $274.57 | Available to order | 1 |
| 30 | T2010486 Rear Wheel, Sub Assy | Rear Wheel, Sub Assy | 1 | $1109.05 | Out of Stock | Notify Me |
