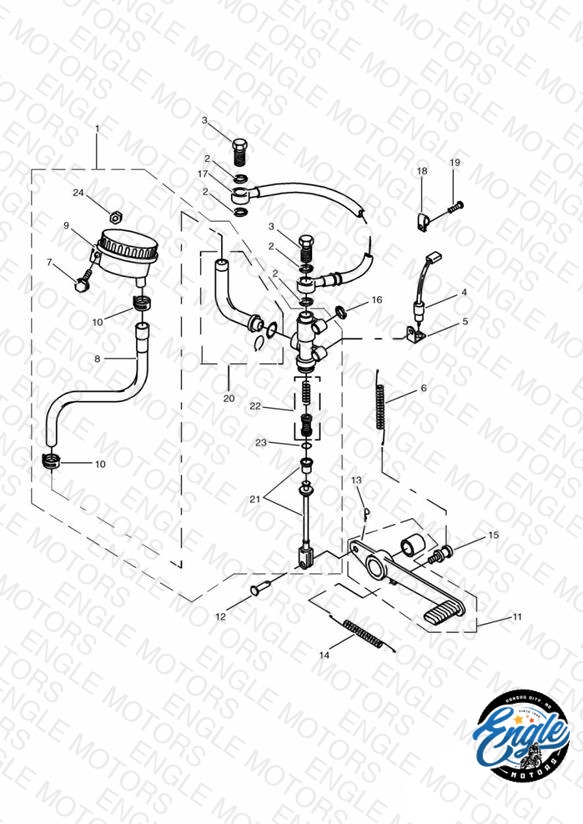

Rear Brake Master Cylinder
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2025300 Master cylinder | Master cylinder | 1 | $331.82 | Obsolete | View Details |
| 2 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 4 | $1.07 | Available to order | 4 |
| 3 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 2 | $7.02 | Available to order | 2 |
| 4 | T2025320 Switch, Rear Brake | Switch, Rear Brake | 1 | $19.29 | Out of Stock | Notify Me |
| 5 | T2025335 Bracket | Bracket | 1 | $13.22 | Obsolete | View Details |
| 6 | T2025337 Spring, Brake Switch Return | Spring, Brake Switch Return | 1 | $1.06 | Available to order | 1 |
| 7 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.55 | Available to order | 1 |
| 8 | T2025305 Reservoir hose | Reservoir hose | 1 | $32.52 | Obsolete | View Details |
| 9 | T2025306 Reservoir, M/Cyl, Rear | Reservoir, M/Cyl, Rear | 1 | $40.87 | Out of Stock | Notify Me |
| 10 | 2020440-T0301 Clip, Reservoir, M/Cyl, Rear | Clip, Reservoir, M/Cyl, Rear | 2 | $2.85 | Available to order | 2 |
| 11 | T2025315 Brake pedal | Brake pedal | 1 | $106.97 | Obsolete | View Details |
| 12 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 13 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
| 14 | T2025339 Spring return | Spring return | 1 | $1.62 | Available to order | 1 |
| 15 | T2025318 Pin | Pin | 1 | $6.09 | Obsolete | View Details |
| 16 | T3550255 Washer | Washer ** Part No Longer Available ** | 1 | $1.00 | Obsolete | View Details |
| 17 | T2020739 Brake hose | Brake hose Rear - PART NO LONGER AVAILABLE | 1 | $94.14 | Obsolete | View Details |
| 18 | T3700020 P Clip | P Clip | 1 | $11.79 | Out of Stock | Notify Me |
| 19 | T3203115 Bolt, RHHF, M6x1.0x12, S/S | Bolt, RHHF, M6x1.0x12, S/S | 1 | $3.17 | Available to order | 1 |
| 20 | 2020476-T0301 Connector Set, M/Cyl Rear | Connector Set, M/Cyl Rear | 1 | $21.57 | Available to order | 1 |
| 21 | T2020477 M/Cyl, Pushrod Assy | M/Cyl, Pushrod Assy | 1 | $35.35 | Out of Stock | Notify Me |
| 22 | T2020031 Piston Set | Piston Set | 1 | $62.71 | Available to order | 1 |
| 23 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 24 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 1 | $1.79 | Out of Stock | Notify Me |
