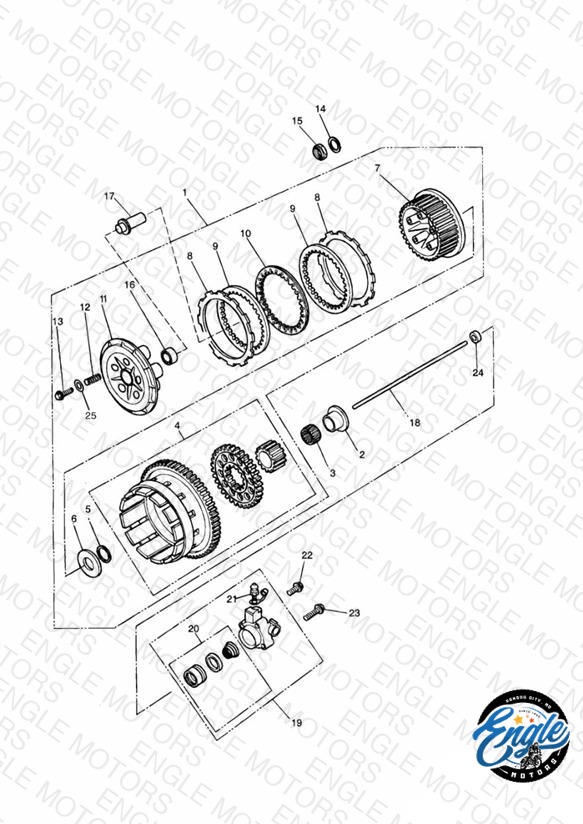

Loading schematic...
Clutch
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1170004 Clutch assembly | Clutch assembly 4 Cyl | 1 | $995.39 | Obsolete | View Details |
| 1 | 1170390-T0301 Clutch assembly | Clutch assembly 3 Cyl | 1 | $890.26 | Obsolete | View Details |
| 2 | 1170090-T0301 Bush | Bush | 1 | $27.26 | Obsolete | View Details |
| 3 | 3800035-T0301 Bearing radial | Bearing radial | 1 | $44.52 | Available to order | 1 |
| 4 | T1170370 Drum assembly | Drum assembly 3 Cyl | 1 | $765.77 | Obsolete | View Details |
| 4 | T1170380 Drum assembly | Drum assembly 4 Cyl | 1 | $765.77 | Obsolete | View Details |
| 5 | 1170310-T0301 Shim | Shim 0.10mm | 1 | $0.98 | Out of Stock | Notify Me |
| 5 | 1170315-T0301 Shim | Shim 0.15mm | 1 | $1.53 | Obsolete | View Details |
| 5 | 1170320-T0301 Shim | Shim 0.20mm | 1 | $1.53 | Obsolete | View Details |
| 5 | 1170325-T0301 Shim | Shim 0.25mm - * PART NO LONGER AVAILABLE * | 1 | $1.64 | Obsolete | View Details |
| 5 | 1170330-T0301 Shim | Shim 0.30mm - * PART NO LONGER AVAILABLE * | 1 | $1.64 | Obsolete | View Details |
| 5 | 1170335-T0301 Shim | Shim 0.35mm - * PART NO LONGER AVAILABLE * | 1 | $1.64 | Obsolete | View Details |
| 6 | 1170020-T0301 Washer | Washer | 1 | $4.70 | Obsolete | View Details |
| 7 | 1170025-T0301 Drum assembly | Drum assembly | 1 | $273.93 | Obsolete | View Details |
| 8 | 1170036-T0301 Disc kit | Disc kit Set of 9 Plates | 1 | $209.98 | Backorder — Early August 2026 | 1 |
| 9 | 1170040-T0301 Clutch plate | Clutch plate | 7 | $19.16 | Obsolete | View Details |
| 10 | 1170065-T0301 Clutch plate B | Clutch plate B | 1 | $55.12 | Available to order | 1 |
| 11 | 1170030-T0301 Plate pressure | Plate pressure | 1 | $210.54 | Obsolete | View Details |
| 12 | 1170045-T0301 Clutch spring | Clutch spring 4 Cyl | 5 | $2.10 | Available to order | 5 |
| 12 | 1170086-T0301 Clutch spring | Clutch spring 3 Cyl | 5 | $3.77 | Backorder — Early August 2026 | 5 |
| 13 | 1170050-T0301 Special bolt | Special bolt M6 x 25mm | 5 | $3.59 | Obsolete | View Details |
| 14 | T1179999 Washer, C, Clutch | Washer, C, Clutch | 1 | $11.71 | Available to order | 1 |
| 15 | T1170192 Nut, Clutch, M22 | Nut, Clutch, M22 M22 | 1 | $12.29 | Available to order | 1 |
| 16 | T3800012 Bearing Ball | Bearing Ball | 1 | $45.12 | Available to order | 1 |
| 17 | 1170088-T0301 Connecting piece | Connecting piece | 1 | $40.24 | Obsolete | View Details |
| 18 | 1170270-T0301 Push rod | Push rod PART NO LONGER AVAILABLE | 1 | $25.12 | Obsolete | View Details |
| 19 | 1170110-T0301 Slave cylinder | Slave cylinder Black | 1 | $108.34 | Available to order | 1 |
| 20 | 1170201-T0301 Piston set | Piston set | 1 | $81.75 | Available to order | 1 |
| 21 | 1170205-T0301 Bleed screw | Bleed screw | 1 | $10.28 | Available to order | 1 |
| 22 | 3200024-T0301 Bolt | Bolt M6 x 40mm * PART NO LONGER AVAILABLE * | 1 | $0.96 | Obsolete | View Details |
| 23 | 3200020-T0301 Bolt | Bolt M6 x 90mm | 2 | $1.06 | Available to order | 2 |
| 24 | 3600012-T0301 Seal | Seal | 1 | $11.41 | Available to order | 1 |
| 25 | 1170550-T0301 3 Cyl Clutch Outer Basket | 3 Cyl Clutch Outer Basket 3 Cyl | 1 | $765.77 | Obsolete | View Details |
| 26 | T1170580 Gear, Auxiliary Drive, 71T | Gear, Auxiliary Drive, 71T | 1 | $114.89 | Obsolete | View Details |
