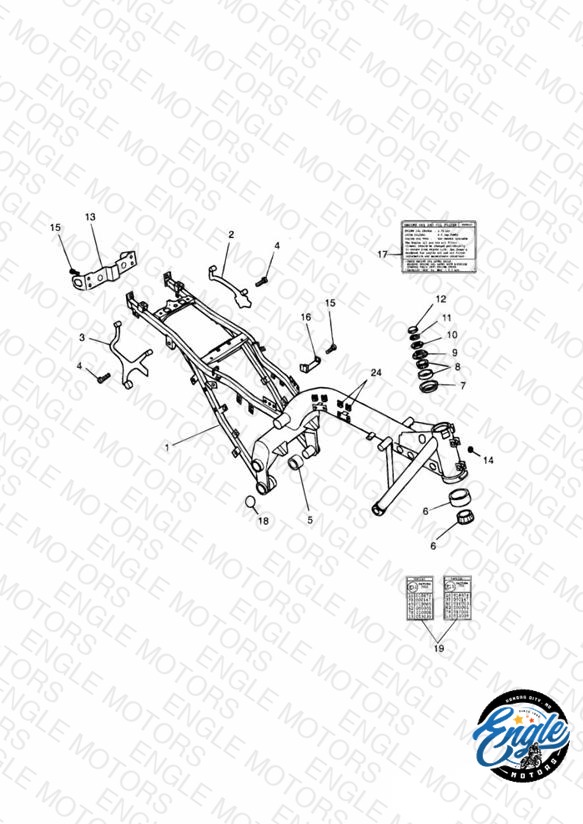

Main Frame & Fittings
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2078980 Frame assembly | Frame assembly | 1 | $2082.04 | Obsolete | View Details |
| 2 | 2070760-T0301 Lifting handle | Lifting handle » 4502 LH | 1 | $72.65 | Obsolete | View Details |
| 2 | 2070762-T0301 Lifting handle | Lifting handle 4503 » LH | 1 | $60.05 | Obsolete | View Details |
| 3 | 2070750-T0301 Lifting handle | Lifting handle RH » 4502 then deleted | 1 | $72.65 | Obsolete | View Details |
| 4 | T3202118 Bolt, RHHF, M8 x 1.25 x 45, Slv | Bolt, RHHF, M8 x 1.25 x 45, Slv | 4 | $1.62 | Available to order | 4 |
| 5 | 2078691-T0301 Sleeve | Sleeve | 1 | $9.72 | Obsolete | View Details |
| 6 | T3800031 Bearing, 30x55x17, Taper Roll | Bearing, 30x55x17, Taper Roll | 1 | $32.55 | Available to order | 1 |
| 7 | 2070002-T0301 Bearing cup | Bearing cup | 1 | $28.34 | Available to order | 1 |
| 8 | T3800032 Bearing, 24x47x15, Taper Roll | Bearing, 24x47x15, Taper Roll | 1 | $61.04 | Out of Stock | Notify Me |
| 9 | 2040225-T0301 Adjuster nut | Adjuster nut PART NO LONGER AVAILABLE | 1 | $5.11 | Obsolete | View Details |
| 10 | T2140210 Adjuster Nut, Upper | Adjuster Nut, Upper | 1 | $3.39 | Available to order | 1 |
| 11 | T2040061 Washer Upper Yoke | Washer Upper Yoke | 1 | $7.14 | Available to order | 1 |
| 12 | T2040060 Nut | Nut | 1 | $24.83 | Out of Stock | Notify Me |
| 13 | 2070720-T0301 Mounting bracket | Mounting bracket Rear lamp | 1 | $11.47 | Obsolete | View Details |
| 14 | T3450009 Plug, M6 | Plug, M6 | 4 | $3.24 | Available to order | 4 |
| 15 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 6 | $1.72 | Out of Stock | Notify Me |
| 16 | 2070705-T0301 Bridge | Bridge | 1 | $13.22 | Obsolete | View Details |
| 17 | 3900010-T0301 Label | Label Oil & filter 3 Cyl UK, NZ, AU, ZA, GR, CY, HK, MY | 1 | $4.76 | Unavailable | 1 |
| 17 | T3900136 Label, Engine Oil | Label, Engine Oil Oil & filter 3 Cyl CH, DE | 1 | $2.85 | Available to order | 1 |
| 18 | 3450190-T0301 End cap | End cap 4100 » | 1 | $0.96 | Obsolete | View Details |
| 19 | 3900145-T0301 Label | Label ECE 4 Cyl | 1 | $4.76 | Obsolete | View Details |
| 19 | 3900160-T0301 Label | Label ECE 3 Cyl | 1 | $1.13 | Out of Stock | Notify Me |
