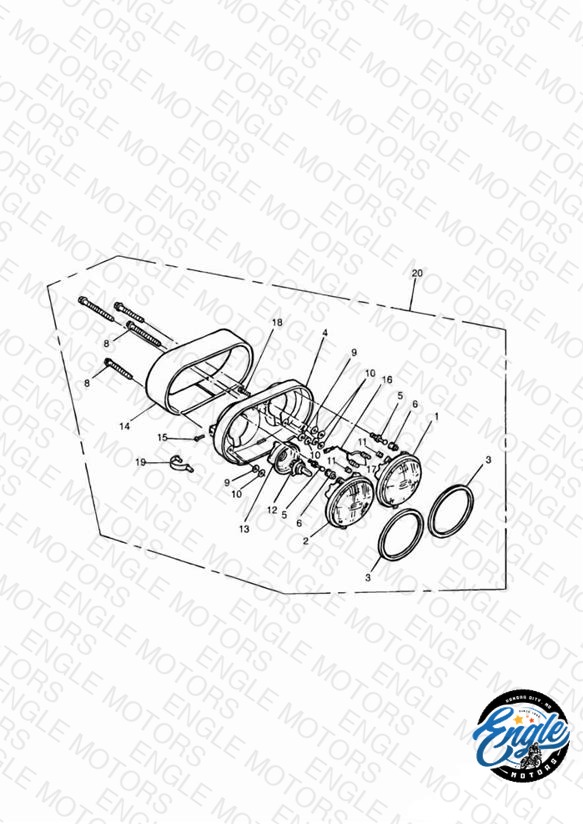

Loading schematic...
Headlight/Mountings
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2700171-T0301 Headlight LH | Headlight LH UK, NZ, ZA, JP, CY, HK, MY | 1 | $99.25 | Obsolete | View Details |
| 1 | 2700170-T0301 Headlight LH | Headlight LH CH, DE, FR, ES, PT, IT, NL, GR, AR, BR, SE | 1 | $74.26 | Obsolete | View Details |
| 1 | T2700172 Headlight LH | Headlight LH ** Part No Longer Available ** | 1 | $124.78 | Obsolete | View Details |
| 2 | 2700166-T0301 Headlight RH | Headlight RH UK, NZ, ZA, JP, CY, HK, MY | 1 | $110.96 | Obsolete | View Details |
| 2 | 2700165-T0301 Headlight RH | Headlight RH » 16921 CA | 1 | $92.48 | Obsolete | View Details |
| 2 | T2700167 Headlight RH | Headlight RH US, AU, SG | 1 | $99.25 | Obsolete | View Details |
| 3 | 2700200-T0301 Rim head lamp | Rim head lamp | 2 | $4.89 | Obsolete | View Details |
| 4 | 2700090-T0301 Mounting bracket | Mounting bracket | 1 | $19.16 | Obsolete | View Details |
| 5 | 2700160-T0301 Ball pin | Ball pin | 2 | $1.43 | Obsolete | View Details |
| 6 | 2700180-T0301 Socket | Socket | 2 | $1.18 | Obsolete | View Details |
| 8 | 2700185-T0301 Adjuster screw | Adjuster screw | 2 | $4.45 | Available to order | 2 |
| 9 | T3550082 Washer rubber | Washer rubber | 4 | $0.75 | Available to order | 4 |
| 10 | 3500020-T0301 Retainer | Retainer | 4 | $0.72 | Obsolete | View Details |
| 11 | 2700195-T0301 Insert | Insert | 4 | $0.93 | Out of Stock | Notify Me |
| 12 | T2700001 Bulb, H4 60/55W, 12V, Type 1, Clear | Bulb, H4 60/55W, 12V, Type 1, Clear | 2 | $17.69 | Available to order | 2 |
| 13 | 2700175-T0301 Cover | Cover | 2 | $4.10 | Obsolete | View Details |
| 14 | 3660080-T0301 Foam | Foam | 1 | $24.91 | Obsolete | View Details |
| 15 | T3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc | Screw, Cap/Hd, M6 x 16, Slv, Enc | 3 | $2.35 | Available to order | 3 |
| 16 | 2700215-T0301 Side light | Side light UK, NZ, ZA, JP, CY, HK, MY Part not serviced in US | 1 | $3.41 | Obsolete | View Details |
| 16 | 2700220-T0301 Side light | Side light CH, DE, FR, ES, PT, IT, NL, GR, AR, BR, SE Part not serviced in US | 1 | $19.50 | Obsolete | View Details |
| 17 | T2700210 Bulb, Parking Lamp, 12V 4W | Bulb, Parking Lamp, 12V 4W | 2 | $4.12 | Available to order | 2 |
| 18 | 3330420-T0301 Screw | Screw * PART NO LONGER AVAILABLE * | 1 | $0.52 | Obsolete | View Details |
| 19 | 3700010-T0301 Clip cable | Clip cable | 3 | $0.46 | Obsolete | View Details |
| 20 | 2700008-T0301 Headlight Assembly | Headlight Assembly UK, NZ, ZA, JP, CY, HK, MY | 1 | $366.78 | Obsolete | View Details |
| 20 | 2700009-T0301 Headlight Assembly | Headlight Assembly CH, DE, ES, PT, IT, NL, GR, BR, SE | 1 | $366.78 | Obsolete | View Details |
| 20 | T2700108 Headlight Assembly | Headlight Assembly US, AU, SG | 1 | $366.78 | Obsolete | View Details |
| 20 | T2700099 Headlight Assembly | Headlight Assembly France only | 1 | $366.78 | Obsolete | View Details |
