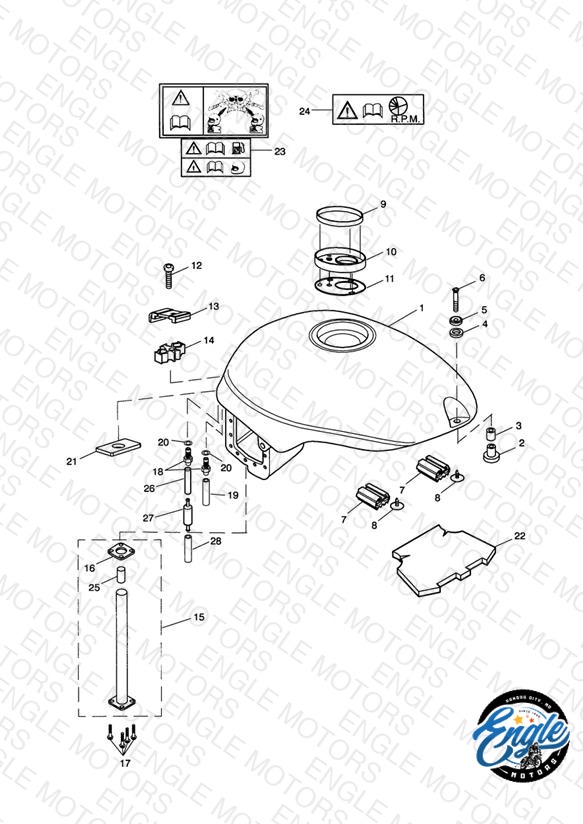

Fuel Tank and Fittings
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2400594-FD Fuel tank | Fuel tank » 186150; Acidic Yellow | 1 | $881.04 | Obsolete | View Details |
| 1 | T2400594-JD Fuel tank | Fuel tank » 161317; Caspian Blue | 1 | $881.04 | Obsolete | View Details |
| 1 | T2400594-MH Fuel tank | Fuel tank » 161317; Aluminium Silver | 1 | $775.00 | Obsolete | View Details |
| 1 | T2400594-HH Fuel tank | Fuel tank » 161317; Aston Green | 1 | $839.09 | Obsolete | View Details |
| 1 | T2400594-CM Fuel tank | Fuel tank Tornado Red; 186151 > | 1 | $775.00 | Obsolete | View Details |
| 1 | T2400594-PG Fuel tank | Fuel tank Jet Black; 186151 > | 1 | $775.00 | Obsolete | View Details |
| 1 | T2400594-FA Fuel tank | Fuel tank Racing Yellow; 186151 » 227651 | 1 | $775.00 | Obsolete | View Details |
| 1 | T2400594-FE Fuel Tank Assy | Fuel Tank Assy Scorched Yellow; 227652 > 238222 | 1 | $881.04 | Obsolete | View Details |
| 1 | T2400594-FG Fuel Tank Assy | Fuel Tank Assy Scorched Yellow; 238223 > | 1 | $881.04 | Obsolete | View Details |
| 2 | 2400042-T0301 Front Tank Retention Rubber | Front Tank Retention Rubber | 1 | $15.34 | Out of Stock | Notify Me |
| 3 | T3000024 Sleeve, M6 X 23 | Sleeve, M6 X 23 | 1 | $6.67 | Available to order | 1 |
| 4 | T3550061 Washer, M6x13 | Washer, M6x13 | 1 | $1.72 | Available to order | 1 |
| 5 | T3550344 Washer, Countersunk, M6 | Washer, Countersunk, M6 | 1 | $5.14 | Available to order | 1 |
| 6 | T3330876 Screw, C/Sunk, Skt, M6 x 40, SS | Screw, C/Sunk, Skt, M6 x 40, SS | 1 | $4.12 | Available to order | 1 |
| 7 | T2400642 Rubber Pad | Rubber Pad | 2 | $2.74 | Available to order | 2 |
| 8 | T3451260 Firtree, 5 x 11mm, Blk | Firtree, 5 x 11mm, Blk | 2 | $1.40 | Backorder — Late August 2026 | 2 |
| 9 | T2500464 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.01 | Out of Stock | Notify Me |
| 10 | T2500469 Neck, Fuel Filler | Neck, Fuel Filler | 1 | $18.50 | Available to order | 1 |
| 11 | T2500468 Seal, Base, Fuel Filler | Seal, Base, Fuel Filler | 1 | $7.14 | Available to order | 1 |
| 12 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv | 1 | $3.70 | Available to order | 1 |
| 13 | T2400865 Clamp plate | Clamp plate | 1 | $12.73 | Obsolete | View Details |
| 14 | T2400862 Fuel Tank Mount, Extrusion | Fuel Tank Mount, Extrusion | 1 | $20.89 | Available to order | 1 |
| 15 | T2404078 Fuel Level Sender, Spares | Fuel Level Sender, Spares | 1 | $140.69 | Available to order | 1 |
| 16 | T2401225 Seal, Fuel Level Sender, E25 | Seal, Fuel Level Sender, E25 | 1 | $10.34 | Available to order | 1 |
| 17 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 4 | $3.24 | Available to order | 4 |
| 18 | 2400043-T0301 Connector, Overflow Pipe | Connector, Overflow Pipe | 2 | $8.09 | Available to order | 2 |
| 19 | T3620221 Pipe, Fuel Tank Overflow | Pipe, Fuel Tank Overflow > 256465 | 2 | $2.00 | Available to order | 2 |
| 20 | 3550063-T0301 Washer, Rubber | Washer, Rubber | 2 | $1.21 | Available to order | 2 |
| 21 | T3020093 Mounting pad | Mounting pad | 1 | $3.03 | Obsolete | View Details |
| 22 | T2400591 Insulation | Insulation | 1 | $22.66 | Obsolete | View Details |
| 23 | T3900194 Label, Fuel Tank, White Text | Label, Fuel Tank, White Text | 1 | $5.69 | Available to order | 1 |
| 24 | T3900154 Label, Running In, White Text | Label, Running In, White Text | 1 | $2.85 | Available to order | 1 |
| 25 | T2400201 Float, Fuel Level Sender | Float, Fuel Level Sender | 1 | $22.45 | Obsolete | View Details |
| 26 | T3622503 Pipe, Fuel, 40mm | Pipe, Fuel, 40mm | 1 | $3.70 | Available to order | 1 |
| 27 | T2401136 Kit, Roll Over Valve | Kit, Roll Over Valve > 256465 | 1 | $35.09 | Obsolete | View Details |
| 27 | T2400074 Roll Over Valve | Roll Over Valve 256466 > 257170 | 1 | $40.30 | Available to order | 1 |
| 28 | T3620510 Swaged Hose | Swaged Hose 256466 > 257170 | 1 | $8.31 | Obsolete | View Details |
