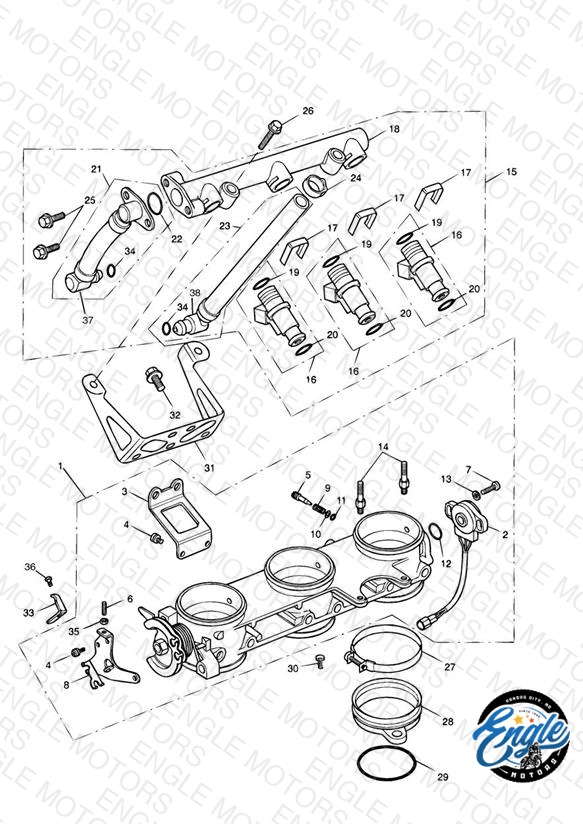

Throttles/Injectors and Fuel Rail > 207554
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240560 Throttle Body Assembly | Throttle Body Assembly | 1 | $2697.40 | Obsolete | View Details |
| 2 | T1240554 Throttle Position Sensor, Kit | Throttle Position Sensor, Kit | 1 | $169.19 | Out of Stock | Notify Me |
| 3 | T1240563 Bracket, Airbox Retaining | Bracket, Airbox Retaining | 1 | $17.07 | Obsolete | View Details |
| 4 | T1240564 Screw Bracket | Screw Bracket | 3 | $1.67 | Obsolete | View Details |
| 5 | T1240565 Screw, Air bleed | Screw, Air bleed | 3 | $3.27 | Obsolete | View Details |
| 6 | T1240566 Screw Throttle Stop | Screw Throttle Stop | 1 | $1.67 | Obsolete | View Details |
| 7 | T1240567 Screw Position Sensor | Screw Position Sensor | 2 | $0.75 | Available to order | 2 |
| 8 | T1240568 Bracket, Throttle Cable | Bracket, Throttle Cable | 1 | $15.49 | Obsolete | View Details |
| 9 | T1240569 Spring, Air Screw | Spring, Air Screw | 3 | $4.67 | Obsolete | View Details |
| 10 | T1240570 Washer, Air Screw | Washer, Air Screw | 3 | $1.82 | Obsolete | View Details |
| 11 | T1240571 O Ring, Air Screw | O Ring, Air Screw Upper | 3 | $3.39 | Available to order | 3 |
| 12 | T1240572 O Ring, Throttle Position Sensor | O Ring, Throttle Position Sensor Lower | 1 | $4.01 | Available to order | 1 |
| 13 | T1240578 Washer, Throttle Posn Sensor | Washer, Throttle Posn Sensor | 1 | $2.30 | Obsolete | View Details |
| 14 | T1240577 Stud, IAVC Fixing | Stud, IAVC Fixing | 2 | $3.41 | Obsolete | View Details |
| 15 | T1240893 Fuel rail | Fuel rail | 1 | $1263.29 | Obsolete | View Details |
| 16 | T1240892 Injector, Fuel, High Rate | Injector, Fuel, High Rate | 3 | $202.71 | Obsolete | View Details |
| 17 | T1240894 Clip, Injector | Clip, Injector | 3 | $2.05 | Obsolete | View Details |
| 18 | T1240810 Fuel rail | Fuel rail | 1 | $177.84 | Obsolete | View Details |
| 19 | T1245016 O Ring, Injector, Upper | O Ring, Injector, Upper Upper | 3 | $5.24 | Available to order | 3 |
| 20 | T1240355 Lower O Ring, Injector | Lower O Ring, Injector Lower | 3 | $2.95 | Available to order | 3 |
| 21 | T1240851 Fuel line hose | Fuel line hose Fuel feed | 1 | $108.34 | Obsolete | View Details |
| 22 | T3600053 O ring | O ring | 1 | $2.16 | Obsolete | View Details |
| 23 | T1240844 Hose assembly | Hose assembly Fuel Return | 1 | $111.51 | Obsolete | View Details |
| 24 | T3700261 CLIP, HOSE | CLIP, HOSE | 1 | $4.12 | Available to order | 1 |
| 25 | T1240816 Screw, Self Cutting | Screw, Self Cutting ** Part No Longer Available ** | 2 | $2.62 | Obsolete | View Details |
| 26 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.48 | Available to order | 2 |
| 27 | T3701055 Band Clamp, 55mm | Band Clamp, 55mm | 3 | $6.65 | Available to order | 3 |
| 28 | T1240602 Adaptor kit | Adaptor kit » ENG NO 151742 | 3 | $37.93 | Available to order | 3 |
| 28 | T1240604 Transition Piece | Transition Piece ENG NO 151743 » | 3 | $33.23 | Available to order | 3 |
| 29 | T1240557 O ring | O ring » ENG NO 151742 | 3 | $2.25 | Available to order | 3 |
| 29 | T3600082 O Ring, Transition Piece | O Ring, Transition Piece ENG NO 151743 » | 3 | $3.77 | Available to order | 3 |
| 30 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 6 | $2.63 | Available to order | 6 |
| 31 | T1240561 Bracket, Fuel Rail Assembly | Bracket, Fuel Rail Assembly | 1 | $10.34 | Available to order | 1 |
| 32 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 3 | $1.72 | Out of Stock | Notify Me |
| 33 | T1240579 BRACKET, RESTRICTOR | BRACKET, RESTRICTOR FR Only | 1 | $19.65 | Obsolete | View Details |
| 34 | T1240181 O ring | O ring | 2 | $6.07 | Available to order | 2 |
| 35 | T1240573 Nut, Throttle Stop | Nut, Throttle Stop | 1 | $1.61 | Obsolete | View Details |
| 36 | T3330055 Screw, Pozi, Pan HD,M4 x 0.7 x12 | Screw, Pozi, Pan HD,M4 x 0.7 x12 FR Only | 1 | $4.59 | Unavailable | View Details |
| 37 | T1241463 Kit, Connector, Fuel, 8.0, Nat | Kit, Connector, Fuel, 8.0, Nat | 1 | $38.22 | Available to order | 1 |
| 38 | T1241477 Fuel Connector Kit, 10, Red | Fuel Connector Kit, 10, Red | 1 | $38.22 | Available to order | 1 |
