Triumph Daytona 660 Handlebars, Top Yoke & Mirrors — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

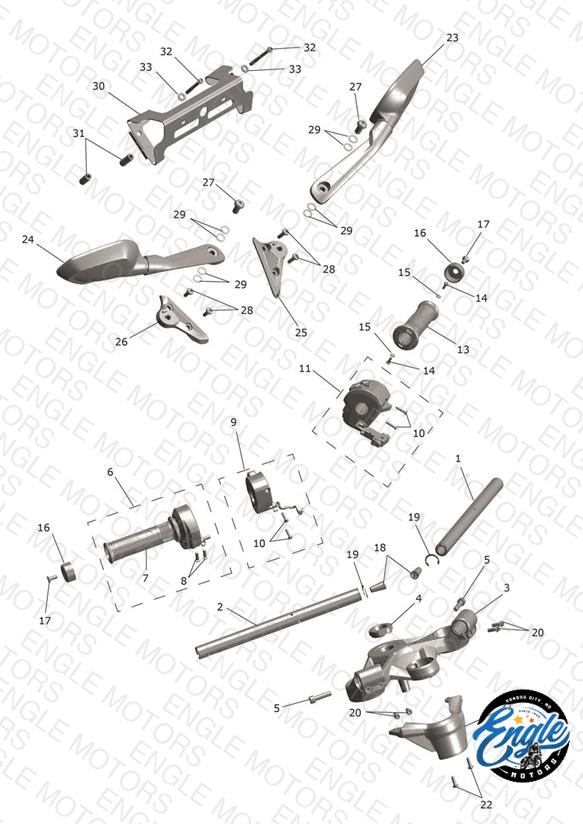

#	Part Number	Description	Qty	Price	Status
1	T2047348 Handlebar Tube, LH	Handlebar Tube, LH	1	$80.91	Available to order	1 Ships within 3–7 business days
2	T2047349 Handlebar Tube, RH	Handlebar Tube, RH	1	$80.91	Available to order	1 Ships within 3–7 business days
3	T2047322 Upper Yoke Assembly	Upper Yoke Assembly	1	$295.75	Available to order	1 Ships within 3–7 business days
4	T2041120 Nut, Upper Yoke, Black	Nut, Upper Yoke, Black	1	$24.43	Available to order	1 Ships within 3–7 business days
5	T3050323 Screw, Cap/Hd, M8 x 30, Slv	Screw, Cap/Hd, M8 x 30, Slv	2	$4.74	Available to order	2 Ships within 3–7 business days
6	T2046075 APS Sensor, Assy	APS Sensor, Assy	1	$266.39	Available to order	1 Ships within 3–7 business days
7	T2044707 Grip, RH	Grip, RH	1	$26.65	Available to order	1 Ships within 3–7 business days
8	T3050314 Bolt, M5 x 20	Bolt, M5 x 20	2	$7.02	Available to order	2 Ships within 3–7 business days
9	T2043616 Switchcube, RH	Switchcube, RH	1	$142.01	Available to order	1 Ships within 3–7 business days
10	T3331857 Screw, Torx, M4 x 0.7 x 18, Blk	Screw, Torx, M4 x 0.7 x 18, Blk	4	$1.78	Available to order	4 Ships within 3–7 business days
11	T2045644 Switchcube, LH	Switchcube, LH	1	$394.34	Out of Stock	Notify Me
13	T2045139 Grip, Handlebar, LH	Grip, Handlebar, LH	1	$26.65	Available to order	1 Ships within 3–7 business days
14	T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD	Screw, S/Tap, Pan/Hd, M4 x 10, HD	2	$7.14	Available to order	2 Ships within 3–7 business days
15	T3550500 Washer, 4.3 x 9.0 x 0.8	Washer, 4.3 x 9.0 x 0.8	2	$1.72	Available to order	2 Ships within 3–7 business days
16	T2046667 Finisher, Bar End, Black	Finisher, Bar End, Black	2	$32.60	Available to order	2 Ships within 3–7 business days
17	T3330959 Screw, Csk, M6 x 16. Slv, Enc	Screw, Csk, M6 x 16. Slv, Enc	2	$2.37	Available to order	2 Ships within 3–7 business days
18	T3450154 Bung, Tapered, EPDM	Bung, Tapered, EPDM	2	$3.77	Available to order	2 Ships within 3–7 business days
19	T3500178 Circlip, Crescent, 22 x 1.2	Circlip, Crescent, 22 x 1.2	2	$1.11	Available to order	2 Ships within 3–7 business days
20	T3200662 Bolt, TX, Lghtd, M6 x 16, Slv	Bolt, TX, Lghtd, M6 x 16, Slv	4	$2.67	Available to order	4 Ships within 3–7 business days
21	T2311274 Cover, Ignition Barrell Moulding	Cover, Ignition Barrell Moulding	1	$9.52	Available to order	1 Ships within 3–7 business days
22	T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc	Screw, Pan/Hd, Tx, M5 x 16, Enc	2	$0.97	Available to order	2 Ships within 3–7 business days
23	T2060154 Mirror, LH	Mirror, LH	1	$104.65	Available to order	1 Ships within 3–7 business days
24	T2060153 Mirror, RH	Mirror, RH	1	$104.65	Available to order	1 Ships within 3–7 business days
25	T2065556 Mirror Mount, LH	Mirror Mount, LH	1	$58.51	Available to order	1 Ships within 3–7 business days
26	T2065557 Mirror Mount, RH	Mirror Mount, RH	1	$58.51	Available to order	1 Ships within 3–7 business days
27	T3330376 Screw, Cap/Hd, M10 x 23, Enc	Screw, Cap/Hd, M10 x 23, Enc	2	$4.64	Available to order	2 Ships within 3–7 business days
28	T3330447 Screw, Pan/Hd, TX, M6 x 20, Blk	Screw, Pan/Hd, TX, M6 x 20, Blk Only 2 required for ID/IN	4	$1.56	Available to order	4 Ships within 3–7 business days
29	T3551409 Washer, 10.5 x 16.5 x 0.5	Washer, 10.5 x 16.5 x 0.5	8	$1.27	Available to order	8 Ships within 3–7 business days
30	T2068888 Number Plate, Front	Number Plate, Front ID/IN Only	1	$58.51	Out of Stock	Notify Me
31	T2062206 Spacer, Number Plate	Spacer, Number Plate ID/IN Only	2	$10.71	Out of Stock	Notify Me
32	T3200654 Bolt, TX, Lghtd, M6 x 60, Slv	Bolt, TX, Lghtd, M6 x 60, Slv ID/IN Only	2	$3.79	Available to order	2 Ships within 3–7 business days
33	T3555004 Washer, 6.4 x 14 x 1.6	Washer, 6.4 x 14 x 1.6 ID/IN Only	2	$1.40	Available to order	2 Ships within 3–7 business days
