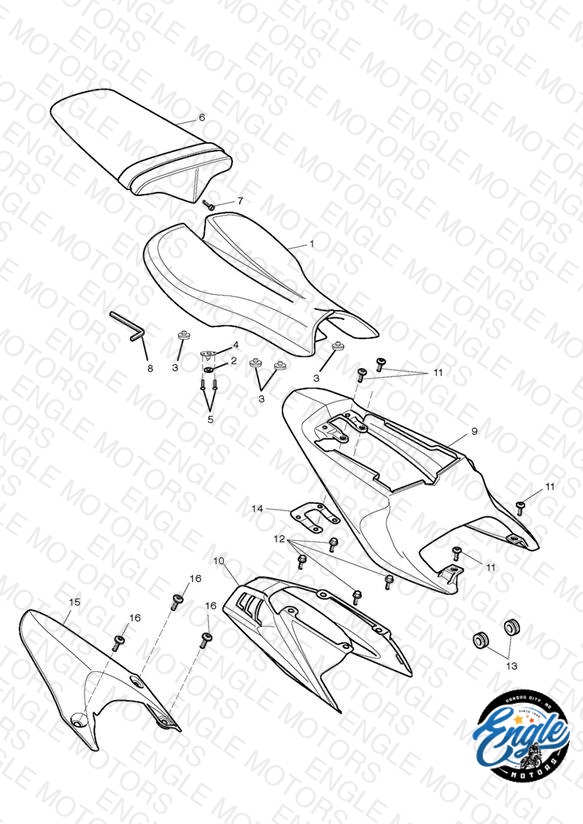

Loading schematic...
Rear Bodywork & Seat
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2306512 Seat, Rider, Formed | Seat, Rider, Formed | 1 | $245.24 | Available to order | 1 |
| 2 | T2307375 Spacer, Seat, Soft | Spacer, Seat, Soft | 1 | $2.85 | Available to order | 1 |
| 3 | T2307368 Rubber Foot, Seat | Rubber Foot, Seat | 4 | $3.70 | Available to order | 4 |
| 4 | T2307365 Bayonet, Seat | Bayonet, Seat | 1 | $16.15 | Available to order | 1 |
| 5 | T2307377 Pop Rivet, Dia 4.8 | Pop Rivet, Dia 4.8 | 2 | $1.13 | Available to order | 2 |
| 6 | T2306505 Seat, Pillion | Seat, Pillion | 1 | $249.05 | Available to order | 1 |
| 7 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.51 | Available to order | 1 |
| 8 | T2300634 Allen Key, 5mm | Allen Key, 5mm | 1 | $4.92 | Available to order | 1 |
| 9 | T2307566-CM Rear Panel | Rear Panel Tornado Red > 317417 | 1 | $378.07 | Obsolete | View Details |
| 9 | T2307566-FG Rear Panel | Rear Panel Scorched Yellow > 317417 | 1 | $537.47 | Available to order | 1 |
| 9 | T2307566-LC Rear Panel | Rear Panel Graphite > 317417 | 1 | $475.29 | Available to order | 1 |
| 9 | T2307507-PG Rear Panel | Rear Panel Jet Black > 317417 | 1 | $537.47 | Available to order | 1 |
| 9 | T2307573-CM Rear Panel | Rear Panel Tornado Red - 317418 > | 1 | $537.47 | Available to order | 1 |
| 9 | T2307573-PG Rear Panel | Rear Panel Jet Black - 317418 > | 1 | $466.48 | Available to order | 1 |
| 9 | T2307566-JO Rear Panel | Rear Panel Neon Blue - 317418 > | 1 | $422.71 | Obsolete | View Details |
| 9 | T2307573-PR Rear Panel | Rear Panel Phantom Blk Special Edition | 1 | $396.45 | Obsolete | View Details |
| 10 | T2307480-GH Heat Shield | Heat Shield Bronze | 1 | $78.13 | Obsolete | View Details |
| 11 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 4 | $5.88 | Available to order | 4 |
| 12 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 4 | $5.30 | Available to order | 4 |
| 13 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $1.91 | Available to order | 2 |
| 14 | T2307552 Bracket, Rear Panel Support | Bracket, Rear Panel Support | 1 | $8.93 | Available to order | 1 |
| 15 | T2307500 Rear Hugger | Rear Hugger | 1 | $169.19 | Available to order | 1 |
| 16 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 3 | $6.73 | Available to order | 3 |
