Loading schematic...

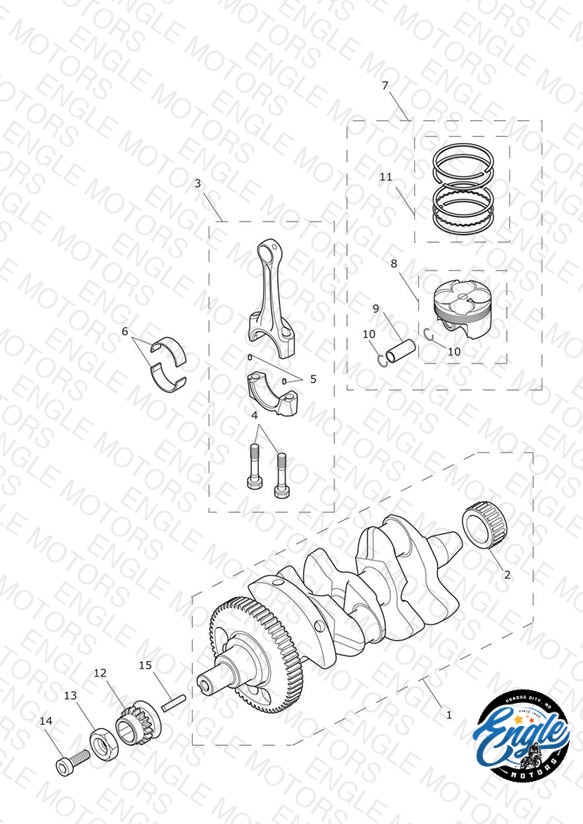

Crankshaft, Connecting Rods, Pistons & Liners
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1101082 Crankshaft Assy | Crankshaft Assy | 1 | $1936.44 | Available to order | 1 |
| 2 | T3800120 Bearing, 28 x 41 x 21 Wide | Bearing, 28 x 41 x 21 Wide | 1 | $81.75 | Available to order | 1 |
| 3 | T1110430 Conrod Assy | Conrod Assy | 3 | $264.24 | Available to order | 3 |
| 4 | T1110451 Bolt, M8 x 37 x 0.75 | Bolt, M8 x 37 x 0.75 | 6 | $20.81 | Backorder — Early August 2026 | 6 |
| 5 | T1110452 Dowel, 3 x 5 | Dowel, 3 x 5 | 6 | $2.85 | Available to order | 6 |
| 6 | T1112001 Bearing Shell | Bearing Shell White | — | $12.46 | Available to order | 1 |
| 6 | T1112002 Bearing Shell | Bearing Shell Red | — | $12.46 | Backorder — Late July 2026 | 1 |
| 7 | T1126010 Piston Assembly | Piston Assembly | 3 | $252.83 | Available to order | 3 |
| 8 | T1124680 Kit, Piston, Rings & Clips | Kit, Piston, Rings & Clips > Eng No 678752 | 3 | $132.63 | Obsolete | View Details |
| 8 | T1126014 Piston & Circlip Assy | Piston & Circlip Assy Eng No 678753 > | 3 | $249.05 | Available to order | 3 |
| 9 | T1120599 Gudgeon Pin, Dia 16.0 | Gudgeon Pin, Dia 16.0 | 3 | $40.04 | Out of Stock | Notify Me |
| 10 | T1120581 Circlip | Circlip | 6 | $2.25 | Available to order | 6 |
| 11 | T1120584 Piston Ring Set, Dia 76.0 | Piston Ring Set, Dia 76.0 > Eng No 678752 | 3 | $115.97 | Available to order | 3 |
| 11 | T1126012 Piston Ring Set, Dia 76.0 | Piston Ring Set, Dia 76.0 Eng No 678753 > | 3 | $115.97 | Available to order | 3 |
| 12 | T1140501 Sprocket, Camdrive, 17T | Sprocket, Camdrive, 17T | 1 | $104.56 | Available to order | 1 |
| 13 | T1100407 Spacer, Hex | Spacer, Hex | 1 | $13.77 | Available to order | 1 |
| 14 | T3050161 Screw, Cap/HD. M8 x 20, Raw | Screw, Cap/HD. M8 x 20, Raw | 1 | $0.97 | Backorder — Early August 2026 | 1 |
| 15 | T1100808 Key, Crankshaft | Key, Crankshaft | 1 | $13.61 | Available to order | 1 |
