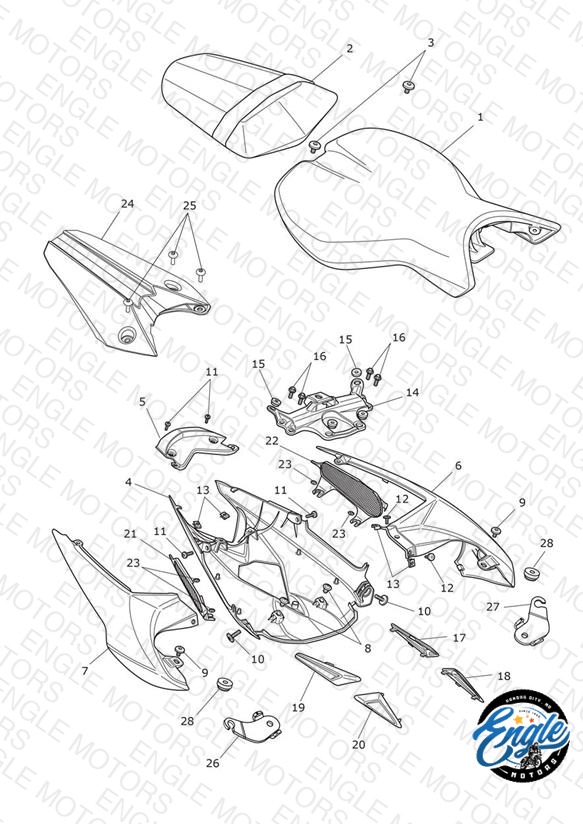

Rear Bodywork & Seat
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2301107 Rider Seat | Rider Seat | 1 | $258.54 | Available to order | 1 |
| 1 | T2309982 Rider Seat, Comfort | Rider Seat, Comfort | 1 | $23.55 | Obsolete | View Details |
| 2 | T2301108 Pillion Seat | Pillion Seat | 1 | $249.05 | Out of Stock | Notify Me |
| 3 | T3330858 Bolt, But/Hd, M6 x 15, Shld, Slv | Bolt, But/Hd, M6 x 15, Shld, Slv | 2 | $2.55 | Available to order | 2 |
| 4 | T2309584-NW Rear Bodywork, Lower | Rear Bodywork, Lower Crystal White > 713760 | 1 | $273.77 | Available to order | 1 |
| 4 | T2309584-PR Rear Bodywork, Lower | Rear Bodywork, Lower Phantom Black > 657136 | 1 | $273.77 | Available to order | 1 |
| 4 | T2309584-CW Rear Bodywork, Lower | Rear Bodywork, Lower Diablo Red > 713760 | 1 | $336.75 | Available to order | 1 |
| 4 | T2309584-PG Rear Bodywork, Lower | Rear Bodywork, Lower Jet Black - 713761 > | 1 | $336.75 | Available to order | 1 |
| 4 | T2309584-MS Rear Bodywork, Lower | Rear Bodywork, Lower Matt Aluminium Silver - 713761 > | 1 | $336.75 | Available to order | 1 |
| 5 | T2309585-NW Rear Bodywork, Upper | Rear Bodywork, Upper Crystal White | 1 | $208.70 | Available to order | 1 |
| 5 | T2309585-PR Rear Bodywork, Upper | Rear Bodywork, Upper Phantom Black > 657136 | 1 | $208.70 | Available to order | 1 |
| 5 | T2309585-CW Rear Bodywork, Upper | Rear Bodywork, Upper Diablo Red | 1 | $208.70 | Available to order | 1 |
| 6 | T2309566-NW Rear Bodywork, LH | Rear Bodywork, LH Crystal White > 713760 | 1 | $336.75 | Backorder — Late July 2026 | 1 |
| 6 | T2309566-PR Rear Bodywork, LH | Rear Bodywork, LH Phantom Black > 657136 | 1 | $336.75 | Available to order | 1 |
| 6 | T2309566-CW Rear Bodywork, LH | Rear Bodywork, LH Diablo Red > 713760 | 1 | $336.75 | Available to order | 1 |
| 6 | T2303941-NW Rear Bodywork, LH | Rear Bodywork, LH Crystal White - 713761 > | 1 | $336.75 | Available to order | 1 |
| 6 | T2303941-CW Rear Bodywork, LH | Rear Bodywork, LH Diablo Red - 713761 > | 1 | $336.75 | Available to order | 1 |
| 7 | T2309567-NW Rear Bodywork, RH | Rear Bodywork, RH Crystal White > 713760 | 1 | $265.83 | Available to order | 1 |
| 7 | T2309567-PR Rear Bodywork, RH | Rear Bodywork, RH Phantom Black > 657136 | 1 | $336.75 | Backorder — Late July 2026 | 1 |
| 7 | T2309567-CW Rear Bodywork, RH | Rear Bodywork, RH Diablo Red > 713760 | 1 | $336.75 | Available to order | 1 |
| 7 | T2303942-NW Rear Bodywork, RH | Rear Bodywork, RH Crystal White - 713761 > | 1 | $336.75 | Out of Stock | Notify Me |
| 7 | T2303942-CW Rear Bodywork, RH | Rear Bodywork, RH Diablo Red - 713761 > | 1 | $336.75 | Out of Stock | Notify Me |
| 8 | T3701121 Rivet, Plastic, Screw Type | Rivet, Plastic, Screw Type | 2 | $1.21 | Available to order | 2 |
| 9 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 2 | $4.42 | Available to order | 2 |
| 10 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.39 | Available to order | 2 |
| 11 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 4 | $2.63 | Available to order | 4 |
| 12 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 2 | $5.02 | Available to order | 2 |
| 13 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $3.39 | Backorder — Late August 2026 | 4 |
| 14 | T2070164 Front Bridge | Front Bridge | 1 | $29.75 | Available to order | 1 |
| 15 | T2307369 Rubber Foot, 4mm Deep | Rubber Foot, 4mm Deep | 4 | $3.70 | Available to order | 4 |
| 17 | T2301457 Rear Frame Infill, LH, Rear | Rear Frame Infill, LH, Rear | 1 | $25.96 | Available to order | 1 |
| 18 | T2301459 Rear Frame Infill, LH, Front | Rear Frame Infill, LH, Front | 1 | $25.96 | Available to order | 1 |
| 19 | T2301466 Rear Frame Infill, RH, Rear | Rear Frame Infill, RH, Rear | 1 | $25.96 | Available to order | 1 |
| 20 | T2301478 Rear Frame Infill, RH, Front | Rear Frame Infill, RH, Front | 1 | $25.96 | Available to order | 1 |
| 21 | T2309560 Infill, RH, Rear Bodywork | Infill, RH, Rear Bodywork | 1 | $28.14 | Available to order | 1 |
| 22 | T2309570 Infill, LH, Rear Bodywork | Infill, LH, Rear Bodywork | 1 | $28.14 | Available to order | 1 |
| 23 | T3550253 Washer, Dia 5 mm, Retaining | Washer, Dia 5 mm, Retaining | 4 | $0.97 | Available to order | 4 |
| 24 | T2309465 Rear Hugger | Rear Hugger | 1 | $174.91 | Available to order | 1 |
| 25 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 3 | $6.73 | Available to order | 3 |
| 26 | T2309653 Bracket, Support, RH | Bracket, Support, RH | 1 | $8.93 | Available to order | 1 |
| 27 | T2309652 Bracket, Support, LH | Bracket, Support, LH | 1 | $8.93 | Available to order | 1 |
