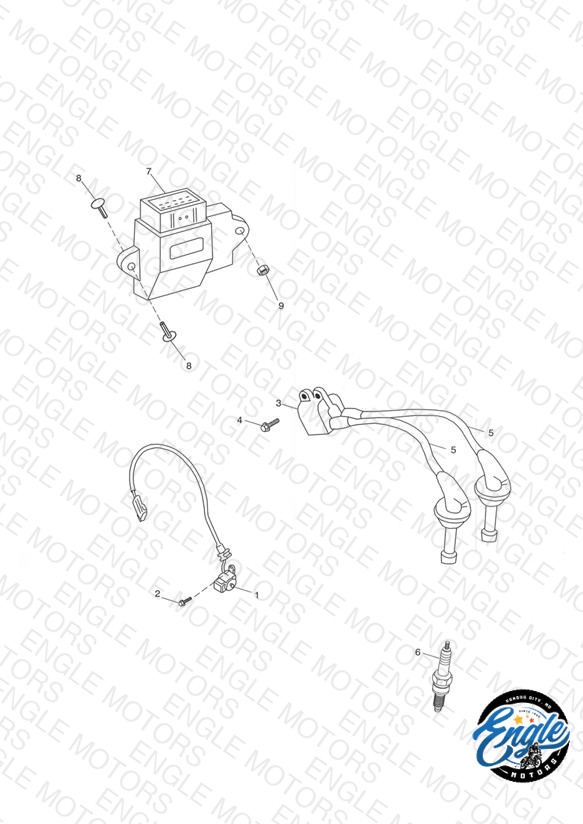

Ignition System - Bonneville T100
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1290131 Crankshaft Position Sensor/Ignition Pick-Up | Crankshaft Position Sensor/Ignition Pick-Up | 1 | $106.47 | Available to order | 1 |
| 2 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 3 | T1290048 Ignition coil (4 Cyl) | Ignition coil (4 Cyl) | 1 | $263.76 | Available to order | 1 |
| 4 | T3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv | Screw, Pan/Hd, Tx, M5 x 20, Slv | 2 | $2.63 | Available to order | 2 |
| 5 | T1290000 Ignition cable, 2 Cyl | Ignition cable, 2 Cyl | 2 | $92.25 | Available to order | 2 |
| 6 | T1290024 Spark Plug, DPR8EA-9 | Spark Plug, DPR8EA-9 DPR8EA-9 | 2 | $7.34 | Available to order | 2 |
| 7 | T1290041 Ignition Timing Control unit | Ignition Timing Control unit > 210261 | 1 | $492.91 | Available to order | 1 |
| 7 | T1292365 Ignition Ctrl Unit, 8000 RPM | Ignition Ctrl Unit, 8000 RPM 210262 > 317246 | 1 | $518.86 | Out of Stock | Notify Me |
| 7 | T1292950 Igniter, Air Control Valve, 360 | Igniter, Air Control Valve, 360 317247 > | 1 | $492.91 | Backorder — Late July 2026 | 1 |
| 8 | T3300006 Rivet, Barbed, 12.7-20.6 mm | Rivet, Barbed, 12.7-20.6 mm | 2 | $1.06 | Available to order | 2 |
| 9 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc | 1 | $1.13 | Available to order | 1 |
