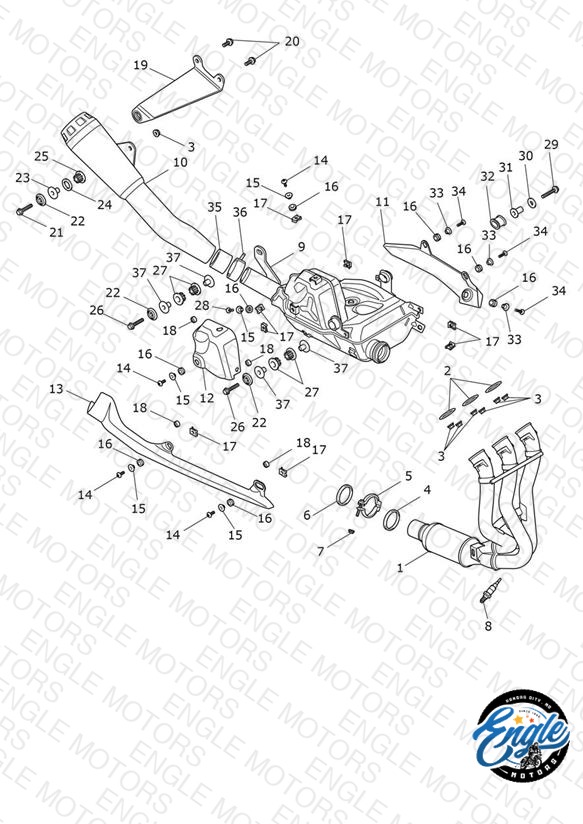

Loading schematic...
Exhaust System
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2205765 Header Assembly | Header Assembly All Except AU, NZ & US | 1 | $1153.04 | Out of Stock | Notify Me |
| 1 | T2205799 Header Assembly | Header Assembly AU, NZ, US Only | 1 | $1113.19 | Out of Stock | Notify Me |
| 2 | T2200854 Header Gasket | Header Gasket | 3 | $7.31 | Available to order | 3 |
| 3 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 6 | $2.45 | Available to order | 6 |
| 4 | T2202044 Sleeve, Exhaust, Flanged | Sleeve, Exhaust, Flanged | 1 | $2.48 | Backorder — Late July 2026 | 1 |
| 5 | T2202039 Clamp, Exhaust | Clamp, Exhaust | 1 | $21.86 | Available to order | 1 |
| 6 | T2202043 Gasket, Exhaust | Gasket, Exhaust | 1 | $13.89 | Available to order | 1 |
| 7 | T3350067 Nut, Flanged, M6 | Nut, Flanged, M6 | 1 | $1.40 | Available to order | 1 |
| 8 | T2207898 Sensor, Oxygen, Exh, M12, 500mm | Sensor, Oxygen, Exh, M12, 500mm | 1 | $250.98 | Available to order | 1 |
| 9 | T2206765 Primary Silencer Assy | Primary Silencer Assy | 1 | $698.98 | Out of Stock | Notify Me |
| 10 | T2206775 Secondary Silencer Assy | Secondary Silencer Assy | 1 | $1337.57 | Available to order | 1 |
| 11 | T2202083 Heat Shield, Silencer, LHS | Heat Shield, Silencer, LHS | 1 | $91.26 | Backorder — Late July 2026 | 1 |
| 12 | T2202085 Heat Shield, Control Plate | Heat Shield, Control Plate | 1 | $70.35 | Available to order | 1 |
| 13 | T2206675 Heat Shield, Silencer, RH | Heat Shield, Silencer, RH | 1 | $102.48 | Available to order | 1 |
| 14 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 4 | $6.73 | Available to order | 4 |
| 15 | T3010126 Flanged Sleeve, M5, Slv | Flanged Sleeve, M5, Slv | 5 | $2.17 | Available to order | 5 |
| 16 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 8 | $2.10 | Available to order | 8 |
| 17 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 8 | $2.48 | Available to order | 8 |
| 18 | T3020162 Rubber Foot, Dia 14x6 | Rubber Foot, Dia 14x6 | 4 | $2.25 | Available to order | 4 |
| 19 | T2202794 Bracket, Secondary Silencer | Bracket, Secondary Silencer | 1 | $58.71 | Available to order | 1 |
| 20 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 2 | $1.62 | Backorder — Early August 2026 | 2 |
| 21 | T3200601 Bolt, HHF, M8 x 40, Slv | Bolt, HHF, M8 x 40, Slv | 1 | $3.04 | Available to order | 1 |
| 22 | T2205043 Finisher Bolt, Silencer | Finisher Bolt, Silencer | 3 | $9.97 | Available to order | 3 |
| 23 | T3010096 Flanged Sleeve, M8 x 12.8 x 17.2 | Flanged Sleeve, M8 x 12.8 x 17.2 | 1 | $11.88 | Available to order | 1 |
| 24 | T3551553 Washer, Rubber | Washer, Rubber | 1 | $7.14 | Available to order | 1 |
| 25 | T2200213 Bush, Rubber | Bush, Rubber | 1 | $3.17 | Available to order | 1 |
| 26 | T3202307 Bolt, HHF, M8 x 50, Slv | Bolt, HHF, M8 x 50, Slv | 2 | $6.65 | Available to order | 2 |
| 27 | T2200622 Bush, Rubber, M8 | Bush, Rubber, M8 | 4 | $2.25 | Available to order | 4 |
| 28 | T3330945 Screw, But/Hd, M5 x 16, Blk | Screw, But/Hd, M5 x 16, Blk | 1 | $8.46 | Available to order | 1 |
| 29 | T3205109 Bolt, HHF, Lghtd, M8 x 45, Slv | Bolt, HHF, Lghtd, M8 x 45, Slv | 1 | $5.12 | Available to order | 1 |
| 30 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 1 | $2.74 | Available to order | 1 |
| 31 | T3010212 Flanged Sleeve, M8 x 26.6 | Flanged Sleeve, M8 x 26.6 | 1 | $2.48 | Available to order | 1 |
| 32 | T2200912 Rubber Grommet, 7.86mm | Rubber Grommet, 7.86mm | 1 | $3.17 | Available to order | 1 |
| 33 | T3010124 Flange Sleeve, M5 | Flange Sleeve, M5 | 3 | $2.17 | Available to order | 3 |
| 34 | T3338989 Screw, But/Hd, M5 x 20, S/S | Screw, But/Hd, M5 x 20, S/S | 3 | $6.77 | Available to order | 3 |
| 35 | T2207071 Gasket, Exhaust | Gasket, Exhaust | 1 | $12.51 | Backorder — Late August 2026 | 1 |
| 36 | T2206078 Clamp, Exhaust, Dia 52-54mm | Clamp, Exhaust, Dia 52-54mm | 1 | $20.89 | Available to order | 1 |
| 37 | T3010705 Flanged Sleeve, 8.4 x 12.4 x 13.8 | Flanged Sleeve, 8.4 x 12.4 x 13.8 | 4 | $10.44 | Available to order | 4 |
