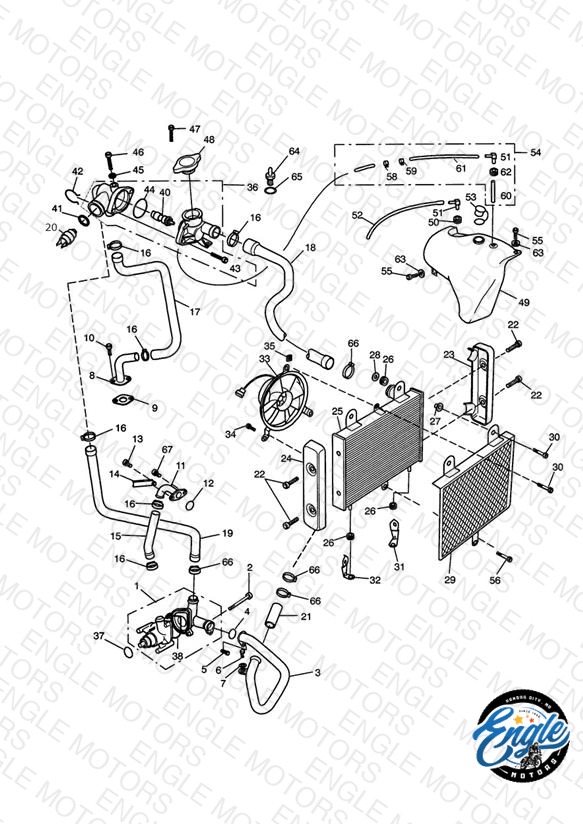

Triumph Legend TT Cooling System — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2100100 Water pump assy	Water pump assy	1	$336.22	Available to order	1 Ships within 3–7 business days
2	T3202065 Bolt	Bolt M6 x 65mm	2	$2.99	Obsolete	View Details
3	T2100335 Water pipe	Water pipe Lower	1	$42.87	Obsolete	View Details
4	T3600036 O ring	O ring	1	$1.40	Available to order	1 Ships within 3–7 business days
5	T3203115 Bolt, RHHF, M6x1.0x12, S/S	Bolt, RHHF, M6x1.0x12, S/S	3	$3.17	Available to order	3 Ships within 3–7 business days
6	T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv	Bolt, HHF, Lghtd, M8 x 30, Slv	1	$1.21	Available to order	1 Ships within 3–7 business days
7	3550030-T0301 Washer fibre	Washer fibre PART NO LONGER AVAILABLE	1	$0.51	Obsolete	View Details
8	T2100343 Outlet pipe	Outlet pipe Chrome	1	$24.89	Obsolete	View Details
9	T2100054 Gasket, Cyl Head Outlet	Gasket, Cyl Head Outlet	1	$1.50	Available to order	1 Ships within 3–7 business days
10	T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv	Bolt, HHF, Lghtd, M6 x 16, Slv	2	$3.50	Available to order	2 Ships within 3–7 business days
11	T2102146 Elbow	Elbow » ENG NO 127486	1	$28.33	Obsolete	View Details
11	T2102127 Elbow	Elbow ENG NO 127487 »	1	$12.87	Obsolete	View Details
12	T2102143 Gasket	Gasket » ENG NO 127486	1	$1.40	Available to order	1 Ships within 3–7 business days
12	T3600185 O ring	O ring ENG NO 127487 »	1	$2.63	Available to order	1 Ships within 3–7 business days
13	T3331234 Screw, Torx, P/H, M6 x 20, Slv	Screw, Torx, P/H, M6 x 20, Slv	1	$5.30	Available to order	1 Ships within 3–7 business days
14	T2100049 Bracket	Bracket » ENG NO 127486	1	$2.10	Available to order	1 Ships within 3–7 business days
14	T2100053 Bracket	Bracket ENG NO 127487 »	1	$3.52	Obsolete	View Details
15	T2100110 Hose outlet	Hose outlet	1	$23.69	Available to order	1 Ships within 3–7 business days
16	T2102242 Hose Clip, 23-35, Bright, Ss	Hose Clip, 23-35, Bright, Ss	6	$7.73	Out of Stock	Notify Me
17	T2100311 Hose	Hose	1	$21.75	Backorder — Early August 2026	1
18	T2100321 Hose top	Hose top	1	$55.12	Out of Stock	Notify Me
19	T2100333 Hose	Hose	1	$21.75	Available to order	1 Ships within 3–7 business days
20	T2100789 Switch fan	Switch fan	1	$98.85	Available to order	1 Ships within 3–7 business days
21	T2100351 Hose bottom	Hose bottom	1	$16.15	Available to order	1 Ships within 3–7 business days
22	T3330726 Screw, Btn/Hd, M6 x 12, Slv	Screw, Btn/Hd, M6 x 12, Slv M6 x 10mm	4	$4.42	Available to order	4 Ships within 3–7 business days
23	T2100171 Cover lh	Cover lh	1	$122.10	Obsolete	View Details
24	T2100161 Cover rh	Cover rh	1	$119.67	Obsolete	View Details
25	T2102137 Radiator	Radiator » 79226 - Part No Longer Available	1	$634.02	Obsolete	View Details
25	T2102135 Radiator	Radiator 79227 »	1	$634.02	Obsolete	View Details
26	T3020300 Grommet, Dia 19.5 x 4 Panel	Grommet, Dia 19.5 x 4 Panel	4	$3.39	Available to order	4 Ships within 3–7 business days
27	T3010262 Flanged sleeve	Flanged sleeve	2	$4.93	Obsolete	View Details
28	T3555033 Washer, 8.4 x 24 x 2	Washer, 8.4 x 24 x 2	2	$2.74	Available to order	2 Ships within 3–7 business days
29	T2102134 Stone guard	Stone guard	1	$28.17	Obsolete	View Details
30	T3330540 Bolt	Bolt M8 x 30mm	2	$5.30	Obsolete	View Details
31	T2101314 Radiator bracket	Radiator bracket LH	1	$4.85	Available to order	1 Ships within 3–7 business days
32	T2101315 Radiator bracket	Radiator bracket RH	1	$4.85	Out of Stock	Notify Me
33	2101202-T0301 Fan assembly	Fan assembly	1	$396.11	Available to order	1 Ships within 3–7 business days
34	T3331517 Screw, P/HD Tx, Shld, M6 x 16, S	Screw, P/HD Tx, Shld, M6 x 16, S	3	$0.97	Available to order	3 Ships within 3–7 business days
35	T3350111 Nut, Captive, M6	Nut, Captive, M6	1	$4.92	Backorder — Early August 2026	1
36	T2100080 Thermostat housing	Thermostat housing	1	$131.04	Obsolete	View Details
37	3600160-T0301 O Ring, Water Pump	O Ring, Water Pump	1	$9.02	Available to order	1 Ships within 3–7 business days
38	T3600230 Seal	Seal	1	$5.78	Available to order	1 Ships within 3–7 business days
40	T2102131 Thermostat	Thermostat	1	$41.21	Obsolete	View Details
41	T3600210 O ring	O ring	1	$1.40	Available to order	1 Ships within 3–7 business days
42	T2100272 Retainer	Retainer	1	$1.01	Obsolete	View Details
43	T3331102 Bolt, HHF, M6 X 25, S/S	Bolt, HHF, M6 X 25, S/S Part No Longer Available	2	$1.74	Obsolete	View Details
44	T3600200 O ring	O ring	1	$3.70	Available to order	1 Ships within 3–7 business days
45	T3550542 Washer, Cu, OD12.5 x Id6.4	Washer, Cu, OD12.5 x Id6.4	1	$1.05	Available to order	1 Ships within 3–7 business days
46	T3150007 Bolt	Bolt M6 x 10mm	1	$0.58	Obsolete	View Details
47	T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv	Screw, Pan/Hd, Tx, M6 x 12, Slv	2	$0.97	Available to order	2 Ships within 3–7 business days
48	T2100074 Cap Assy	Cap Assy	1	$26.62	Available to order	1 Ships within 3–7 business days
49	T2100450 Expansion tank	Expansion tank	1	$79.84	Available to order	1 Ships within 3–7 business days
50	T3450035 Grommet, Dia 8, Dia 12.5, 3	Grommet, Dia 8, Dia 12.5, 3	1	$2.10	Available to order	1 Ships within 3–7 business days
51	T2100405 Elbow, ID 8.0 Tube	Elbow, ID 8.0 Tube	2	$1.40	Available to order	2 Ships within 3–7 business days
52	T3620300 Overflow pipe	Overflow pipe	1	$13.18	Available to order	1 Ships within 3–7 business days
53	T2100997 Cap, Expansion Tank	Cap, Expansion Tank Expansion tank	1	$9.52	Available to order	1 Ships within 3–7 business days
54	T3620235 Pipe	Pipe	1	$3.20	Obsolete	View Details
55	T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv	Screw, Tx, Pan/Hd, M6 x 16, Slv	2	$2.63	Available to order	2 Ships within 3–7 business days
56	T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv	Screw, Pan/HD, Tx, M6 x 40, Slv	1	$3.70	Available to order	1 Ships within 3–7 business days
58	T3700077 Clip, 10.5 Rer Oetiker	Clip, 10.5 Rer Oetiker	1	$4.01	Available to order	1 Ships within 3–7 business days
59	T3700440 Clip, Hose, 11-12.5mm	Clip, Hose, 11-12.5mm	1	$5.42	Available to order	1 Ships within 3–7 business days
60	T3620317 Pipe	Pipe	1	$2.00	Available to order	1 Ships within 3–7 business days
61	T3620348 Pipe, Expansion Tank To T.stat	Pipe, Expansion Tank To T.stat	1	$9.02	Available to order	1 Ships within 3–7 business days
62	3450075-T0301 Grommet	Grommet	1	$1.12	Obsolete	View Details
63	T3551283 Washer, M10, 10.5x18x1.6, Slv	Washer, M10, 10.5x18x1.6, Slv	2	$2.00	Available to order	2 Ships within 3–7 business days
64	2102150-T0301 Sensor temperature	Sensor temperature	1	$40.87	Available to order	1 Ships within 3–7 business days
65	3550020-T0301 Sealing Washer, M10	Sealing Washer, M10	1	$0.90	Obsolete	View Details
66	T2102113 Clip, Hose, 20-32, Bright, Ss	Clip, Hose, 20-32, Bright, Ss	4	$7.46	Available to order	4 Ships within 3–7 business days
68	T4007777 Coolant, OAT, Premix, D2053,12 x 1L	Coolant, OAT, Premix, D2053,12 x 1L Not Illustrated	—	$187.12	Available to order	1 Ships within 3–7 business days
